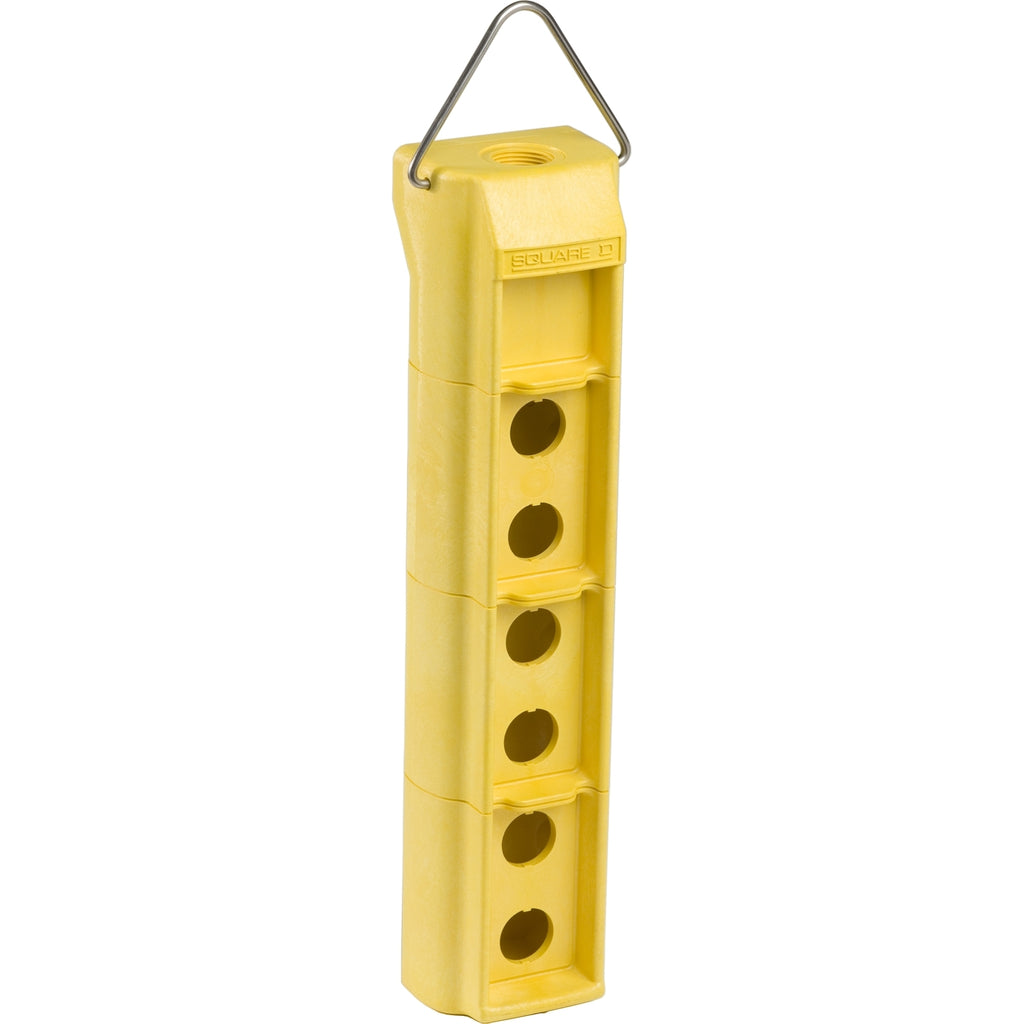

9001SKYP6 - Schneider Electric - Square D Empty Enclosure Control Station Harmony 9001K/SK Plastic 6 Cut-outs
This pendant empty enclosure provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes It is impact resistant, dust resistant, water resistant, corrosion and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Empty enclosure |
| Device short name |
9001SK |
| Number of cut-out |
6 cut-outs |
| Cable entry |
Conduit entries for 1"-11.5 NPT |
Complementary
| Product destination |
For Ø 30 mm control and signalling units |
| Material |
Plastic |
Environment
| Ambient Air Temperature for Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
Ordering and shipping details
| Category |
US10CS121431 |
| Discount Schedule |
0CS1 |
| GTIN |
785901524649 |
| Returnability |
Yes |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
4.02 in (10.2 cm) |
| Package 1 Width |
5.3 in (13.5 cm) |
| Package 1 Length |
21.9 in (55.6 cm) |
| Package weight(Lbs) |
3.24 lb(US) (1.47 kg) |
