9001W31 - Schneider Electric - Square D Indicator Light Unit

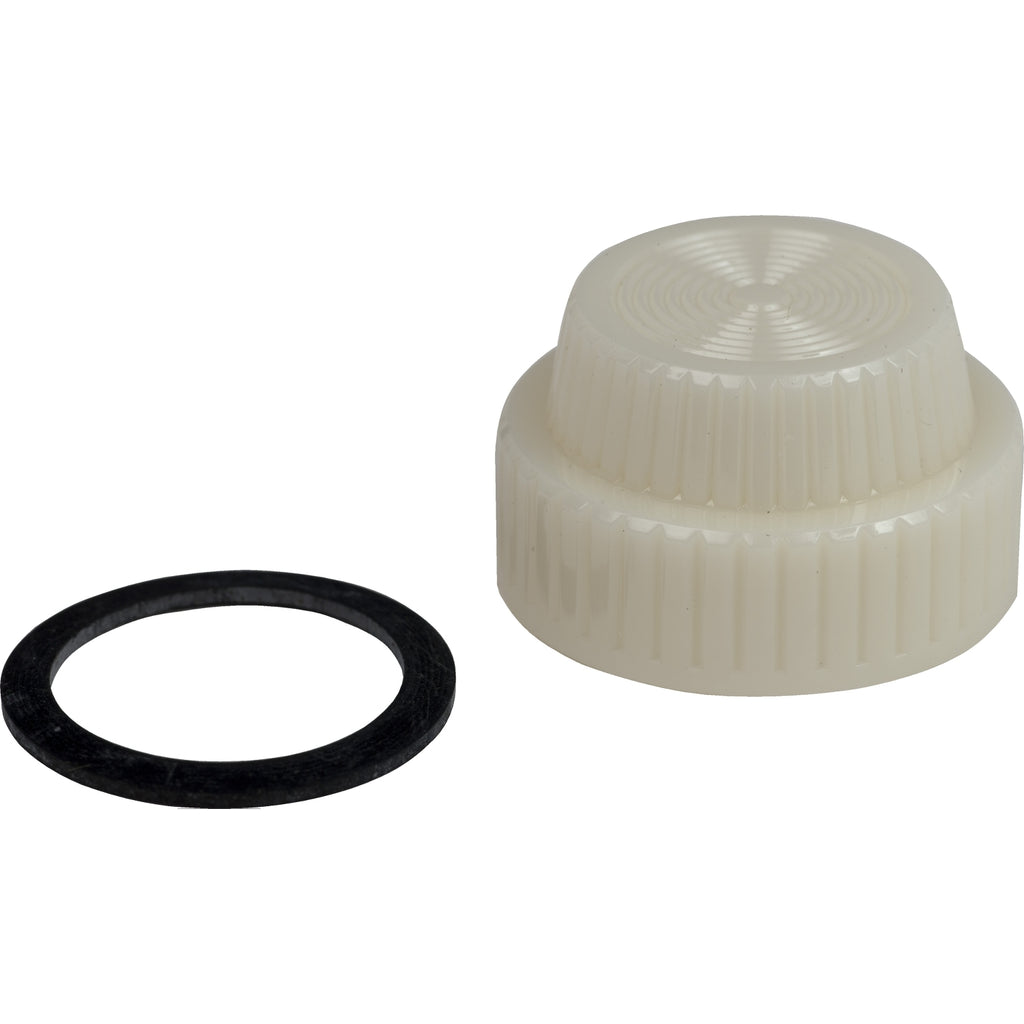

The Schneider Electric 9001W31 is a 30mm white polycarbonate Fresnel lens designed for use with the Harmony 9001K and 9001SK series pilot lights. This lens features a grooved surface that enhances light diffusion, providing clear and uniform illumination in various industrial applications.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Lens |
| Accessory / Separate Part Type |
Lens cap |
| Accessory / separate part category |
Spare parts |
| Accessory / separate part destination |
Pilot light |
Complementary
| Lens type |
Fresnel |
| Mounting diameter |
1.2 in (30 mm) |
| Cap/operator or lens colour |
White |
| Net Weight |
0.011 lb(US) (0.005 kg) |
Ordering and shipping details
| Category |
US10CS121433 |
| Discount Schedule |
0CS1 |
| GTIN |
785901056089 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.60 in (1.524 cm) |
| Package 1 Width |
1.00 in (2.540 cm) |
| Package 1 Length |
1.00 in (2.540 cm) |
| Package 1 Weight |
0.176 oz (5.000 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
24 |
| Package 2 Height |
5.91 in (15.000 cm) |
| Package 2 Width |
5.91 in (15.000 cm) |
| Package 2 Length |
15.75 in (40.000 cm) |
| Package 2 Weight |
10.864 oz (308.000 g) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
768 |
| Package 3 Height |
29.53 in (75.000 cm) |
| Package 3 Width |
31.50 in (80.000 cm) |
| Package 3 Length |
23.62 in (60.000 cm) |
| Package 3 Weight |
39.366 lb(US) (17.856 kg) |
PRODUCT DATASHEET
9001W31_Product Datasheet
