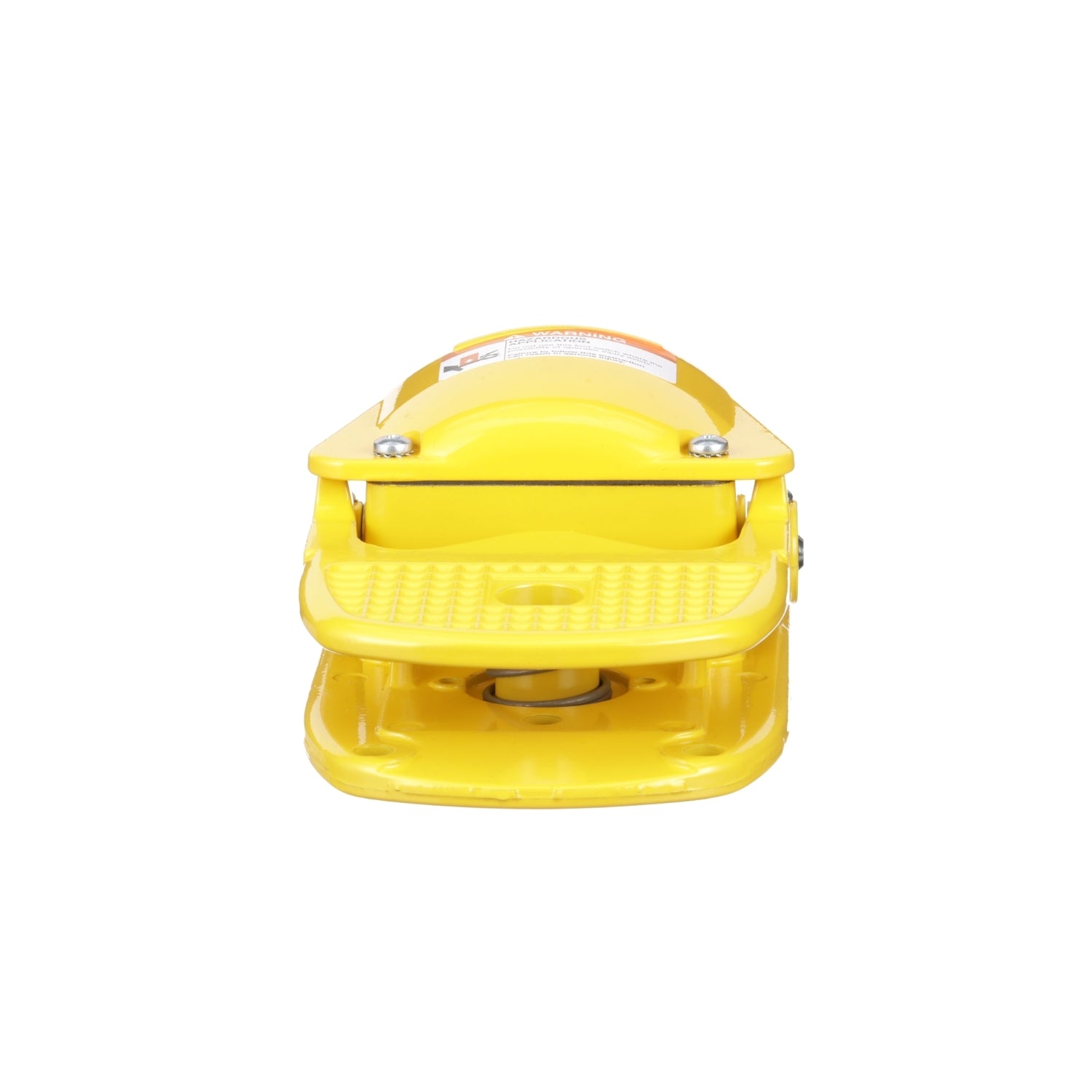

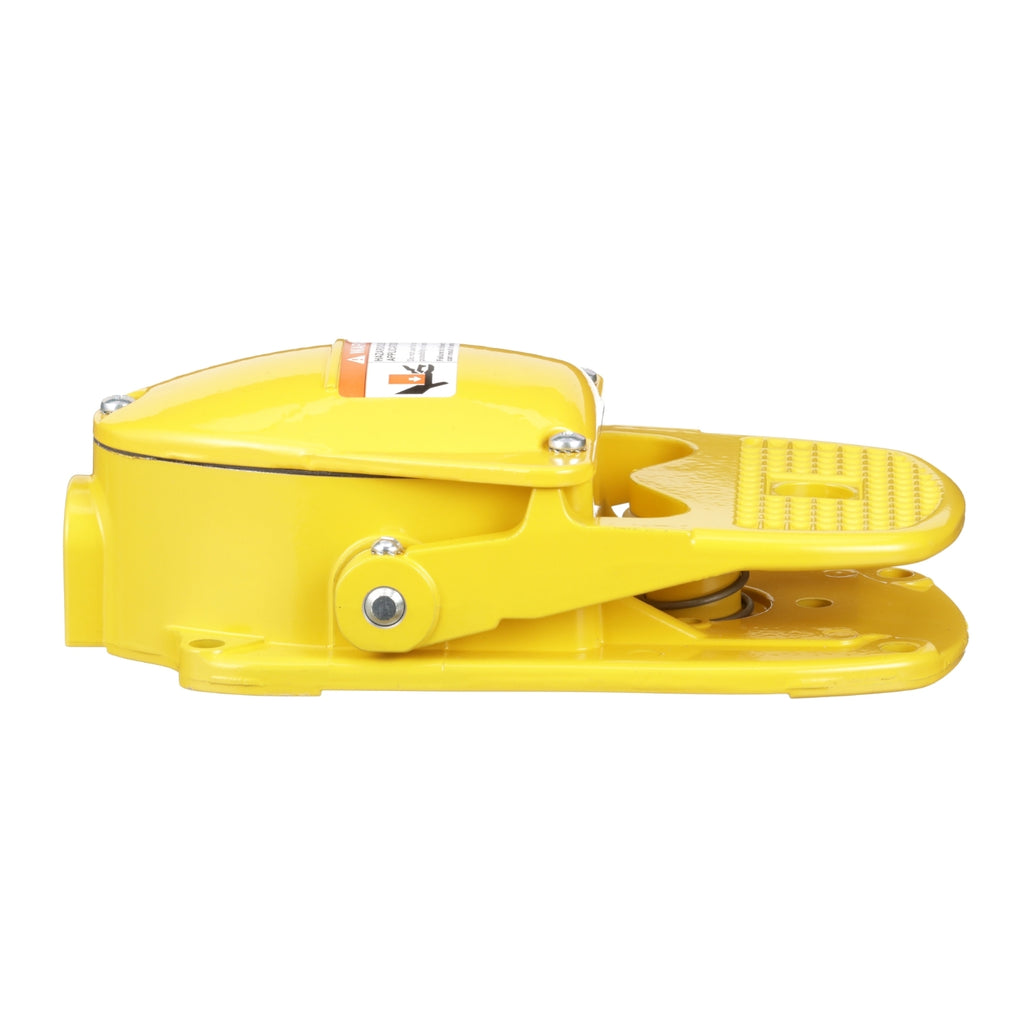

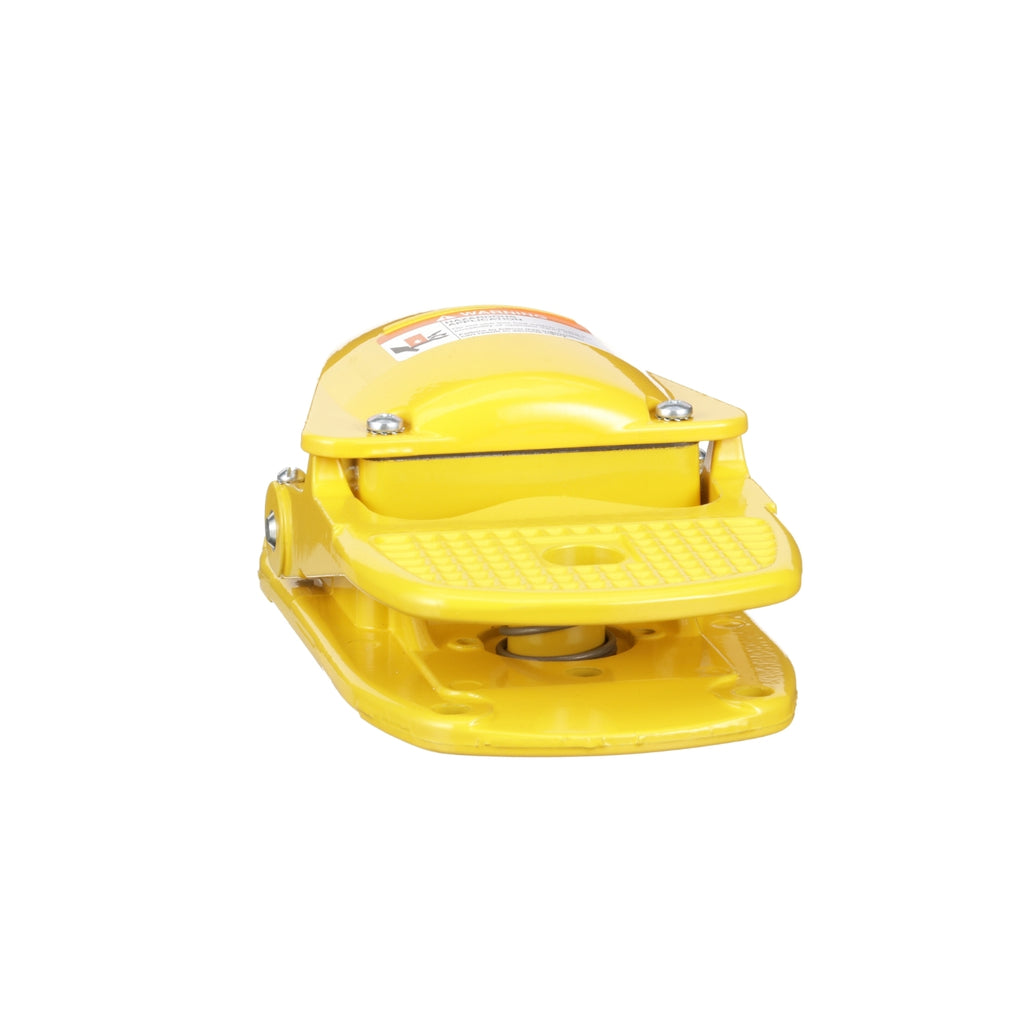

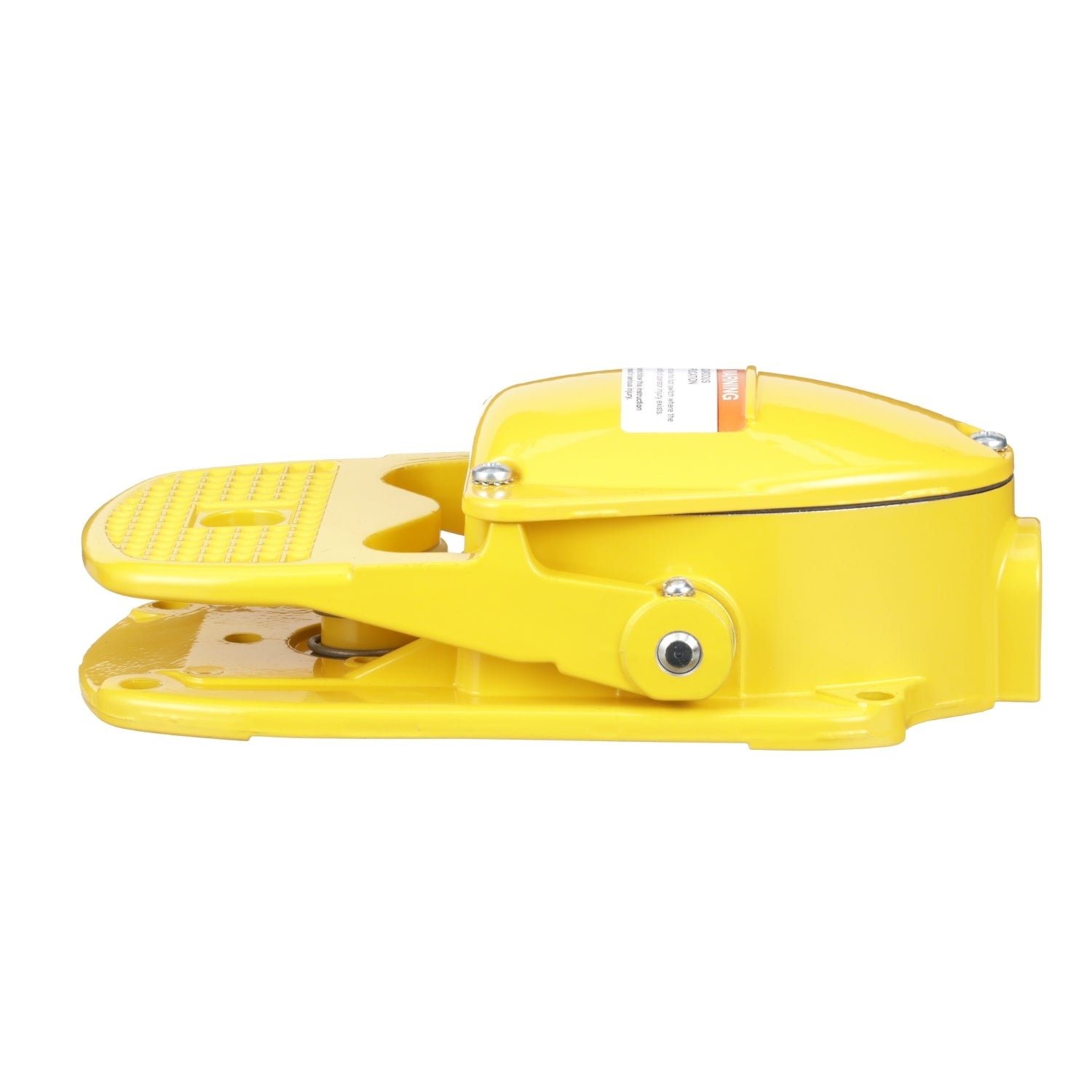

9002AW1 - Schneider Electric - Square D Automation Switch
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no sheilding. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. This foot switch is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9002AW |
|---|---|
| Product | Foot switch |
| Contact Operation | 1 step |
| Certifications | CSA UL Listed |

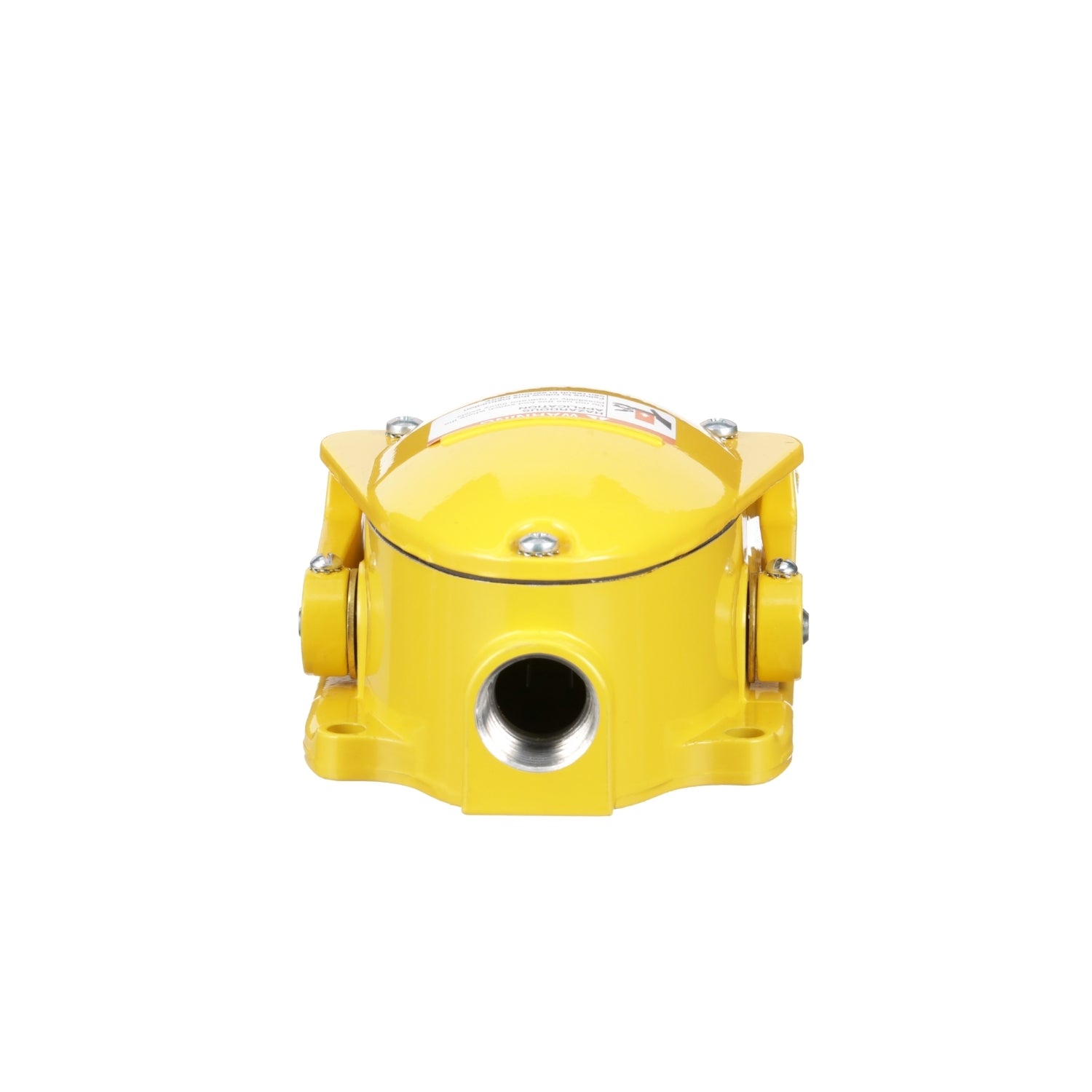

| Cable Entry | 0.75 inch NPT conduit entrance |
| Contact Arrangement | SPDT |
| Enclosure Rating | NEMA 4/13 |
| Voltage Rating | 600 V AC/DC |
| Protection | Unshielded |
| Operator Action | Spring return |
| Rated Breaking Capacity | 15 A 120 V AC inductive control circuit UL 508 10 A 240 V AC inductive control circuit UL 508 6 A 480 V AC inductive control circuit UL 508 5 A 600 V AC inductive control circuit UL 508 15 A 120 V AC resistive control circuit UL 508 0.5 A 125 V DC resistive control circuit UL 508 |
| Height | 3.9 in (99 mm) |
| Width | 4.5 in (114 mm) |
| Depth | 8.5 in (216 mm) |
| Category | US10CS121441 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901815433 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.40 in (8.636 cm) |
| Package 1 Width | 5.00 in (12.700 cm) |
| Package 1 Length | 9.00 in (22.860 cm) |
| Package 1 Weight | 3.100 lb(US) (1.406 kg) |
