Description
9002AW6 - Schneider Electric - Square D Automation Switch

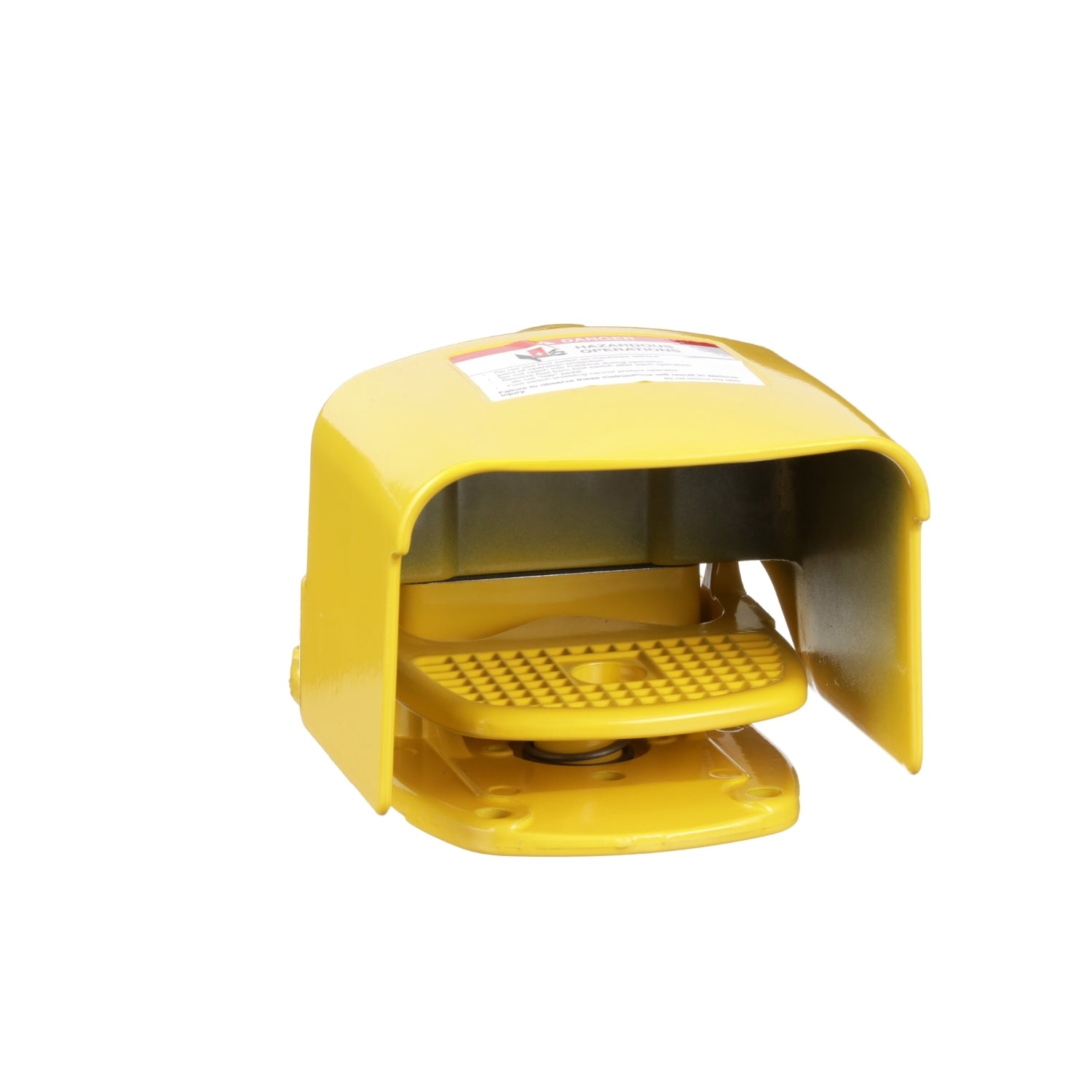

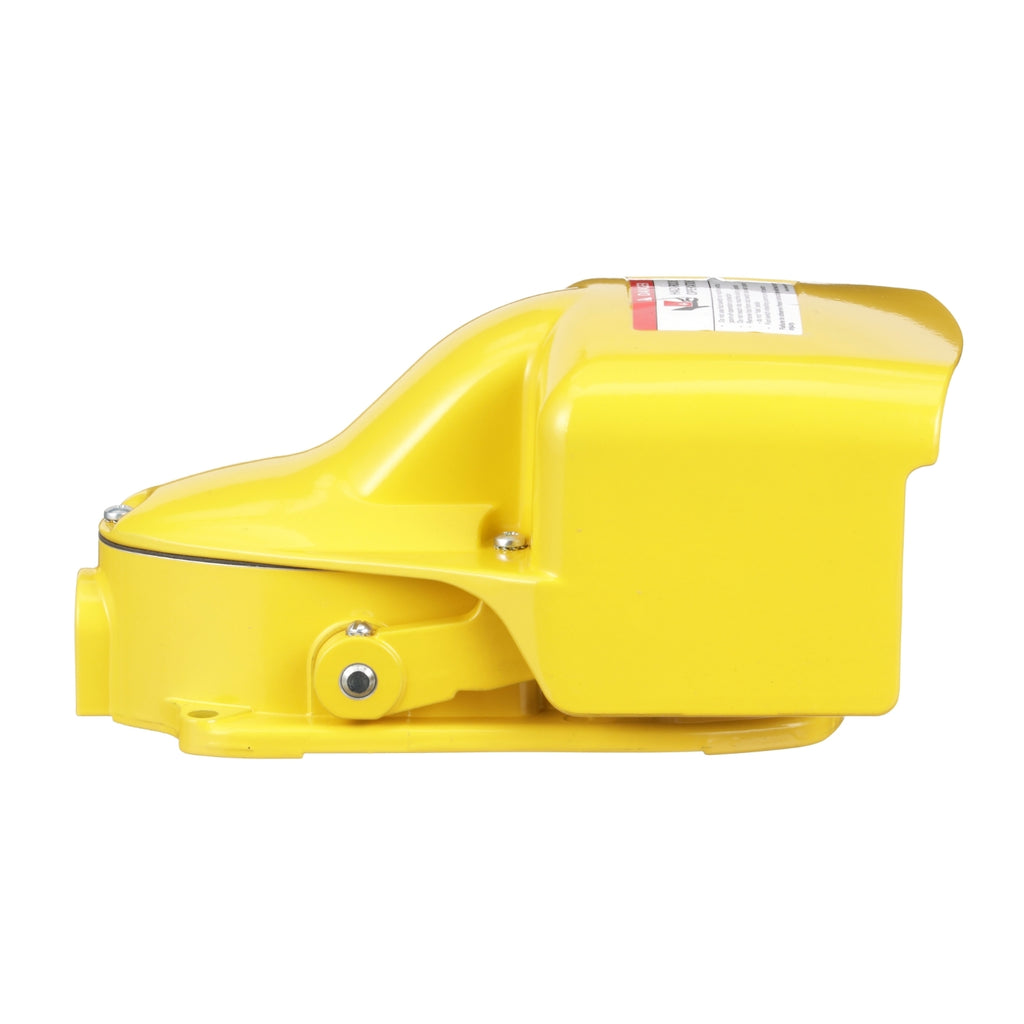

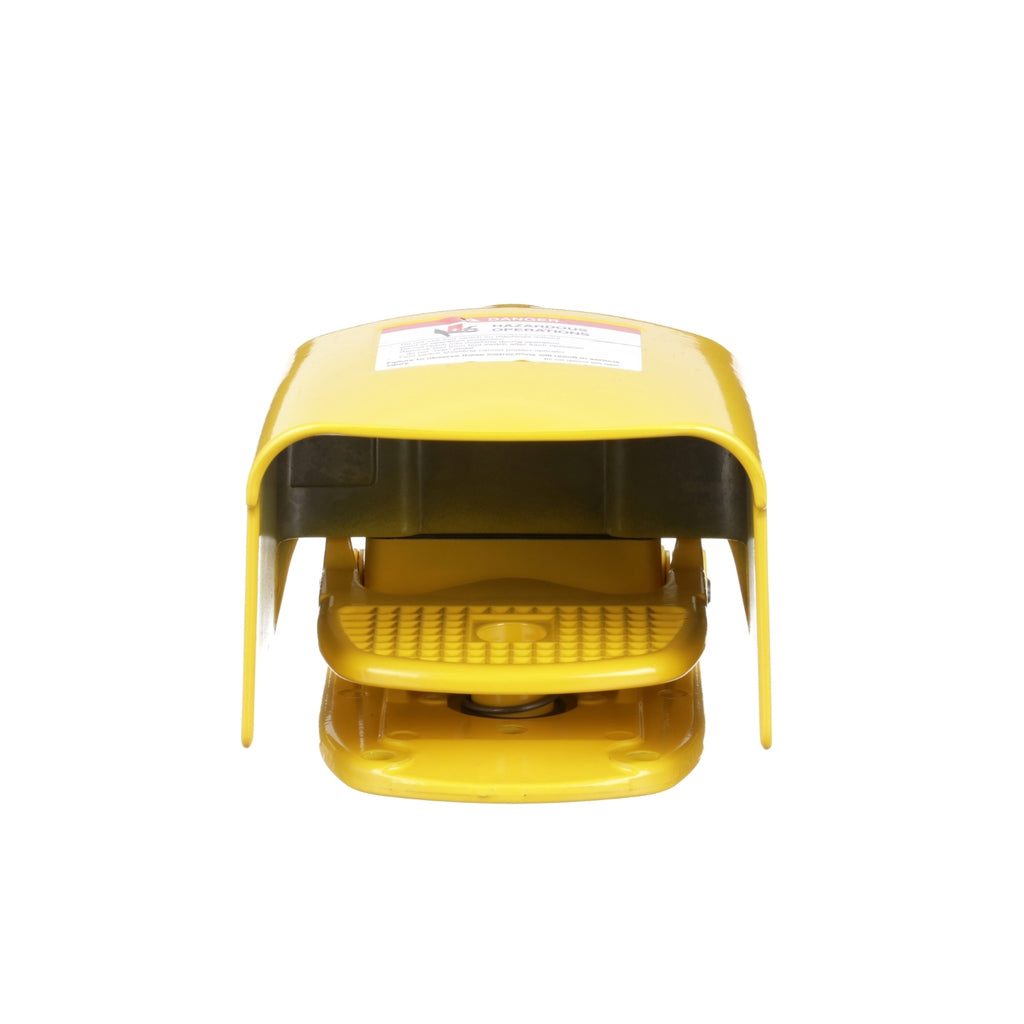

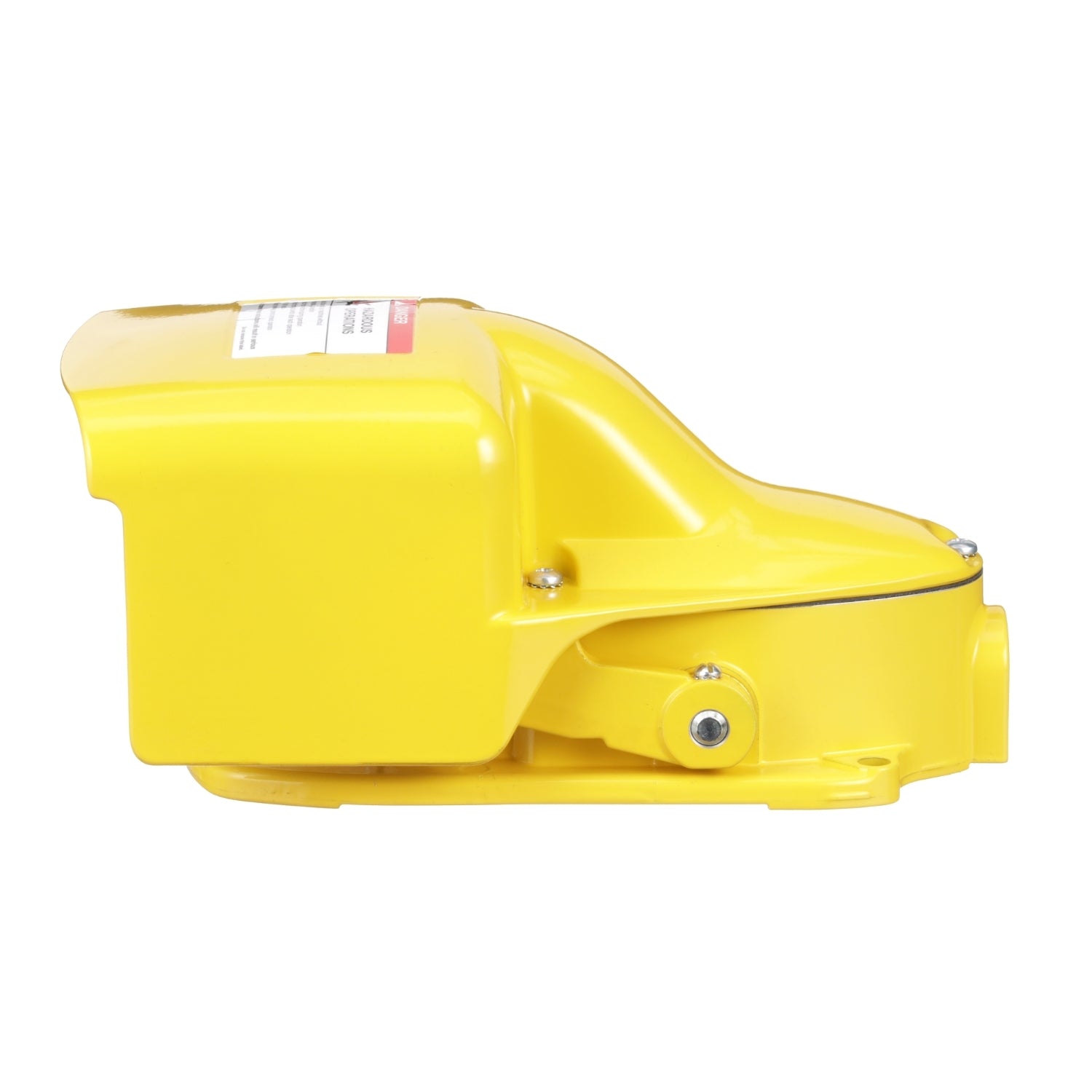

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. It has a mechanical latch in first stage. A single pole double throw snap switch is used for each stage of this two stage foot switch and the contacts are rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. The snap switch for each stage contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9002AW |
|---|---|
| Product | Foot switch |
| Contact Operation | 2 steps |
| Certifications | UL Listed CSA |
| Cable Entry | 0.75 inch NPT conduit entrance |
| Contact Arrangement | SPDT per step |
| Enclosure Rating | NEMA 4/13 |
| Voltage Rating | 600 V AC/DC |
| Protection | Side shield Pedal shield |
| Operator Action | Spring return |
| Rated Breaking Capacity | 15 A 120 V AC inductive control circuit UL 508 10 A 240 V AC inductive control circuit UL 508 6 A 480 V AC inductive control circuit UL 508 5 A 600 V AC inductive control circuit UL 508 15 A 120 V AC resistive control circuit UL 508 0.5 A 125 V DC resistive control circuit UL 508 |
| Height | 4.8 in (123 mm) |
| Width | 5.4 in (137 mm) |
| Depth | 9.02 in (229 mm) |
| Category | US10CS121441 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901816508 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.60 in (14.224 cm) |
| Package 1 Width | 5.60 in (14.224 cm) |
| Package 1 Length | 12.00 in (30.480 cm) |
| Package 1 Weight | 4.691 lb(US) (2.128 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 72 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 339.999 lb(US) (154.221 kg) |
PRODUCT DATASHEET
Schneider Electric_Heavy-Duty-9002-Industrial-Foot-Switches_9002AW6
