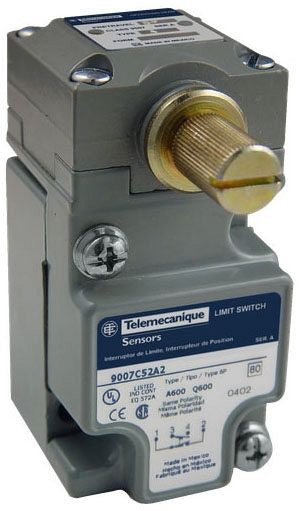

9007C52A2 - Square D - Heavy Duty SPDT Plug-In Rotary Limit Switch, 600V AC, 10A
Roll over image to zoom in Click on image to zoom
9007C52A2 - Square D - Heavy Duty SPDT Plug-In Rotary Limit Switch, 600V AC, 10A

9007C52A2 - Square D - Heavy Duty SPDT Plug-In Rotary Limit Switch, 600V AC, 10A

Square DSKU: SQD9007C52A2
Price:
$180.31
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

SPECIFICATIONS

Type Contact Rating Contact Configuration Actuator/Head Type
Heavy Duty, Compact, Industrial, Plug-In 600 VAC 10 Ampere, 600 VDC 2.5 Ampere SPDT, 1NO-1NC Rotary Lever
Operation Type Operating Force Total Travel Pretravel Differential Travel Connection Type
Clockwise/Counter Clockwise, Spring Return, Snap Action 4 Lb-Inch 90 Deg 5 Deg 2 Deg 1/2 Inch NPT Conduit
Operating Temperature Body Material Enclosure Approval Model
-20 to 185 Deg F Zamak Zinc Alloy NEMA 1/2/4/6/6P/12/13, IP67 UL, CSA, CE 9007C52
Additional Information
Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Constructional Features Oil Tight, Water Tight
Product Datasheet
9007C52A2
