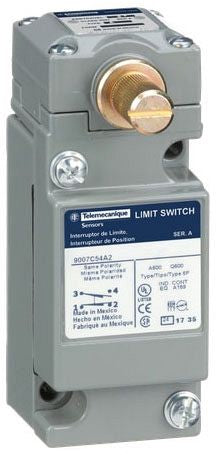

9007C54A2 - Square D - Heavy Duty Industrial SPDT Plug-In Rotary Limit Switch, 600V AC
Roll over image to zoom in Click on image to zoom
9007C54A2 - Square D - Heavy Duty Industrial SPDT Plug-In Rotary Limit Switch, 600V AC

9007C54A2 - Square D - Heavy Duty Industrial SPDT Plug-In Rotary Limit Switch, 600V AC

Square DSKU: SQD9007C54A2
Price:
$224.41
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

SPECIFICATIONS

Type Contact Rating Contact Configuration Actuator/Head Type
Heavy Duty, Industrial, Plug-In 600 Volt AC 10 Amp, 600 Volt DC 2.5 Amp SPDT, 1NO-NC Rotary Lever
Operation Type Operating Force Total Travel Pretravel Differential Travel Connection Type
Clockwise/Counter Clockwise, Spring Return, Snap Action 4 Inch-Pound 90 Degree 5 Degree 2 Degree 1/2 Inch-14 Threaded
Operating Temperature Body Material Enclosure Approval Model
-20 to 185 Deg F Zamak Zinc Alloy NEMA 1/2/4/6/6P/12/13, IP67 UL, CSA, CE 9007C54
Additional Information
RoHS Compliant; Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250
Product Datasheet
9007C54A2
