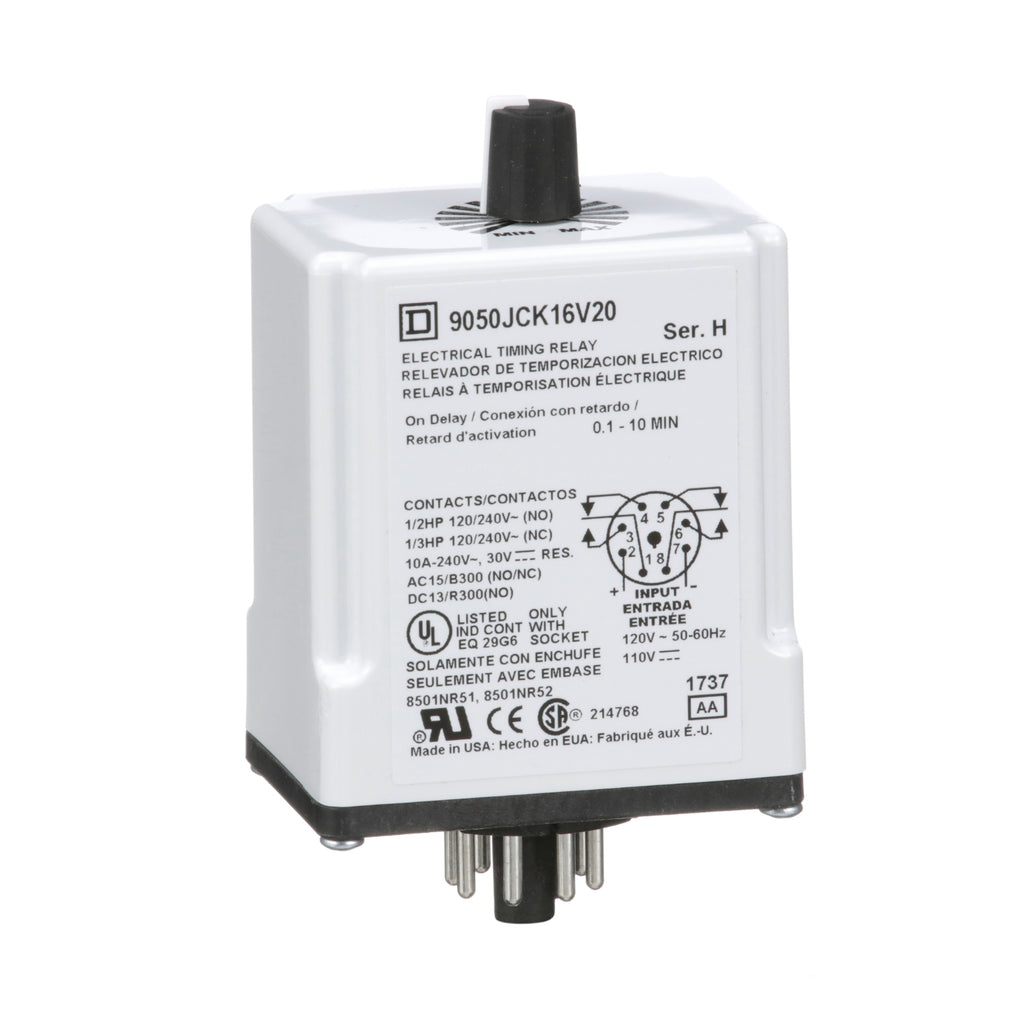

9050JCK16V20 - Schneider Electric - 10 Amp 240 Volt Square D Timer Relay
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 0.1 to 10 minutes is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| product range | 9050JCK |
|---|---|
| product type | Timer |
| timing mode | On-delay |
| timing range | 0.1...10 min |
| supply voltage | 120 V AC 110 V DC |
| power consumption | 2 VA |
|---|---|
| current rating | 10 A |
| switch function | DPDT |
| contact composition | 2 NO + 2 NC |
| contact material | Silver nickel |
| maximum switching voltage | 240 V AC |
| mounting type | Socket |
| number of pins | 8 |
| shape of pins | Tubular |
| for use with | 8501NR51 8501NR52 |
| certifications | CE UL Listed UL Recognized |
|---|---|
| ambient temperature range - operational | -28…66 °C (-18…150 °F) |
| Height | 2.4 in (61 mm) |
| Width | 1.7 in (43 mm) |
| Depth | 4.09 in (104 mm) |
| Category | US10CP221651 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901032595 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.00 in (5.08 cm) |
| Package 1 Width | 2.60 in (6.604 cm) |
| Package 1 Length | 4.40 in (11.176 cm) |
| Package 1 Weight | 5.280 oz (149.686 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 4.50 in (11.43 cm) |
| Package 2 Width | 10.00 in (25.4 cm) |
| Package 2 Length | 11.00 in (27.94 cm) |
| Package 2 Weight | 5.501 lb(US) (2.495 kg) |
