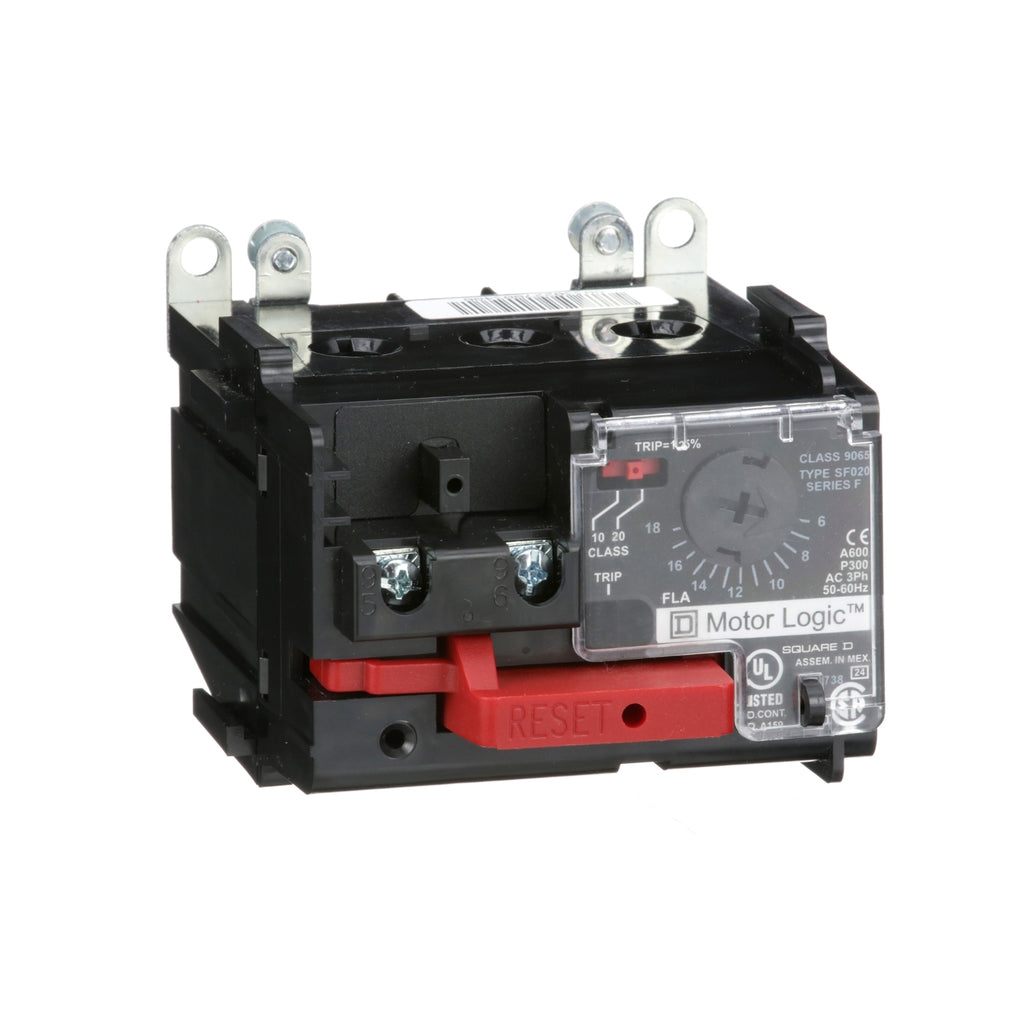

9065SF020 - Schneider Electric - Square D Overload Relay
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 0 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 6A to 18A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. Electrical remote reset is available. The visible trip indicator and trip test function make trouble shooting much quicker. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified. Separate mount overload relays are UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Motor Logic |
| Thermal overload type |
Solid state |
Complementary
| NEMA size |
0 |
| Phase |
3 phase |
| Mounting Support |
Mounting plate |
| [Ue] rated operational voltage |
600 V AC |
| Height |
2.7 in (68.3 mm) |
| Width |
3.3 in (82.8 mm) |
| Depth |
3.9 in (99.1 mm) |
| Net Weight |
1.21 lb(US) (0.55 kg) |
Ordering and shipping details
| Category |
US10CP121662 |
| Discount Schedule |
0CP1 |
| GTIN |
785901749929 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.10 in (12.954 cm) |
| Package 1 Width |
5.30 in (13.462 cm) |
| Package 1 Length |
6.20 in (15.748 cm) |
| Package 1 Weight |
16.384 oz (464.478 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
147 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
177.999 lb(US) (80.739 kg) |
