Description

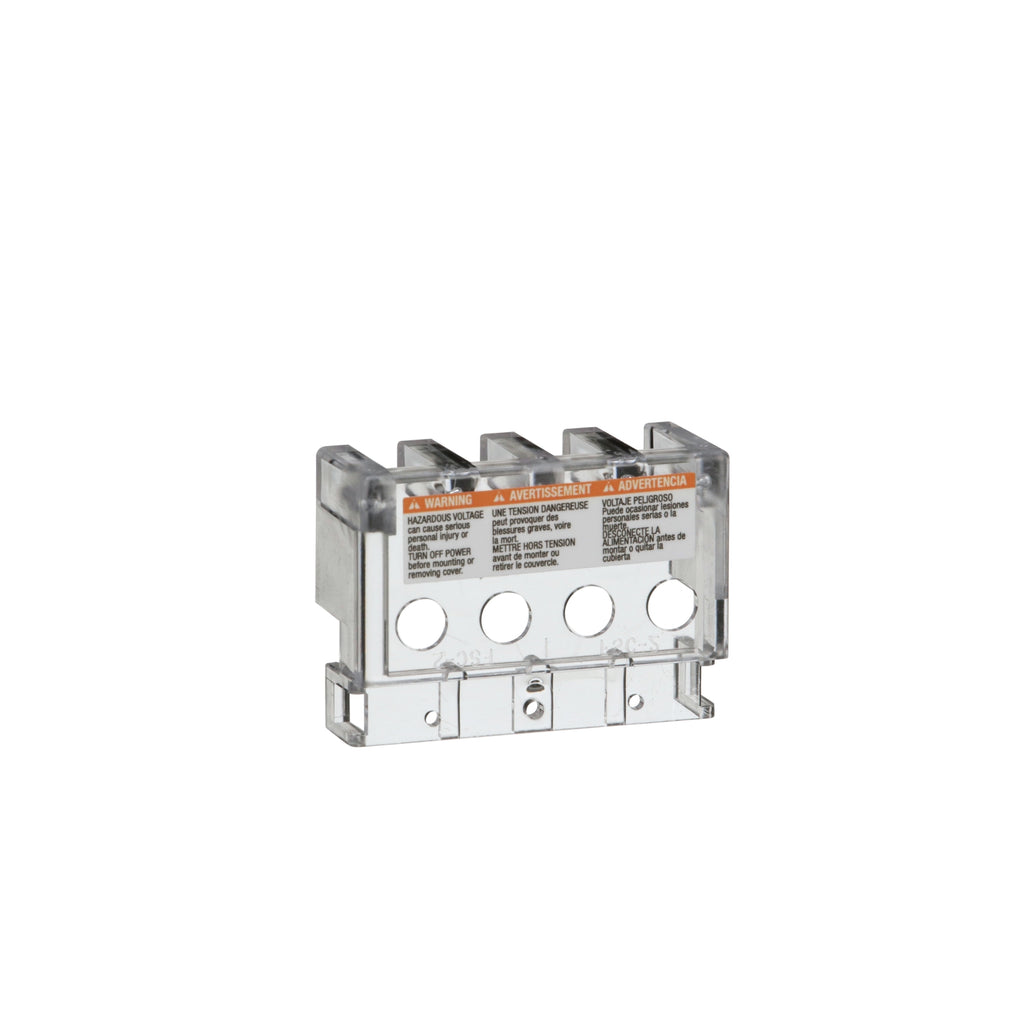

9070FSC2 - Schneider Electric - Square D Transformer Accessory
Control power transformers from Schneider Electric set the industry standard for design innovation and performance. This industrial control transformer, Terminal Cover has been certified by UL,CSA, cUL listed, CE & NOM standards. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This Transformer's Product Compatability for use with D1, D2, D3, D4, D5, D13, D14, D33, D37, D15, D20, D23, D31, D32 with a power rating of 250-5000 VA and comes in 1 set of 10, (set of 2). They are designed with low impedance windings for excellent voltage regulation, and can accomodate the high inrush current associated with contactors, starters, solenoids, and relays.
GENERAL SPECIFICATIONS
| Product or Component Type | Cover |
|---|---|
| Protection Type | Fingersafe |
| Product destination | Transformer |
|---|---|
| Voltage Codes | D1 250…5000 VA D2 250…5000 VA D3 250…5000 VA D4 250…5000 VA D5 250…5000 VA D13 250…5000 VA D14 250…5000 VA D33 250…5000 VA D37 250…5000 VA D15 250…5000 VA D20 250…5000 VA D23 250…5000 VA D31 250…5000 VA D32 250…5000 VA |
| Quantity per Set | Set of 2 |
| Height | 1.669 in (42.393 mm) |
| Width | 2.374 in (60.300 mm) |
| Depth | 0.992 in (25.197 mm) |
| Category | US10CP816204 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904755 |
| Returnability | Yes |
| Country of origin | CA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.20 in (3.048 cm) |
| Package 1 Width | 2.80 in (7.112 cm) |
| Package 1 Length | 4.40 in (11.176 cm) |
| Package 1 Weight | 1.280 oz (36.287 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.60 in (14.224 cm) |
| Package 2 Width | 6.50 in (16.51 cm) |
| Package 2 Length | 7.20 in (18.288 cm) |
| Package 2 Weight | 16.800 oz (476.272 g) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 11.70 in (29.718 cm) |
| Package 3 Width | 21.20 in (53.848 cm) |
| Package 3 Length | 29.50 in (74.93 cm) |
| Package 3 Weight | 27.631 lb(US) (12.533 kg) |
PRODUCT DATASHEET
