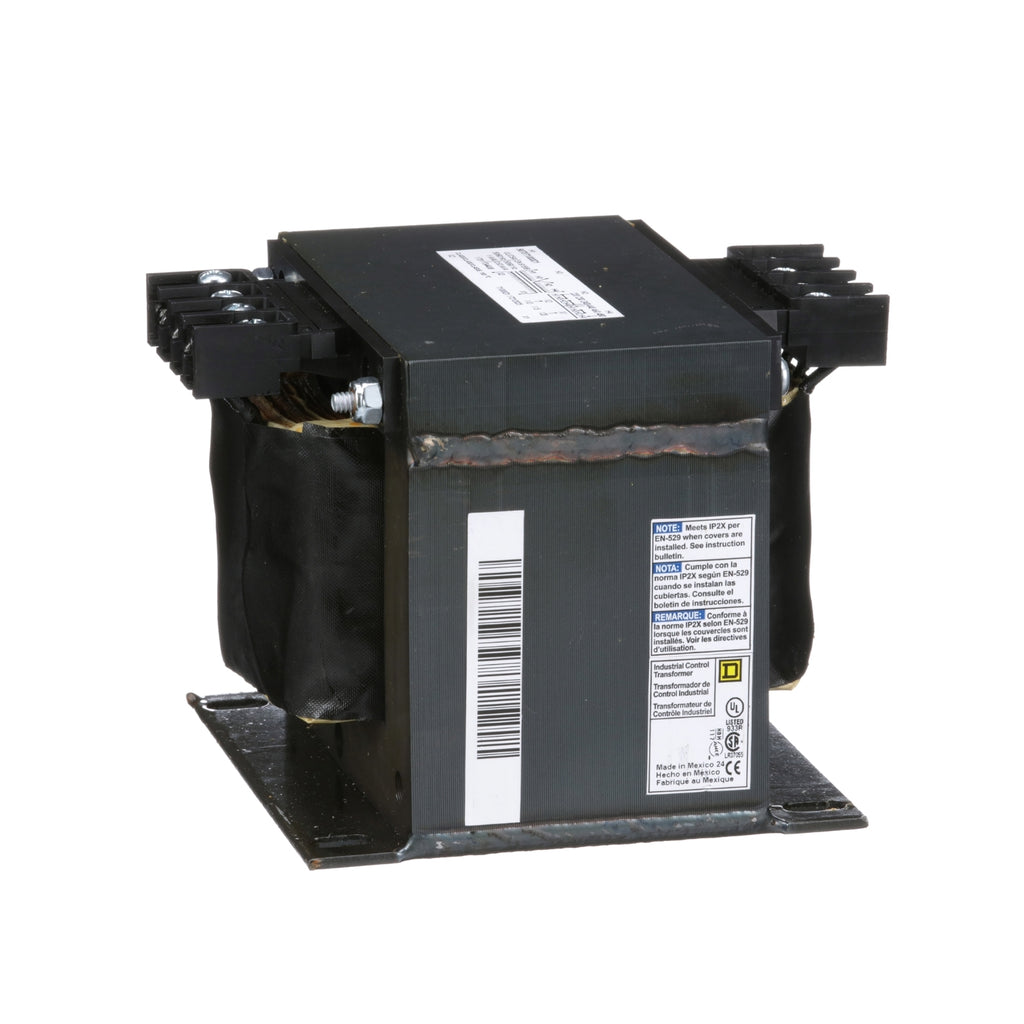

9070T1000D1 - Schneider Electric - 240x480V Square D Transformer
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 1000 VA UL 1000 VA CSA 1000 VA NOM 630 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 115 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 4.51 in (114.55 mm) |
| Width | 5.25 in (133.35 mm) |
| Depth | 6.3 in (160.02 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | UL listed file E61239 CSA file LR37055 guide 184-N-90 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 356 °F (180 °C) |
| Category | US10CP816201 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904724 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.00 in (17.780 cm) |
| Package 1 Width | 9.30 in (23.622 cm) |
| Package 1 Length | 9.80 in (24.892 cm) |
| Package 1 Weight | 21.700 lb(US) (9.843 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 27.00 in (68.580 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 1231.999 lb(US) (558.825 kg) |
