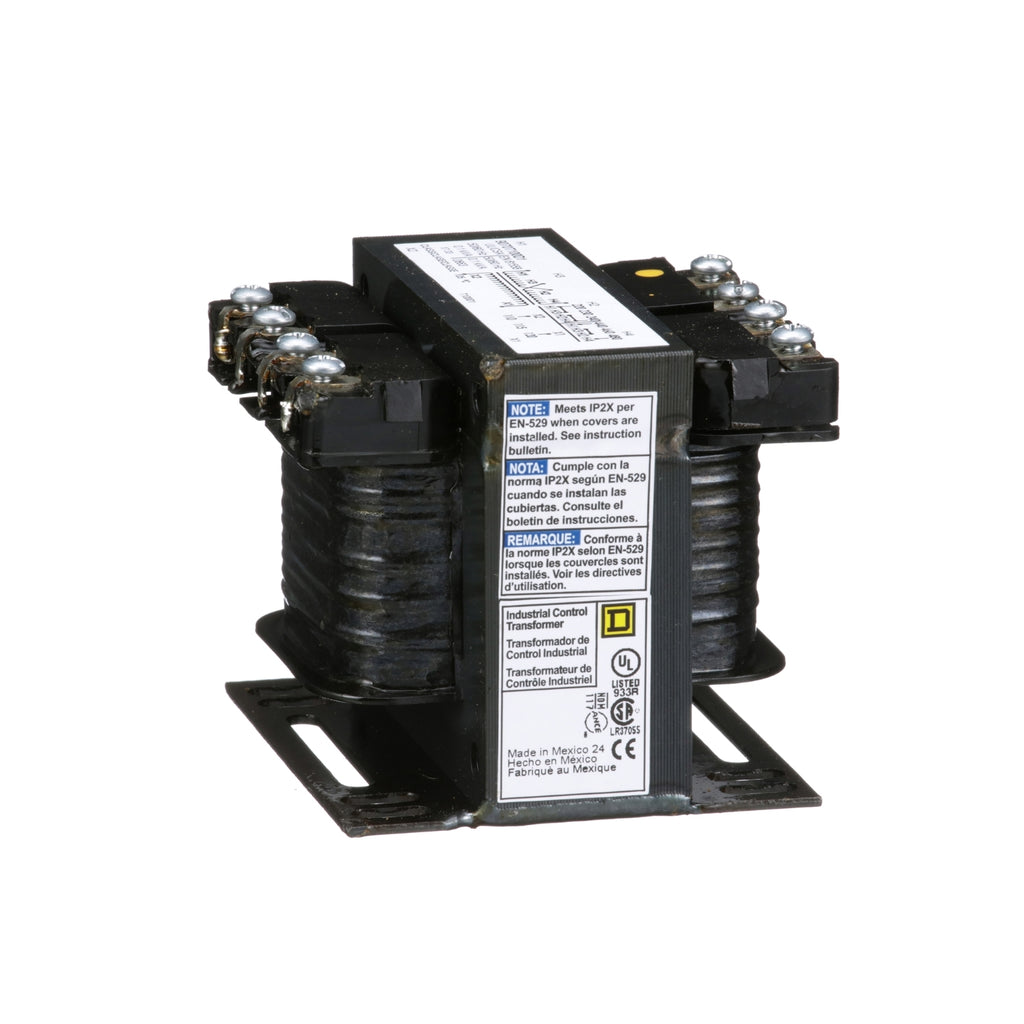

9070T100D1 - Schneider Electric - Square D Industrial Control Transformer
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 100 VA UL 100 VA CSA 100 VA NOM 100 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 55 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 2.89 in (73.41 mm) |
| Width | 3.38 in (85.85 mm) |
| Depth | 3.34 in (84.84 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Certifications | UL listed file E61239 CSA file LR37055 guide 184-N-90 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 221 °F (105 °C) |
| Category | US10CP816200 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904649 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.50 in (13.970 cm) |
| Package 1 Width | 6.20 in (15.748 cm) |
| Package 1 Length | 7.20 in (18.288 cm) |
| Package 1 Weight | 4.239 lb(US) (1.923 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 450 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 1710.449 lb(US) (775.846 kg) |
PRODUCT DATASHEET
