9070T250D1 - Schneider Electric - Square D Control Power

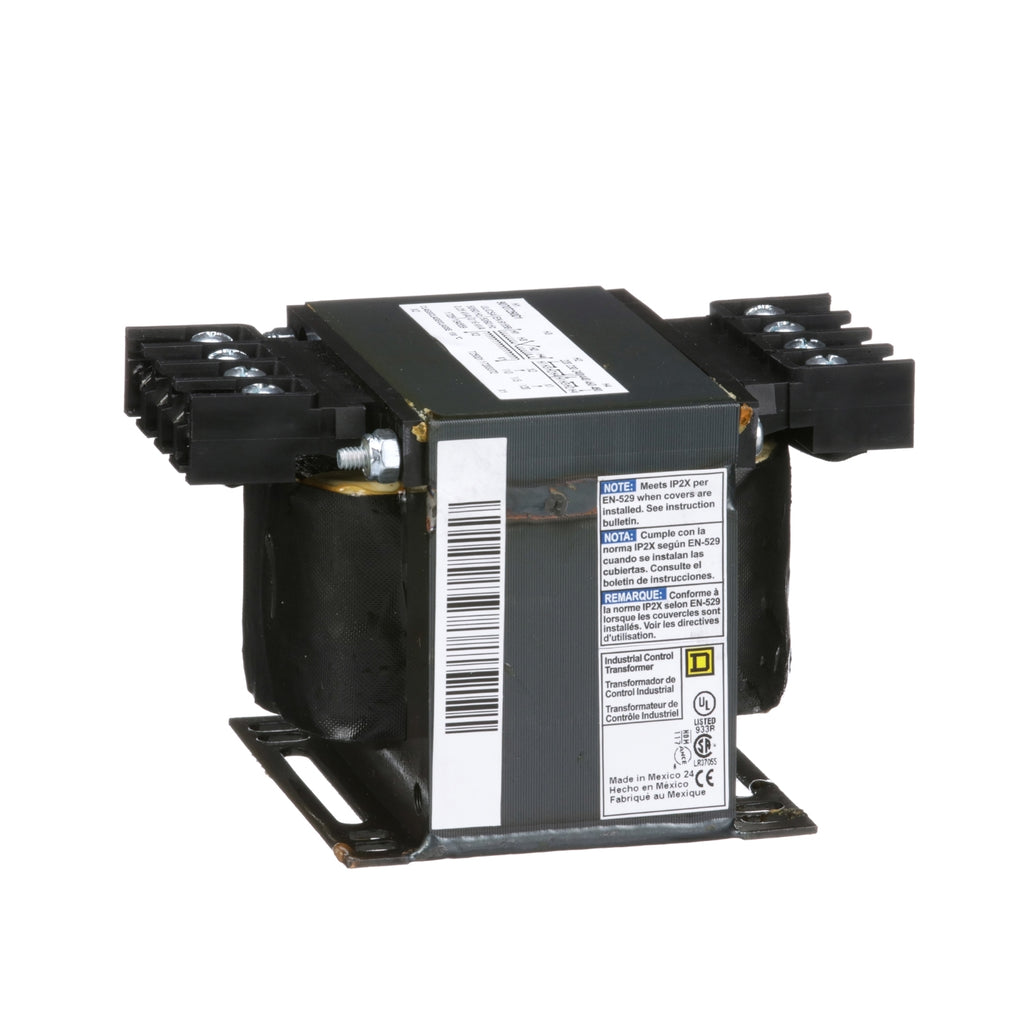

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 250VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 80 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 250 VA UL 250 VA CSA 250 VA NOM 160 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.2 in (81.3 mm) |
| Width | 3.75 in (95.25 mm) |
| Depth | 5.3 in (134.6 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 266 °F (130 °C) |
| Category | US10CP816201 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904670 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 in (15.748 cm) |
| Package 1 Width | 6.800 in (17.272 cm) |
| Package 1 Length | 7.800 in (19.558 cm) |
| Package 1 Weight | 8.186 lb(US) (3.701 kg) |
