Description
| Main | |
|---|---|

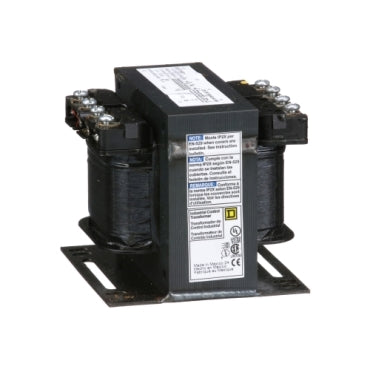

| Product Type | Industrial Control Transformer |
| Type | T |
| Complementary | |
| Number of Phases | 1 phase |
| Power Rating | 300 VA UL300 VA CSA300 VA NOM200 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V230 x 460 V 115 V220 x 440 V 110 V |
| Temperature Rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.84 in (97.54 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.74 in (120.40 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Environment | |
| Certifications | CSA file LR37055 guide 184-N-90UL listed file E61239 |
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 266 °F (130 °C) |
| Ordering and shipping details | |
| Category | US10CP816201 |
| Discount Schedule | 0CP8 |
| GTIN | 785901904687 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.900 in (9.906 cm) |
| Package 1 Width | 4.74 in (12.04 cm) |
| Package 1 Length | 4.50 in (11.43 cm) |
| Package weight(Lbs) | 9.381 lb(US) (4.255 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
9070T300D1
9070T300D1
