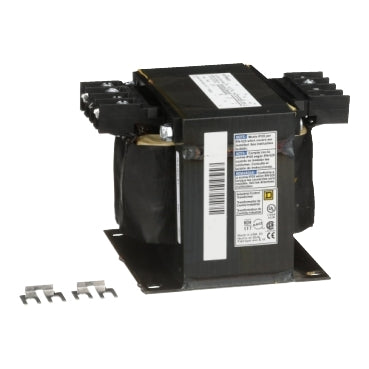

9070T500D23 - Square D - 500VA 120×240V Primary 24V Secondary Control Transformer
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 500VA and is 1 phase. It has a 120x240V primary voltage and 24V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 500 VA UL 500 VA CSA 500 VA NOM 300 VA CE |
| Primary to Secondary Voltage | 120 x 240 V 24 V |
| Temperature Rise | 115 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.84 in (97.54 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 5.49 in (139.45 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | UL listed file E61239 CSA file LR37055 guide 184-N-90 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 356 °F (180 °C) |
| Category | US10CP816206 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901907152 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.50 in (16.51 cm) |
| Package 1 Width | 6.800 in (17.272 cm) |
| Package 1 Length | 7.800 in (19.812 cm) |
| Package weight(Lbs) | 11.901 lb(US) (5.398 kg) |
