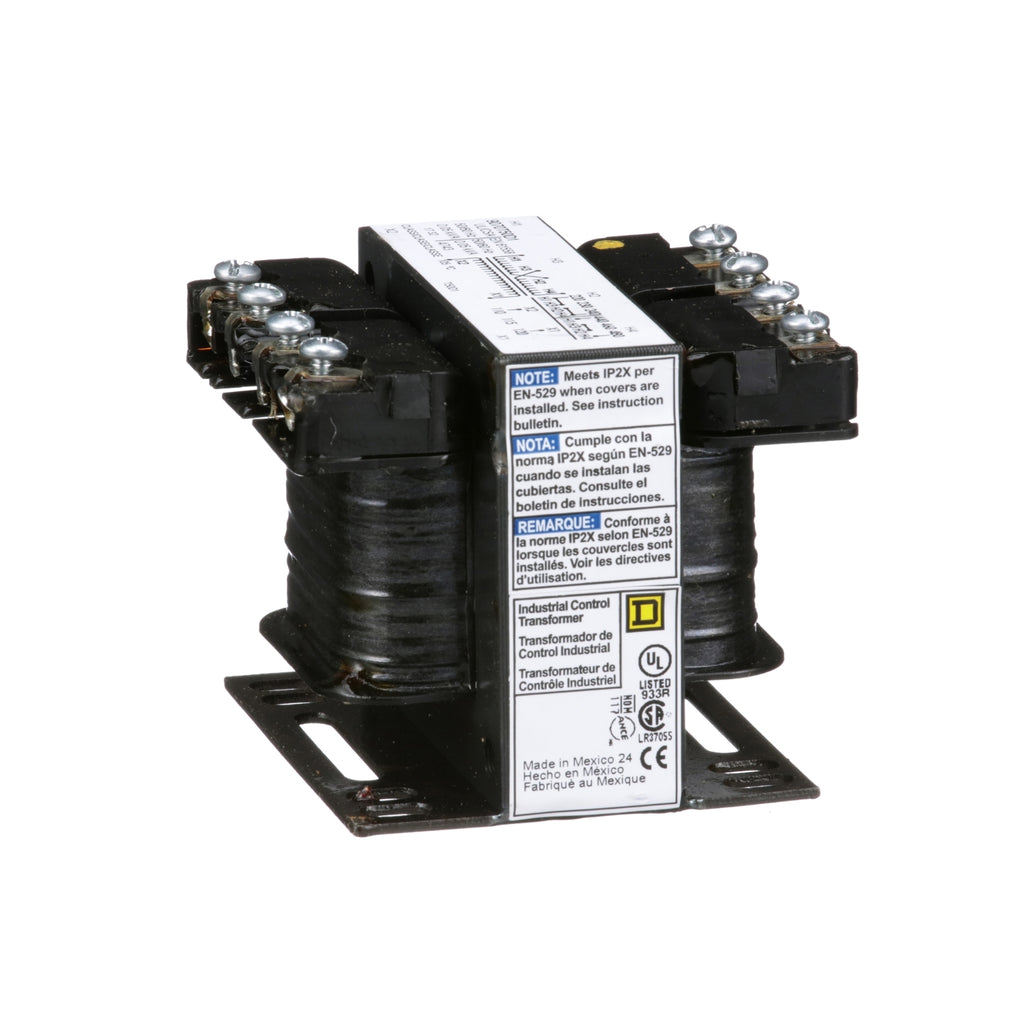

9070T50D1 - Schneider Electric - 240 Volt Square D Industrial Control
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 50VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Product Type | Industrial Control Transformer |
|---|---|
| Type | T |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 50 VA UL 50 VA CSA 50 VA NOM 50 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Temperature Rise | 55 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 2.58 in (65.53 mm) |
| Width | 3 in (76.2 mm) |
| Depth | 3.09 in (78.49 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Certifications | UL listed file E61239 CSA file LR37055 guide 184-N-90 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 221 °F (105 °C) |
| Category | US10CP816200 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904632 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.700 in (9.398 cm) |
| Package 1 Width | 4.100 in (10.414 cm) |
| Package 1 Length | 4.300 in (10.922 cm) |
| Package 1 Weight | 2.489 lb(US) (1.129 kg) |
