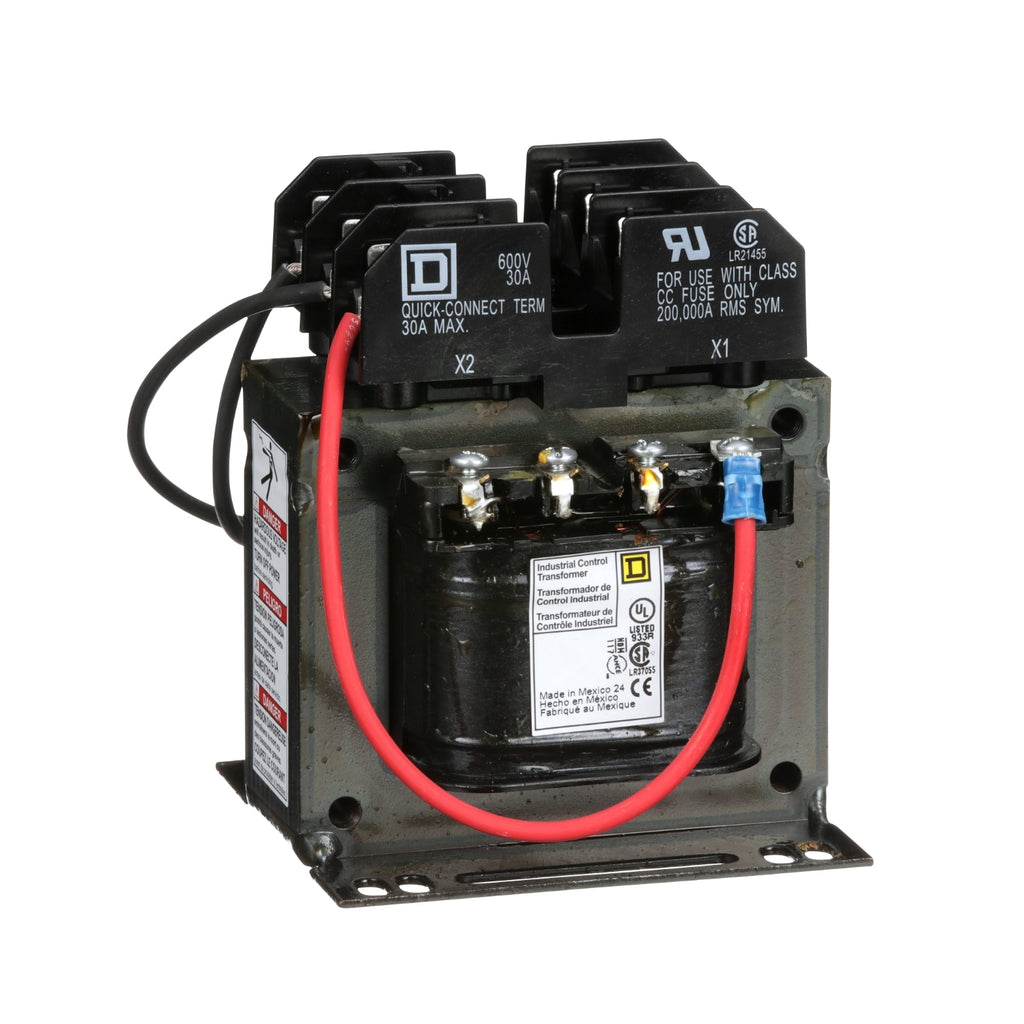

9070TF200D1 - Schneider Electric - 240/480 Volt Square D Industrial Control
We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 200VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.5 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1.
GENERAL SPECIFICATIONS
| Product or Component Type | Industrial Control Transformer |
|---|---|
| Type | TF |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 200 VA UL 200 VA CSA 200 VA NOM 200 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Fuse type | 0.41 x 1.50 in CC top |
| Temperature rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 4.5 in (114.3 mm) |
| Width | 3.75 in (95.25 mm) |
| Depth | 3.59 in (91.19 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Product Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation temperature | 266 °F (130 °C) |
| Category | US10CP816202 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904809 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 in (15.240 cm) |
| Package 1 Width | 6.300 in (16.002 cm) |
| Package 1 Length | 7.200 in (18.288 cm) |
| Package 1 Weight | 6.210 lb(US) (2.817 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 953.000 lb(US) (432.273 kg) |
