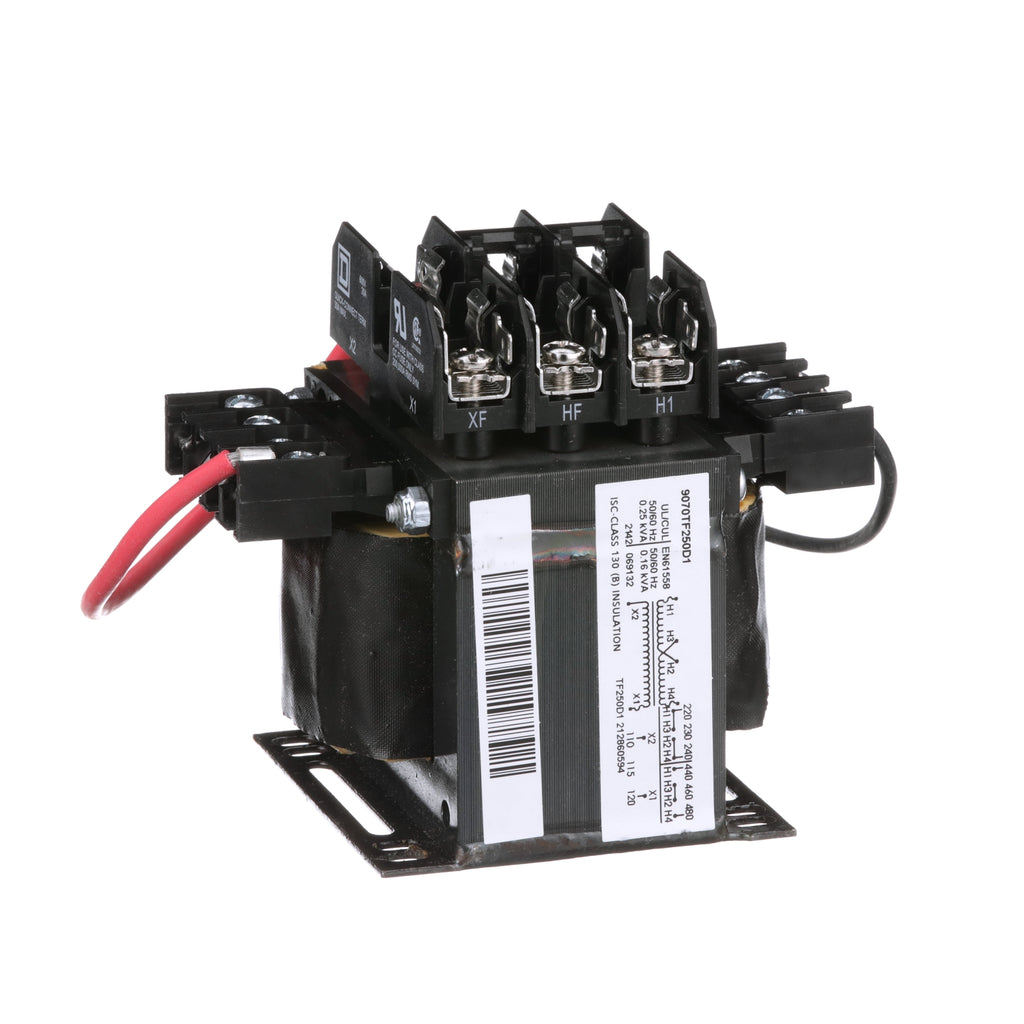

9070TF250D1 - Schneider Electric - 250VA Square D Industrial Control Transformer
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 250VA and is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 80 °C. Dimensions for the unit are 4.5 in (H)3.75 in (W)5.3 in (D) The winding material is copper. This design frees up space normally used for separate fuse blocks
GENERAL SPECIFICATIONS
| Product or Component Type | Industrial Control Transformer |
|---|---|
| Type | TF |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 250 VA UL 250 VA CSA 250 VA NOM 160 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Fuse type | 0.41 x 1.50 in CC top |
| Temperature rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 4.5 in (114.3 mm) |
| Width | 3.75 in (95.25 mm) |
| Depth | 5.3 in (134.6 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC2 |
| Product Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation temperature | 266 °F (130 °C) |
| Category | US10CP816203 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904861 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 in (16.510 cm) |
| Package 1 Width | 6.800 in (17.272 cm) |
| Package 1 Length | 7.600 in (19.304 cm) |
| Package 1 Weight | 8.349 lb(US) (3.787 kg) |
