Description

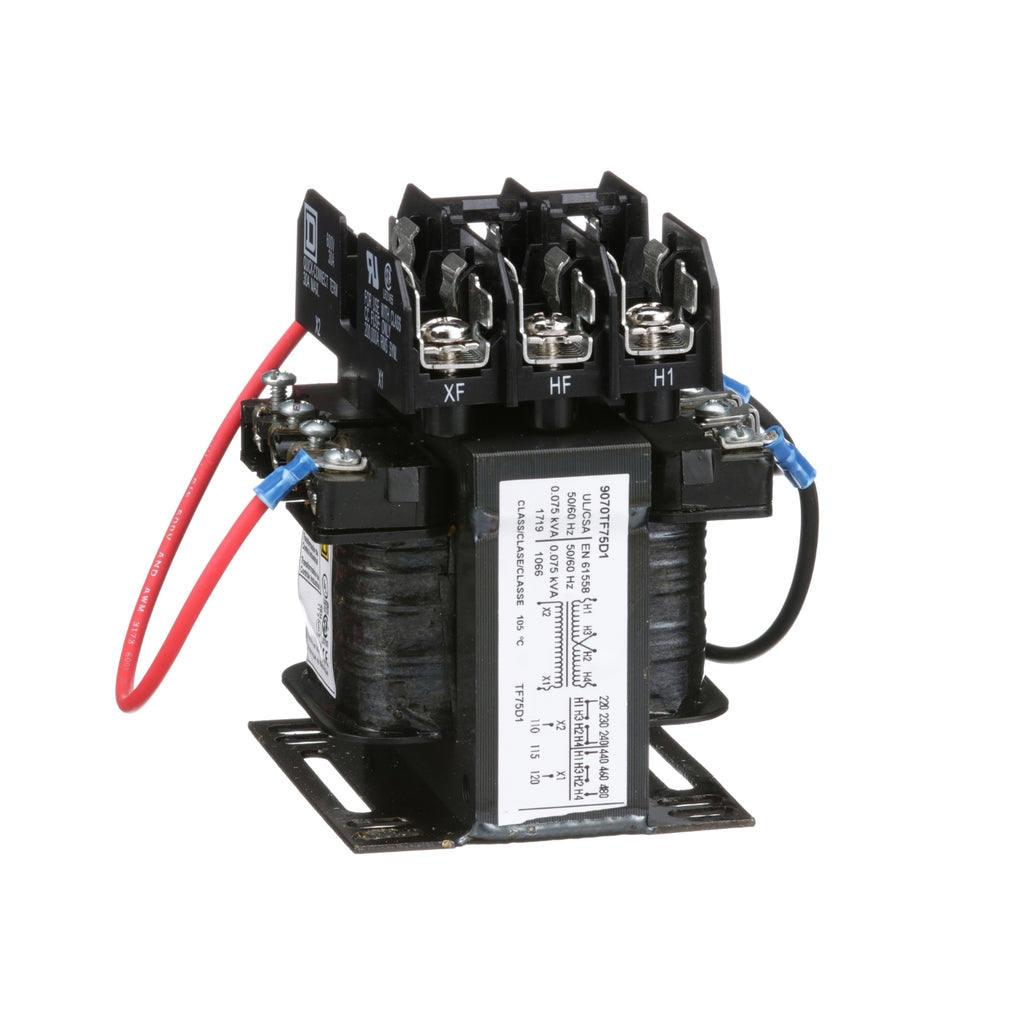

9070TF75D1 - Schneider Electric - Square D Industrial Control Transformer Type TF 1 Phase 75 VA 240x480V Primary 120V Secondary 50/60Hz
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 75 VA and is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 55 °C. Dimensions for the unit are 4.18 in (H)3.38 in (W)3.34 in (D) The winding material is copper. This design frees up space normally used for separate fuse blocks
GENERAL SPECIFICATIONS
| Product or Component Type | Industrial Control Transformer |
|---|---|
| Type | TF |
| Number of Phases | 1 phase |
|---|---|
| Power Rating | 75 VA UL 75 VA CSA 75 VA NOM 75 VA CE |
| Primary to Secondary Voltage | 240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V |
| Fuse type | 0.41 x 1.50 in CC top |
| Temperature rise | 55 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 4.18 in (106.17 mm) |
| Width | 3.38 in (85.85 mm) |
| Depth | 3.34 in (84.84 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Product Certifications | UL listed file E61239 CSA file LR37055 guide 184-N-90 |
|---|---|
| Enclosure Type | Not rated (open device) |
| Insulation temperature | 221 °F (105 °C) |
| Category | US10CP816202 |
|---|---|
| Discount Schedule | 0CP8 |
| GTIN | 785901904816 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.90 in (14.986 cm) |
| Package 1 Width | 6.30 in (16.002 cm) |
| Package 1 Length | 7.20 in (18.288 cm) |
| Package 1 Weight | 4.480 lb(US) (2.032 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 660.0006 lb(US) (299.371 kg) |
PRODUCT DATASHEET
