9080GC6B - Schneider Electric - Square D Barrier

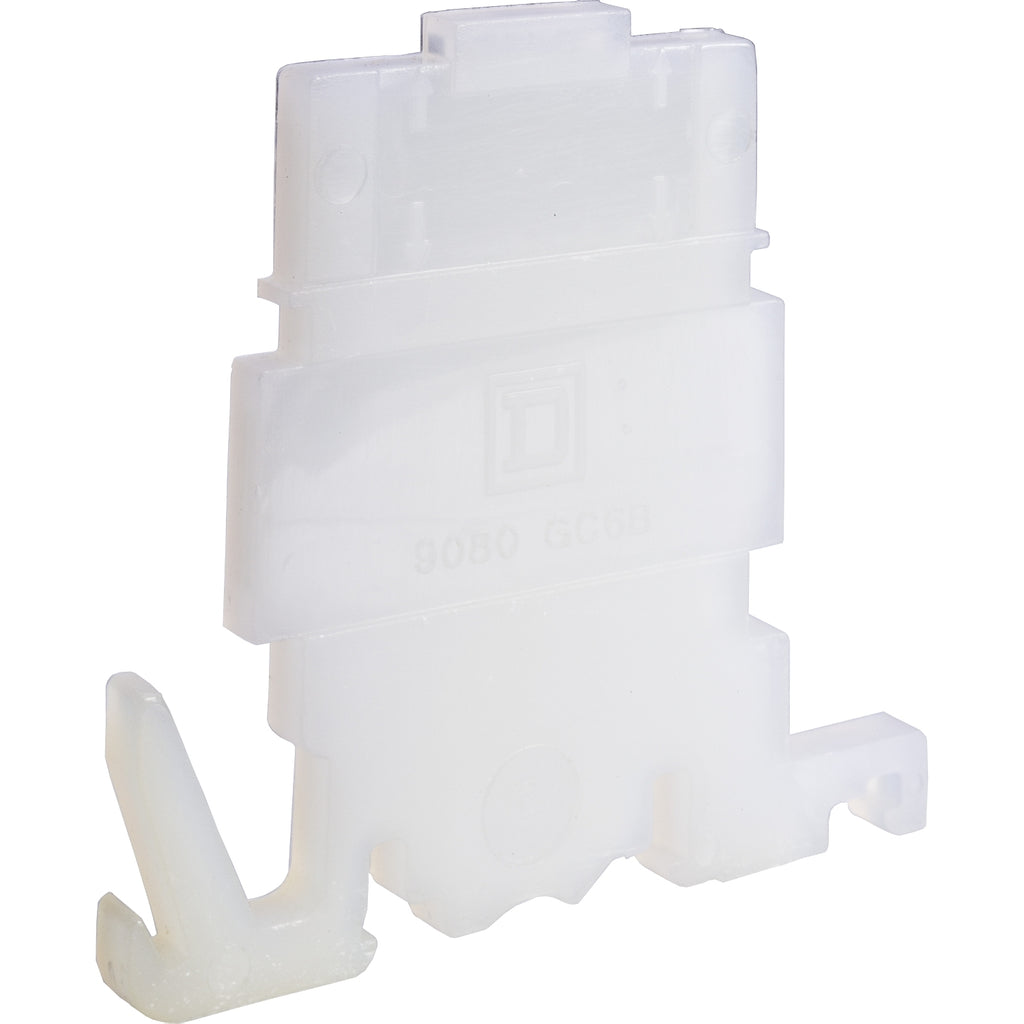

Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GC6 terminal block. An end barrier is required at the end of all assemblies of 9080 GC block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in the natural color of nylon (off white).
GENERAL SPECIFICATIONS
Main
| Range of Product |
9080G |
| Product or Component Type |
End Barrier |
Complementary
| Material |
Nylon |
| Color |
Natural |
| Package Quantity |
Set of 10 |
| Mounting Type |
35 mm DIN rail
9080GH track |
| Height |
1.95 in (49.53 mm) |
| Width |
1.99 in (50.55 mm) |
| Depth |
0.12 in (3.05 mm) |
Environment
| Ambient air temperature for operation |
-40…125 °C (-40…257 °F) |
Ordering and shipping details
| Category |
US10CP521702 |
| Discount Schedule |
0CP5 |
| GTIN |
785901155010 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.10 in (5.334 cm) |
| Package 1 Width |
1.80 in (4.572 cm) |
| Package 1 Length |
2.40 in (6.096 cm) |
| Package 1 Weight |
2.208 oz (62.596 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
1.80 in (4.572 cm) |
| Package 2 Width |
2.00 in (5.080 cm) |
| Package 2 Length |
2.40 in (6.096 cm) |
| Package 2 Weight |
2.080 oz (58.967 g) |
