Description

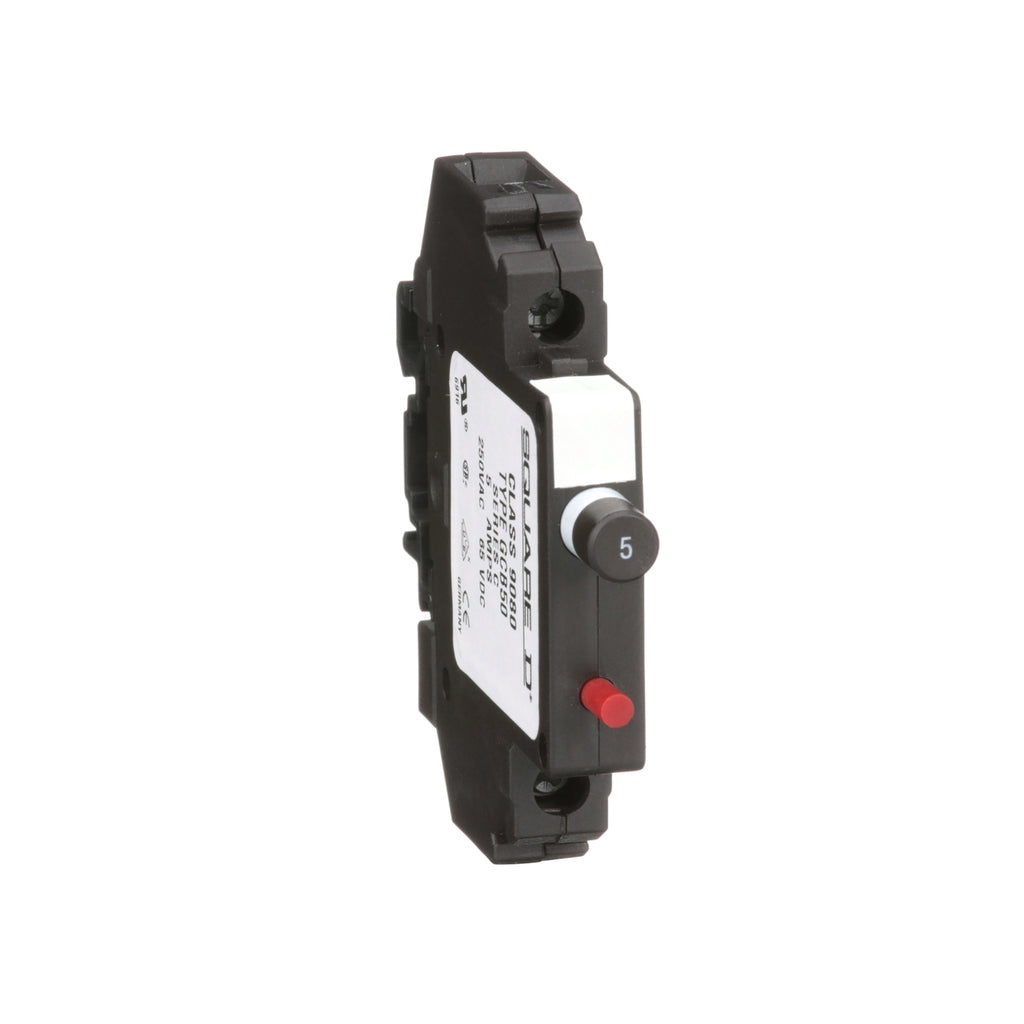

9080GCB50 - Schneider Electric - Square D Linergy Circuit Protector
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 5.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
GENERAL SPECIFICATIONS
| Range of Product | 9080GCB |
|---|---|
| Product or Component Type | Circuit Protector |
| Trip Unit Type | Thermal-magnetic |
| Electrical Connection | Box lugs |
| Protection Type | Overcurrent |
|---|---|
| Contact operation | Trip-free |
| Device Application | Industrial Application |
| Line Rated Current | 5 A |
| Number of Poles | 1P |
| Votlage Rating | 250 V AC 65 V DC |
| Wire Size | AWG 16...AWG 10 copper |
| Wire stripping length | 0.5 in (12.7 mm) |
| Terminal Tightening Torque | Control circuit 7 lbf.in (0.8 N.m) cage type connector |
| Terminal Rating | Factory wiring only |
| Operating Temperature | -22…140 °F (-30…60 °C) |
| Calibration Temperature | 70 °F (21 °C) |
| Mounting Support | 35 mm DIN rail 9080GH track |
| Height | 3.45 in (87.63 mm) |
| Width | 3.15 in (80.01 mm) |
| Depth | 0.5 in (12.7 mm) |
| Product Certifications | UL recognized E233026 CCN QVNU2 CSA file 025490 class 3211 07 CE |
|---|---|
| Standards | UL 1077 CSA C22.2 No 235 DIN 57470 |
| Category | US10CP521703 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901481027 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.00 in (2.54 cm) |
| Package 1 Width | 3.40 in (8.636 cm) |
| Package 1 Length | 3.70 in (9.398 cm) |
| Package 1 Weight | 2.560 oz (72.575 g) |
