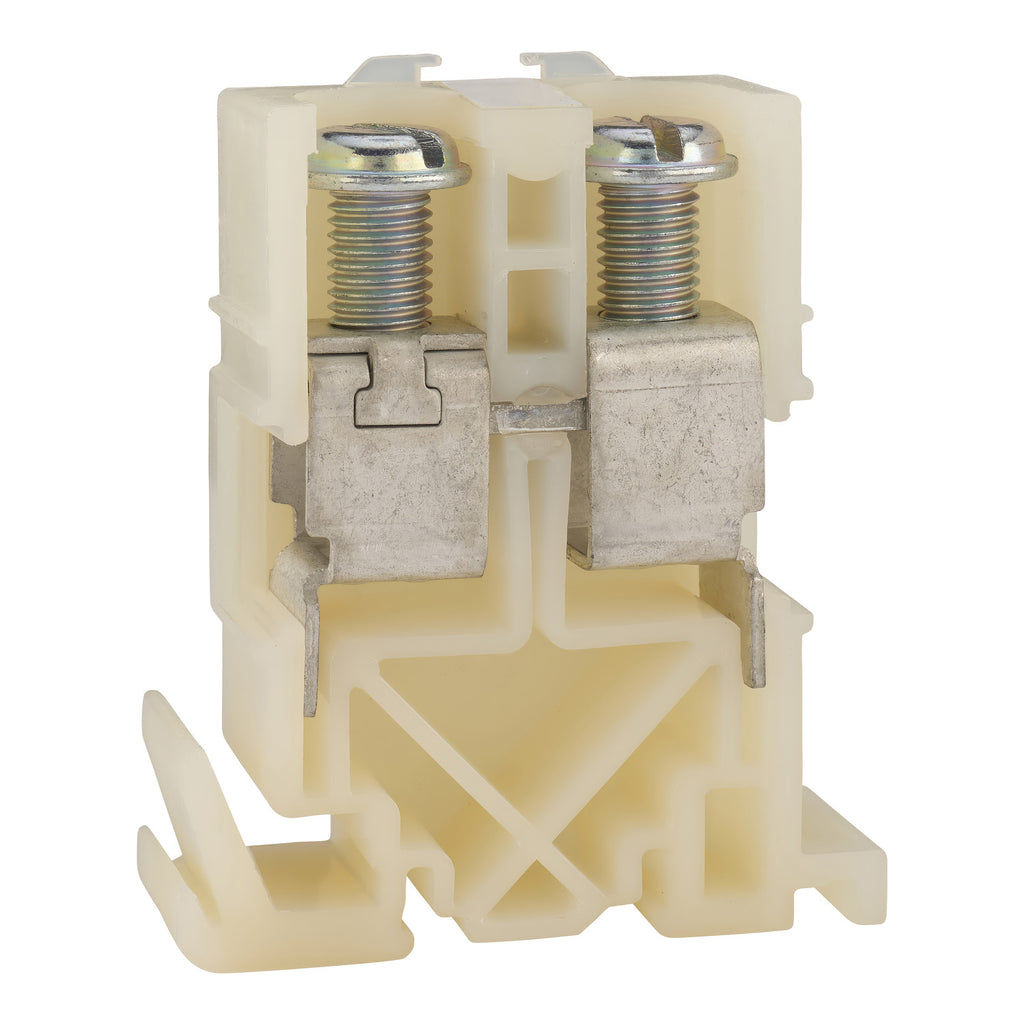

9080GD6 - Schneider Electric - 180 Amp 600 Volt Square D Terminal Block
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
GENERAL SPECIFICATIONS
| Range of Product | 9080G |
|---|---|
| Product Type | Terminal block |
| Localisation on Device | Standard |
| Color | Natural |
| Quantity | Set of 10 |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Current Rating | 180 A UL 170 A CSA |
| Wire Size | AWG 12...AWG 1/0 copper |
| Mounting Type | 35 mm DIN rail 9080GH track |
| Certifications | UL recognized E60616 CCN XCFR2 CE CSA file 62144 class 6228 01 |
| Electrical Connection | Tin plated steel box lugs |
| Material | Nylon: block Tin plated copper: busbar |
| Ambient air temperature for operation | -40…125 °C (-40…257 °F) |
| Electrical Connrection Tightening Torque | Lug tin plated steel 45…50 lbf.in (5.08…5.6 N.m) : AWG 12...AWG 1/0 copper) |
| Height | 2.71 in (68.83 mm) |
| Width | 2.12 in (53.85 mm) |
| Depth | 0.7 in (17.8 mm) |
| Density | 17 per foot |
| Compatible End Barrier | GD6B |
| Category | US10CP521702 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901155027 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.200 in (5.588 cm) |
| Package 1 Width | 2.600 in (6.604 cm) |
| Package 1 Length | 7.500 in (19.050 cm) |
| Package 1 Weight | 24.176 oz (685.378 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.400 in (6.096 cm) |
| Package 2 Width | 2.600 in (6.604 cm) |
| Package 2 Length | 7.500 in (19.050 cm) |
| Package 2 Weight | 23.520 oz (666.780 g) |
