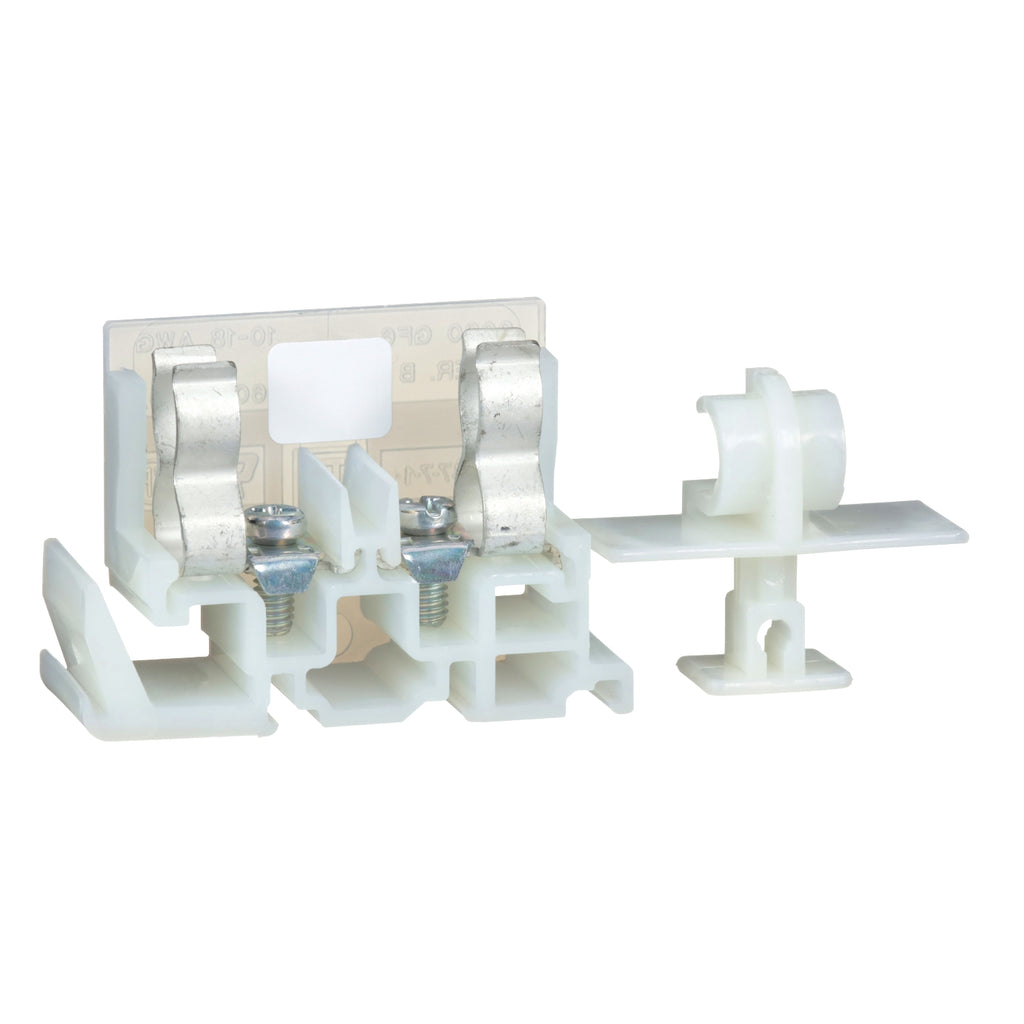

9080GF6 - Schneider Electric - Square D Square D Linergy Terminal Block
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
GENERAL SPECIFICATIONS
| Range of Product | 9080G |
|---|---|
| Product Type | Terminal block |
| Localisation on Device | Fusible |
| Color | Natural |
| Quantity | Set of 10 |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Current Rating | 30 A UL 30 A CSA |
| Wire Size | AWG 18...AWG 10 copper |
| Mounting Type | 35 mm DIN rail 9080GH track |
| Certifications | CSA file 62144 class 6228 01 CE UL recognized E60616 CCN XCFR2 |
| Protection Type | Fingersafe DIN 57470 |
| Electrical Connection | pressure wire clamp |
| Material | Nylon: block Tin plated copper: busbar |
| Ambient air temperature for operation | -40…221 °F (-40…105 °C) |
| Electrical Connrection Tightening Torque | Clamp terminal zinc plated steel 18…20 lbf.in (2.03…2.3 N.m) : AWG 18...AWG 10 copper) |
| Height | 2.33 in (59.18 mm) |
| Width | 2.19 in (55.63 mm) |
| Depth | 0.75 in (19.05 mm) |
| Density | 16 per foot |
| Compatible End Barrier | GF6B |
| Category | US10CP521702 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901155034 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.800 in (2.032 cm) |
| Package 1 Width | 2.100 in (5.334 cm) |
| Package 1 Length | 2.300 in (5.842 cm) |
| Package 1 Weight | 9.600 oz (272.155 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.30 in (5.842 cm) |
| Package 2 Width | 2.60 in (6.604 cm) |
| Package 2 Length | 7.50 in (19.050 cm) |
| Package 2 Weight | 9.600 oz (272.155 g) |
PRODUCT DATASHEET
