9080GH700 - Schneider Electric - 2 Pole Square D Linergy Terminal Block

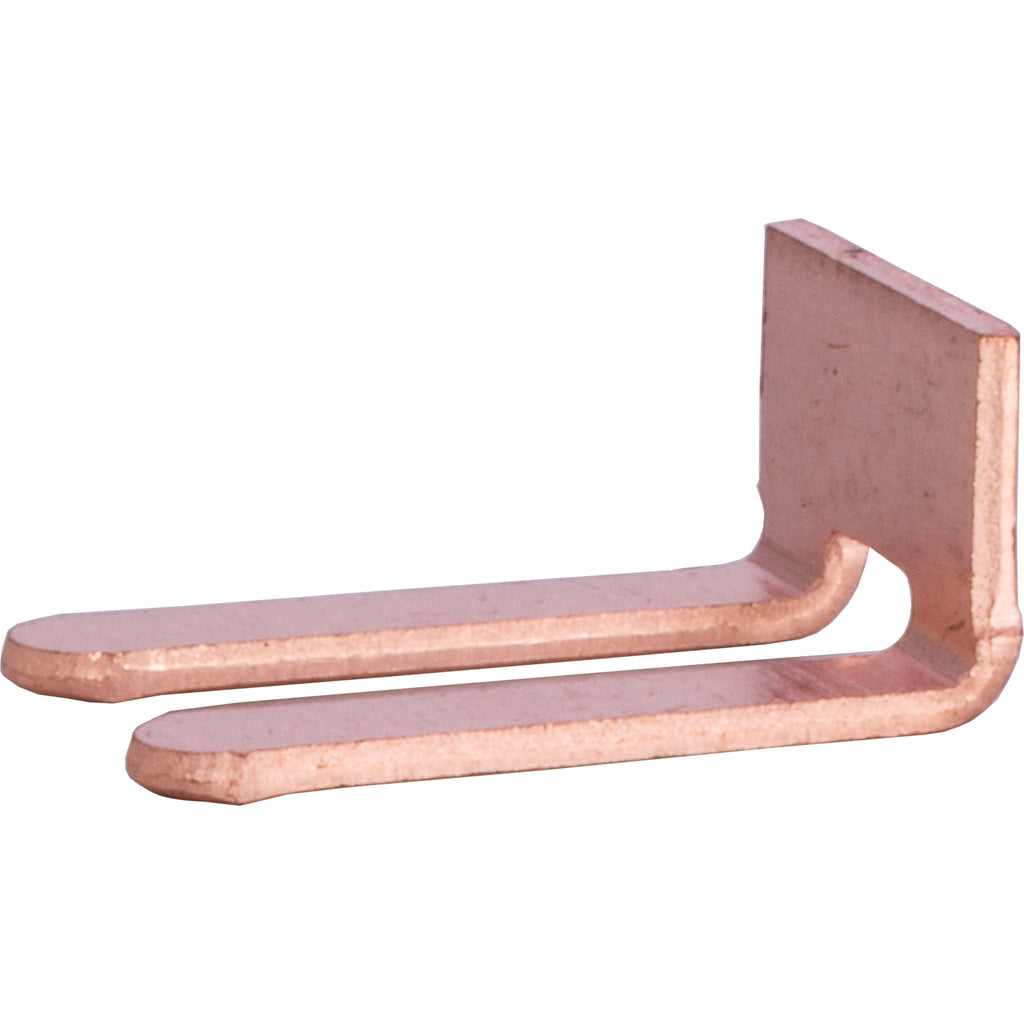

Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. Terminal block jumpers are used to make one side of several terminal blocks to have a common source. This 2 pole jumper is made of copper. The spacing of this jumper is designed to work with 9080GM6 terminal block. This jumper will carry the 30 amperes of the 9080GM6 terminal block.
GENERAL SPECIFICATIONS
Main
| Range |
9080G |
| Product |
Jumper |
| Quantity per Set |
Set of 20 |
Complementary
| Material |
Copper |
| Height |
0.25 in (6.35 mm) |
| Width |
0.58 in (14.73 mm) |
| Depth |
0.34 in (8.64 mm) |
Ordering and shipping details
| Category |
US10CP521702 |
| Discount Schedule |
0CP5 |
| GTIN |
785901744047 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.30 in (0.762 cm) |
| Package 1 Width |
0.50 in (1.27 cm) |
| Package 1 Length |
0.20 in (0.508 cm) |
| Package 1 Weight |
0.160 oz (4.536 g) |
PRODUCT DATASHEET
9080GH700_Product Datasheet
