Description

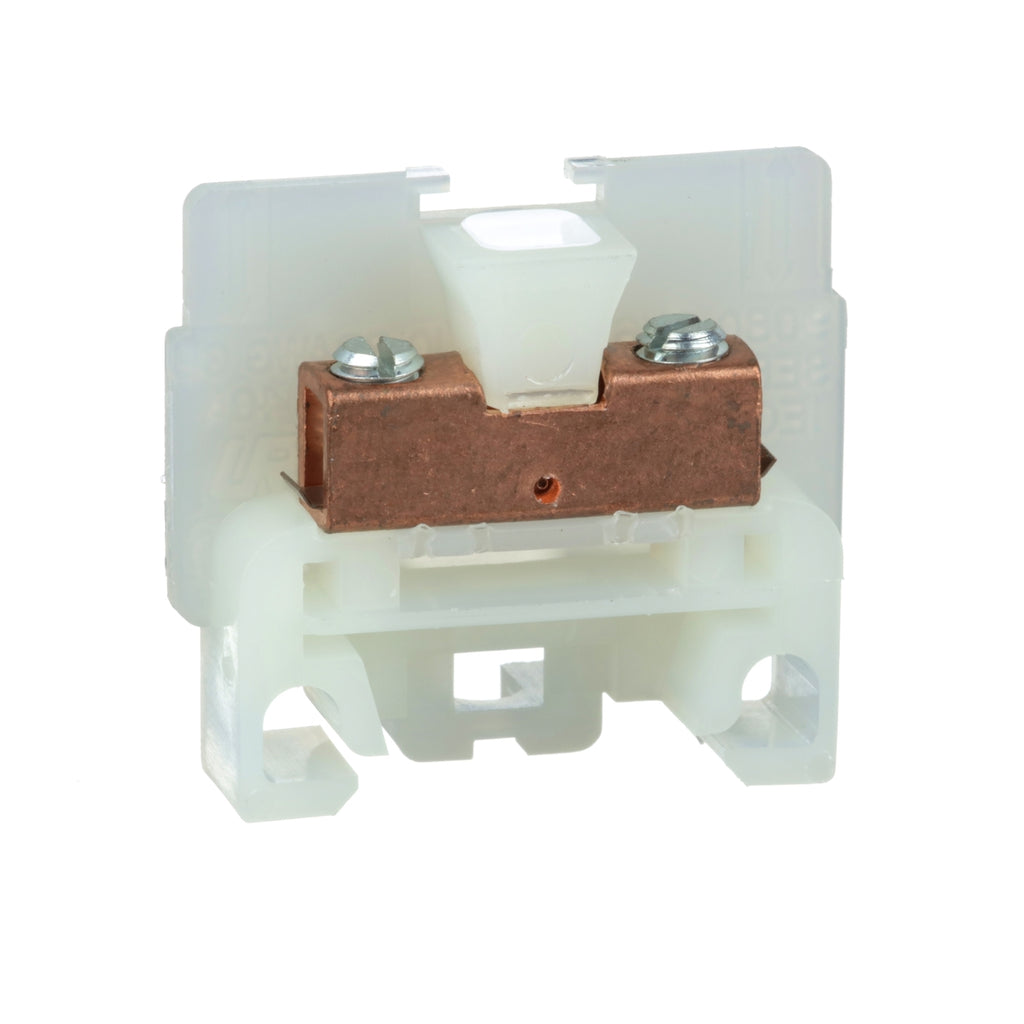

9080GK6 - Schneider Electric - Square D Linergy Terminal Block
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
GENERAL SPECIFICATIONS
| Range of Product | 9080G |
|---|---|
| Product Type | Terminal block |
| Localisation on Device | Standard |
| Color | Natural |
| Quantity | Set of 50 |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Current Rating | 40 A CSA 70 A UL |
| Wire Size | AWG 22...AWG 10 copper |
| Mounting Type | 9080GH track Panel |
| Certifications | CSA file 62144 class 6228 01 CE UL recognized E60616 CCN XCFR2 |
| Electrical Connection | Copper box lugs |
| Material | Nylon: block |
| Ambient air temperature for operation | -40…125 °C (-40…257 °F) |
| Electrical Connrection Tightening Torque | Lug copper 11…12 lbf.in (1.2…1.4 N.m) : AWG 22...AWG 10 copper) |
| Height | 1.39 in (35.31 mm) |
| Width | 1.4 in (35.6 mm) |
| Depth | 0.35 in (8.89 mm) |
| Density | 35 per foot |
| Compatible End Barrier | GK6B |
| Category | US10CP521702 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901000822 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.40 in (3.556 cm) |
| Package 1 Width | 4.20 in (10.668 cm) |
| Package 1 Length | 6.90 in (17.526 cm) |
| Package 1 Weight | 19.360 oz (548.846 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 1.40 in (3.556 cm) |
| Package 2 Width | 4.30 in (10.922 cm) |
| Package 2 Length | 7.00 in (17.780 cm) |
| Package 2 Weight | 19.680 oz (557.918 g) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 10000 |
| Package 3 Height | 40.00 in (101.600 cm) |
| Package 3 Width | 40.00 in (101.600 cm) |
| Package 3 Length | 48.00 in (121.920 cm) |
| Package 3 Weight | 246.0008 lb(US) (111.584 kg) |
