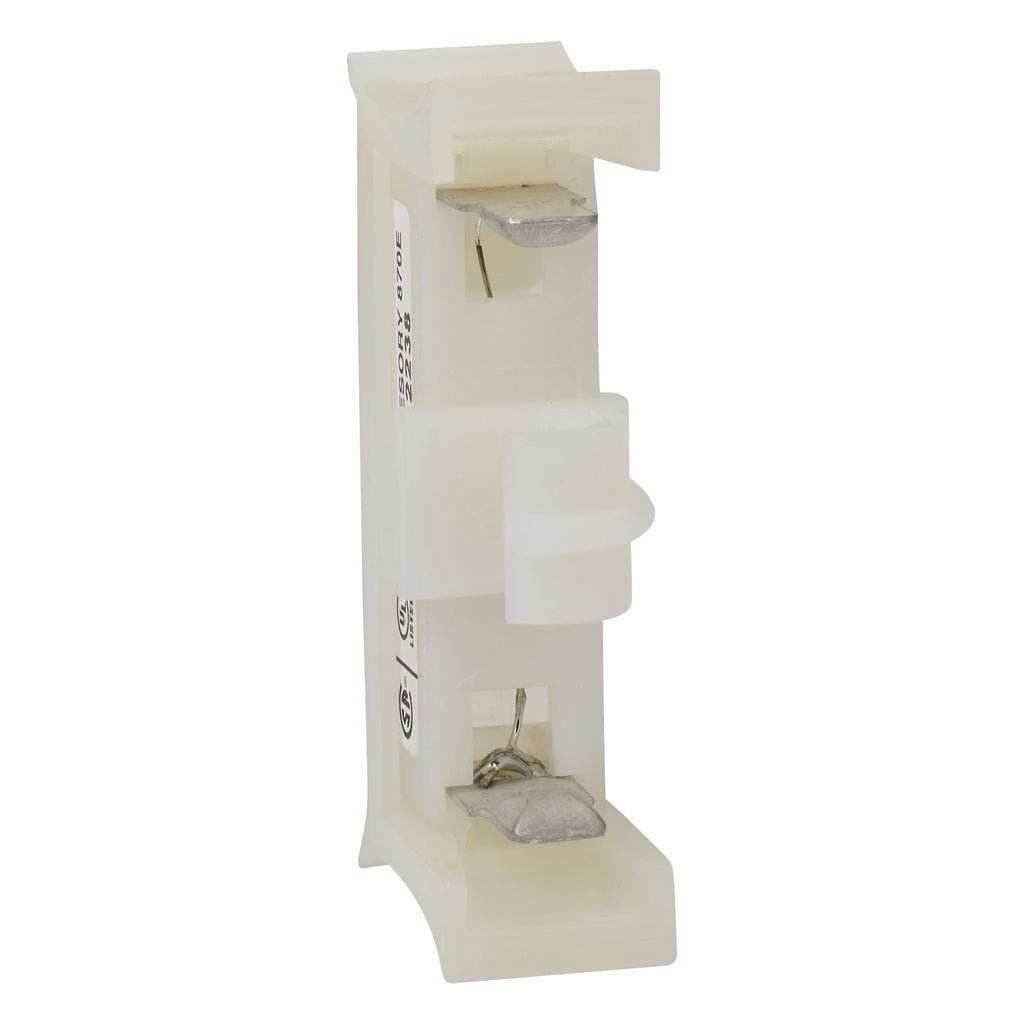

9080GLP3 - Schneider Electric - 240V Square D Linergy Terminal Block
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This blown fuse indicator is designed to work with the 9080GF6 sectional fuse holder terminal block to easily identify a fuse that has blown. This indicator combines a blown fuse indicator and a fuse puller into one device. When a fuse blows this indicator will illuminate. This blown fuse indicator can be used with circuit voltages from 120 to 240 volts. The blown fuse indicator will replace the 9080GH63 fuse puller that is supplied with the 9080GF6 fuse holder. This blown fuse indicator is UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range |
9080G |
| Product |
Blown Fuse Indicator |
| Quantity per Set |
Set of 10 |
Complementary
| Material |
Nylon |
| Height |
1.17 in (29.72 mm) |
| Width |
0.64 in (16.26 mm) |
| Depth |
2.4 in (61.0 mm) |
Ordering and shipping details
| Category |
US10CP521702 |
| Discount Schedule |
0CP5 |
| GTIN |
785901489672 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.50 in (6.350 cm) |
| Package 1 Width |
2.50 in (6.350 cm) |
| Package 1 Length |
3.40 in (8.636 cm) |
| Package 1 Weight |
0.320 oz (9.072 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
2.50 in (6.350 cm) |
| Package 2 Width |
2.50 in (6.350 cm) |
| Package 2 Length |
3.40 in (8.636 cm) |
| Package 2 Weight |
4.800 oz (136.078 g) |
PRODUCT DATASHEET
9080GLP3_Product Datasheet
