Description

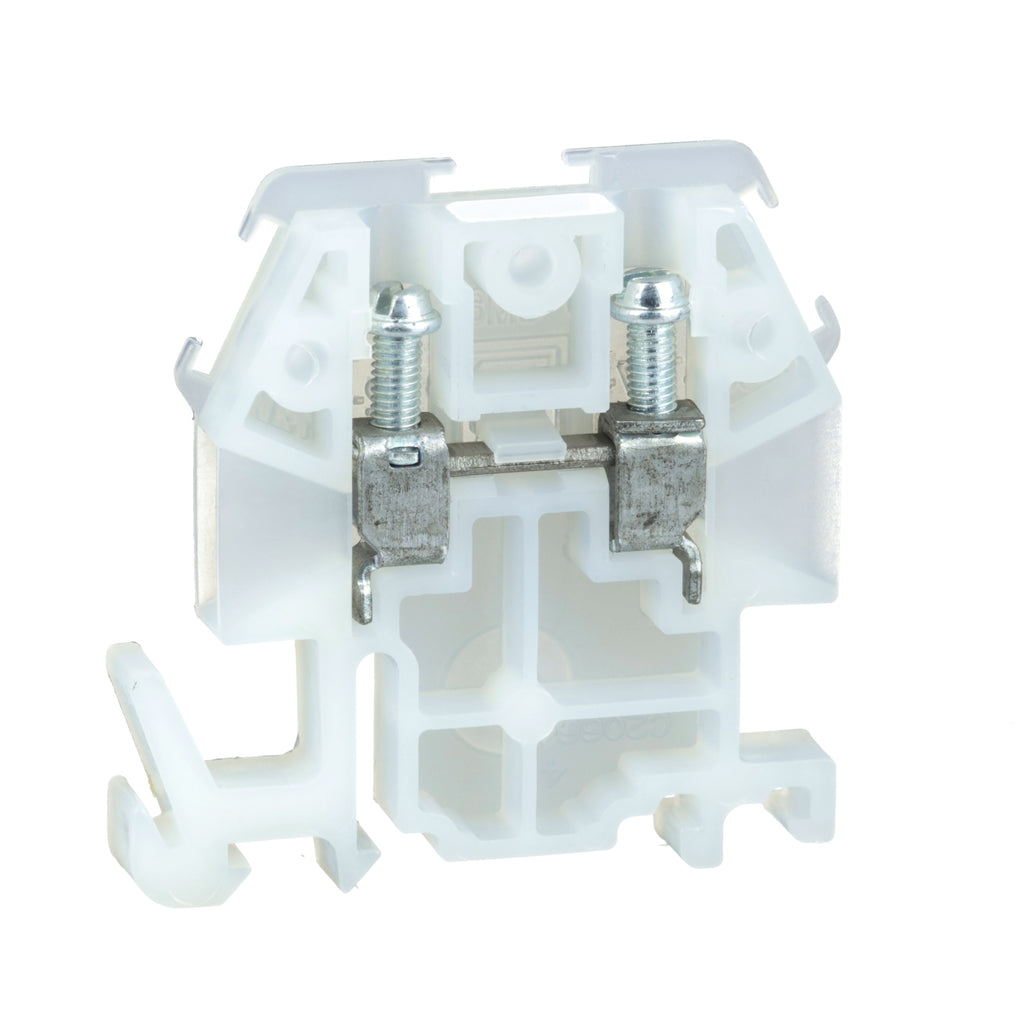

9080GM6 - Schneider Electric - 30A Square D Linergy Terminal Block
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
GENERAL SPECIFICATIONS
| Range of Product | 9080G |
|---|---|
| Product Type | Terminal block |
| Localisation on Device | Standard |
| Color | Natural |
| Quantity | Set of 50 |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Current Rating | 30 A UL 30 A CSA |
| Wire Size | AWG 22...AWG 10 copper |
| Mounting Type | 9080GH track 35 mm DIN rail |
| Certifications | CE CSA file 62144 class 6228 01 UL recognized E60616 CCN XCFR2 |
| Protection Type | Fingersafe DIN 57470 |
| Electrical Connection | Zinc plated steel box lugs |
| Material | Nylon: block Tin plated brass: busbar |
| Ambient air temperature for operation | -40…257 °F (-40…125 °C) |
| Electrical Connrection Tightening Torque | Lug zinc plated steel 7…8 lbf.in (0.8…0.9 N.m) : AWG 22...AWG 10 copper) |
| Height | 1.82 in (46.23 mm) |
| Width | 1.72 in (43.69 mm) |
| Depth | 0.235 in (5.969 mm) |
| Density | 51 per foot |
| Compatible End Barrier | GM6B |
| Category | US10CP521702 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901743927 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.300 in (0.762 cm) |
| Package 1 Width | 1.600 in (4.064 cm) |
| Package 1 Length | 1.600 in (4.064 cm) |
| Package weight(Lbs) | 0.320 oz (9.072 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 700 |
| Package 2 Height | 6.000 in (15.240 cm) |
| Package 2 Width | 12.300 in (31.242 cm) |
| Package 2 Length | 15.800 in (40.132 cm) |
| Package 2 Weight | 13.629 lb(US) (6.182 kg) |
