9080GM6B - Schneider Electric - Square D End Barrier

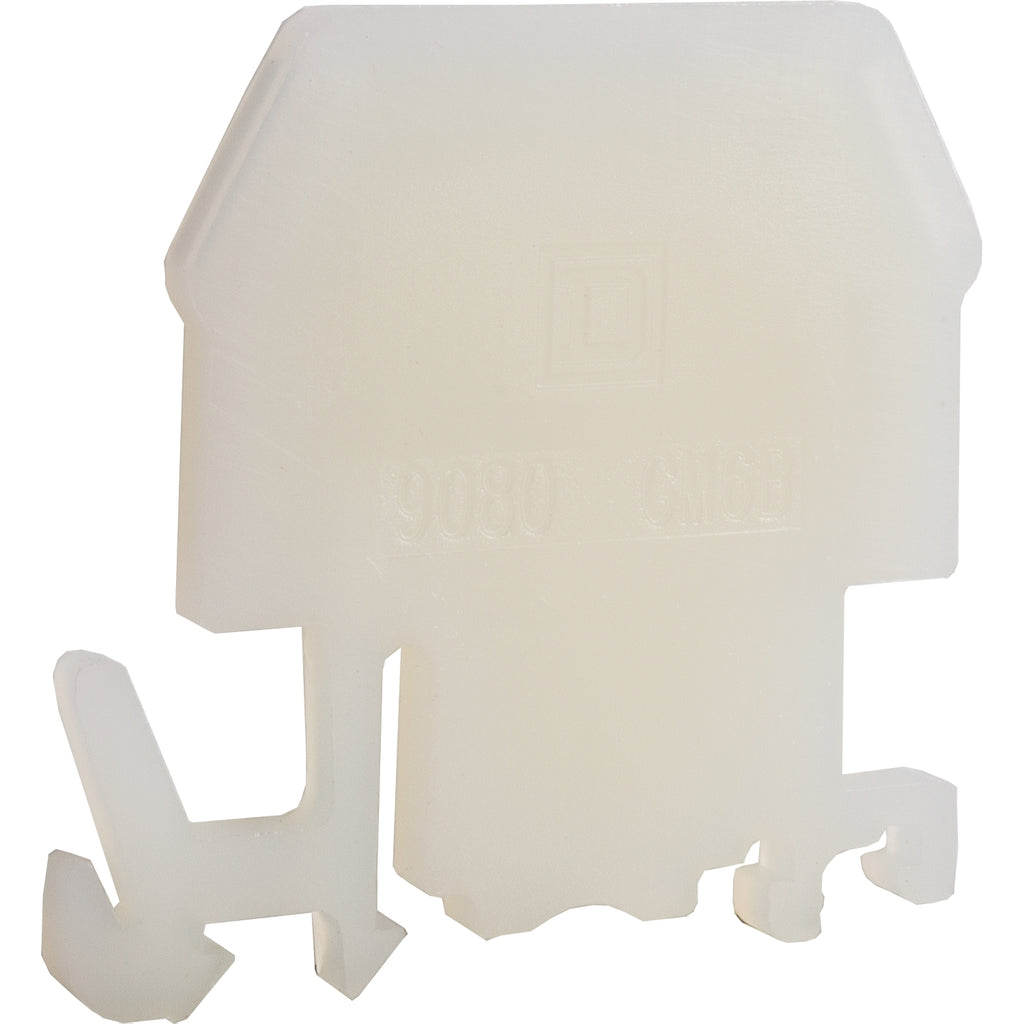

Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GM6 or 9080GR6 terminal block. An end barrier is required at the end of all assemblies of 9080GM6 or 9080GR6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in the natural color of nylon (off white).
GENERAL SPECIFICATIONS
Main
| Range of Product |
9080G |
| Product or Component Type |
End Barrier |
Complementary
| Material |
Nylon |
| Color |
Natural |
| Package Quantity |
Set of 10 |
| Mounting Type |
9080GH track
35 mm DIN rail |
| Height |
1.67 in (42.42 mm) |
| Width |
1.68 in (42.67 mm) |
| Depth |
0.12 in (3.05 mm) |
Environment
| Ambient air temperature for operation |
-40…257 °F (-40…125 °C) |
Ordering and shipping details
| Category |
US10CP521702 |
| Discount Schedule |
0CP5 |
| GTIN |
785901744023 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.000 in (5.080 cm) |
| Package 1 Width |
1.800 in (4.572 cm) |
| Package 1 Length |
2.400 in (6.096 cm) |
| Package 1 Weight |
0.160 oz (4.536 g) |
