9080GR6 - Schneider Electric - Square D Motor Control Part And Accessory

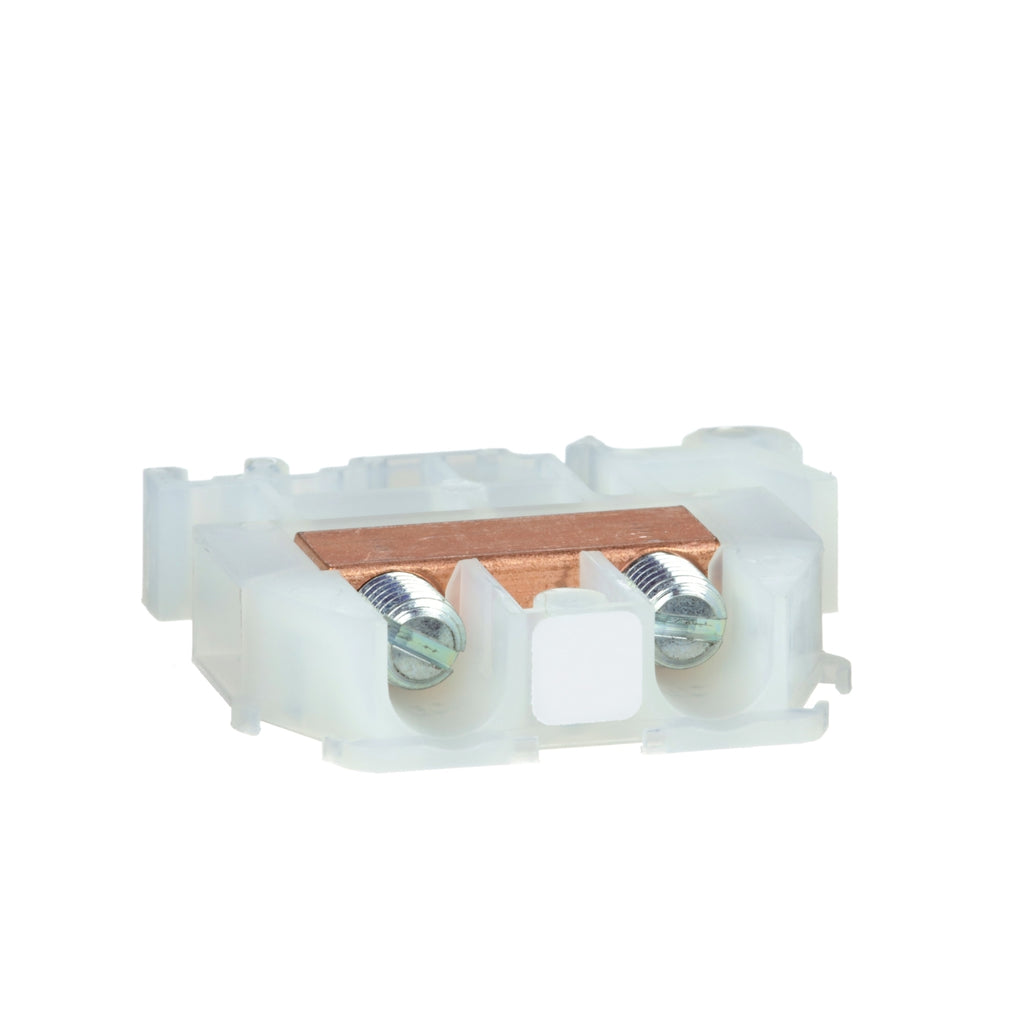

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
GENERAL SPECIFICATIONS
| Range of Product | 9080G |
|---|---|
| Product Type | Terminal block |
| Localisation on Device | Standard |
| Color | Natural |
| Quantity | Set of 50 |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Current Rating | 60 A UL 60 A CSA |
| Wire Size | AWG 22...AWG 8 copper |
| Mounting Type | 35 mm DIN rail 9080GH track |
| Certifications | UL recognized E60616 CCN XCFR2 CE CSA file 62144 class 6228 01 |
| Protection Type | Fingersafe DIN 57470 |
| Electrical Connection | Copper box lugs |
| Material | Nylon: block |
| Ambient air temperature for operation | -40…257 °F (-40…125 °C) |
| Electrical Connrection Tightening Torque | Lug copper 18…20 lbf.in (2.03…2.3 N.m) : AWG 22...AWG 8 copper) |
| Height | 1.82 in (46.23 mm) |
| Width | 1.72 in (43.69 mm) |
| Depth | 0.35 in (8.89 mm) |
| Density | 34 per foot |
| Compatible End Barrier | GM6B |
| Net Weight | 0.02 lb(US) (0.01 kg) |
| Category | US10CP521702 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 785901000716 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.4 in (1.1 cm) |
| Package 1 Width | 1.7 in (4.4 cm) |
| Package 1 Length | 1.7 in (4.4 cm) |
| Package weight(Lbs) | 0.5 oz (14 g) |
PRODUCT DATASHEET
