9080LBA165112 - Square D - 380A 600V 1-Pole 12-Load Power Distribution Block
Roll over image to zoom in Click on image to zoom
9080LBA165112 - Square D - 380A 600V 1-Pole 12-Load Power Distribution Block

9080LBA165112 - Square D - 380A 600V 1-Pole 12-Load Power Distribution Block

Square DSKU: SQD9080LBA165112
Price:
$105.20
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

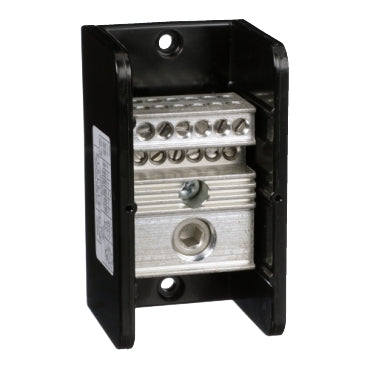

9080LBA165112 - Square D - 380A 600V 1-Pole 12-Load Power Distribution Block

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 500 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to 2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 380 amperes with copper wire and 310 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

GENERAL SPECIFICATIONS

Main
Range 9080LB
Product Power Distribution Block
Current Rating 380 A copper
310 A aluminium
Short Circuit Current Rating 65 kA
Complementary
Voltage Rating 600 V AC/DC
Mounting Type Surface mount
Number of poles 1
Terminals per Pole 1 line
12 load
Wire Size Line 1, AWG 4...500 kcmil, copper or aluminium
Load 12, AWG 14...AWG 2, copper or aluminium
Electrical Connection Tin plated aluminium lugs
SCCR 100 kA UL 508 A
Ambient Air Temperature for Operation -40...302 degF (-40...150 degC)
Block Material Phenolic: block
Terminal Tightening Torque Load lug 50 lbf.in (5.6 N.m) AWG 3...AWG 2 copper or aluminium
Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium
Load lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium
Load lug 35 lbf.in (4.0 N.m) AWG 14...AWG 10 copper or aluminium
Line lug 375 lbf.in (42.4 N.m) AWG 4...500 kcmil copper or aluminium
Wire stripping length Line: 1.31 in (33.27 mm)
Load: 0.75 in (19.05 mm) for top connection
Load: 1.19 in (30.23 mm) for bottom connection
Height 5.5 in (139.7 mm)
Width 3.17 in (80.52 mm)
Depth 3.13 in (79.50 mm)
End Barrier 9080LB51
Environment
Certifications CSA file 70361 class 6228 01
UL recognized E60616 CCN XCFR2
CE
Ordering and shipping details
Category US10CP121711
Discount Schedule 0CP1
GTIN 785901097365
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.100 in (7.874 cm)
Package 1 Width 3.200 in (8.128 cm)
Package 1 Length 5.50 in (13.97 cm)
Package weight(Lbs) 24.160 oz (684.925 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 12
Package 2 Height 13.300 in (33.782 cm)
Package 2 Width 9.50 in (24.13 cm)
Package 2 Length 12.100 in (30.734 cm)
Package 2 Weight 19.449 lb(US) (8.822 kg)
