Description

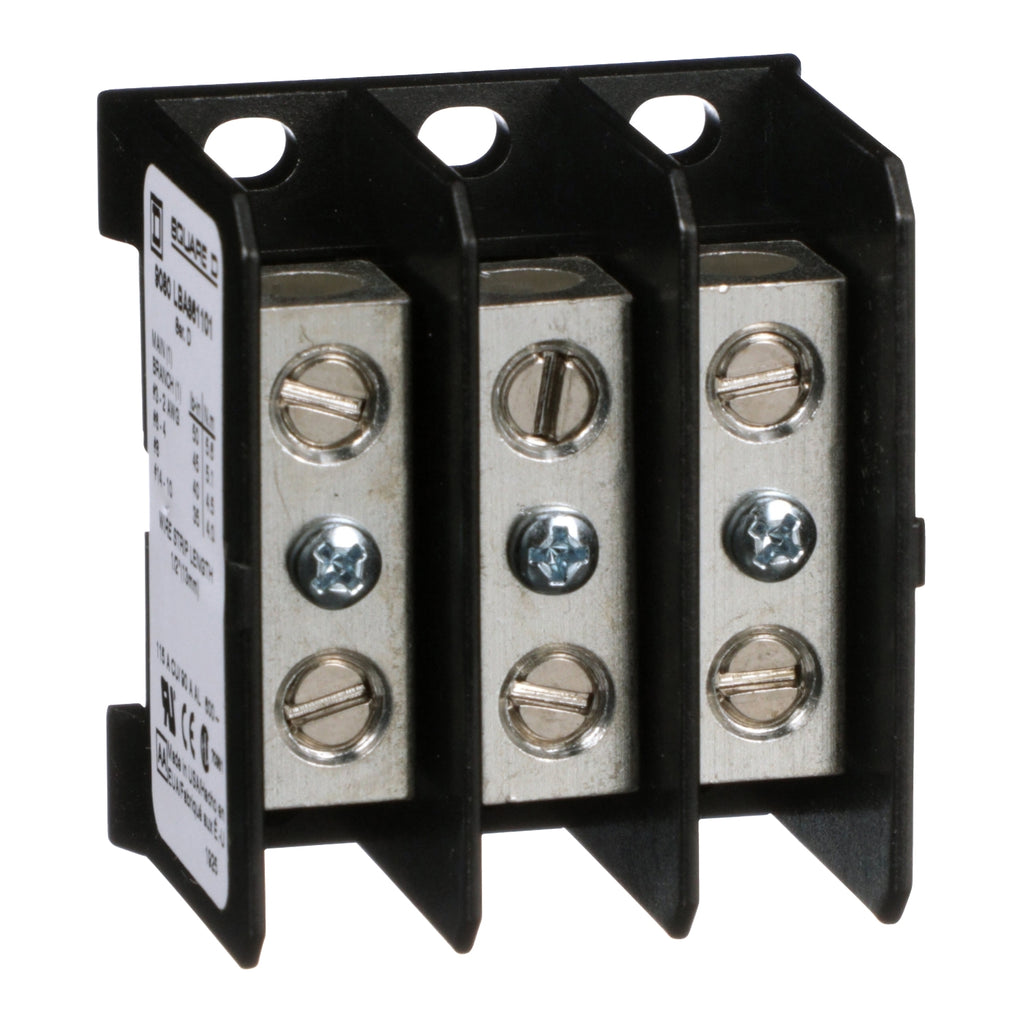

9080LBA361101 - Schneider Electric - Square D Power Distribution Block
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wires. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9080LB |
|---|---|
| Product | Miniature Power Distribution Block |
| Current Rating | 115 A copper 90 A aluminium |
| Short Circuit Current Rating | 65 kA |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 3 |
| Terminals per Pole | 1 line 1 load |
| Wire Size | Line 1, AWG 14...AWG 2, copper or aluminium Load 1, AWG 14...AWG 2, copper or aluminium |
| Electrical Connection | Tin plated aluminium lugs |
| SCCR | 100 kA UL 508 A |
| Ambient air temperature for operation | -40…257 °F (-40…125 °C) |
| Block Material | Thermoplastic: block |
| Terminal Tightening Torque | Line lug 50 lbf.in (5.6 N.m) AWG 3...AWG 2 copper or aluminium Line lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium Line lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 14 copper Load lug 50 lbf.in (5.6 N.m) AWG 3...AWG 2 copper or aluminium Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium Load lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 14 copper |
| Wire stripping length | Line: 0.5 in (12.7 mm) |
| Height | 2.29 in (58.17 mm) |
| Width | 2.12 in (53.85 mm) |
| Depth | 1.62 in (41.15 mm) |
| End Barrier | 9080LB13 |
| Certifications | UL recognized E60616 CCN XCFR2 CE CSA file 70361 class 6228 01 |
|---|
| Category | US10CP121711 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901097426 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.300 in (5.842 cm) |
| Package 1 Width | 1.50 in (3.81 cm) |
| Package 1 Length | 2.100 in (5.334 cm) |
| Package 1 Weight | 3.52 oz (99.79 g) |
