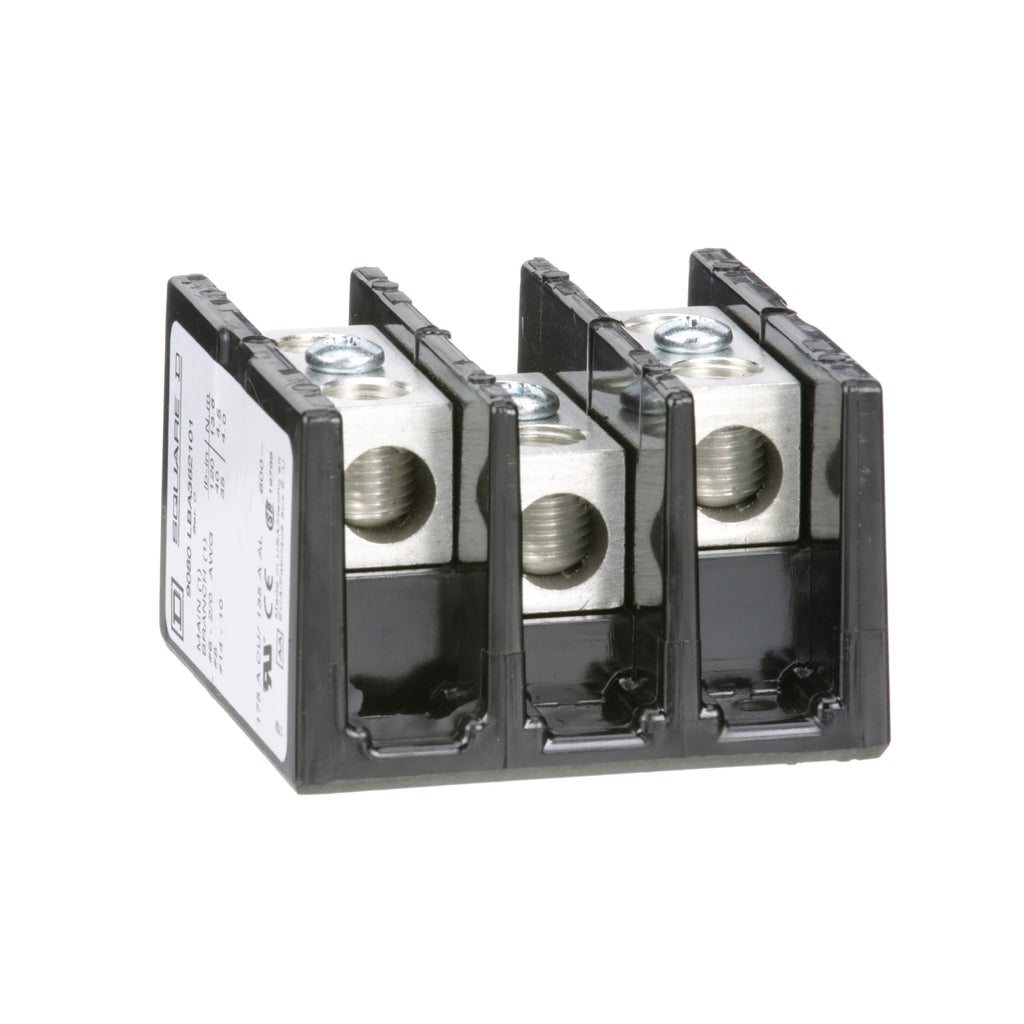

9080LBA362101 - Schneider Electric - Amp 600 Volt Square D Power Distribution Block
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one or two #14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9080LB |
|---|---|
| Product | Power Distribution Block |
| Current Rating | 175 A copper 135 A aluminium |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 3 |
| Terminals per Pole | 1 line 1 load |
| Wire Size | Line 2, AWG 14...AWG 2/0, copper or aluminium Load 1, AWG 14...AWG 2/0, copper or aluminium |
| Electrical Connection | Tin plated aluminium lugs |
| SCCR | 65 kA UL 508 A |
| Ambient air temperature for operation | -40…302 °F (-40…150 °C) |
| Block Material | Phenolic: block |
| Terminal Tightening Torque | Line lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 14 copper Load lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 14 copper Line lug 120 lbf.in (13.6 N.m) AWG 6...AWG 2/0 copper or aluminium Load lug 120 lbf.in (13.6 N.m) AWG 6...AWG 2/0 copper or aluminium |
| Wire stripping length | Line: 0.5 in (12.7 mm) Load: 0.5 in (12.7 mm) |
| Height | 2.88 in (73.15 mm) |
| Width | 1.94 in (49.28 mm) |
| Depth | 1.78 in (45.21 mm) |
| End Barrier | 9080LB23 |
| Net Weight | 0.46 lb(US) (0.21 kg) |
| Certifications | CE CSA file 70361 class 6228 01 UL recognized E60616 CCN XCFR2 |
|---|
| Category | US10CP121711 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901097440 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.800 in (4.572 cm) |
| Package 1 Width | 2.900 in (7.366 cm) |
| Package 1 Length | 2.800 in (7.112 cm) |
| Package 1 Weight | 7.520 oz (213.188 g) |
