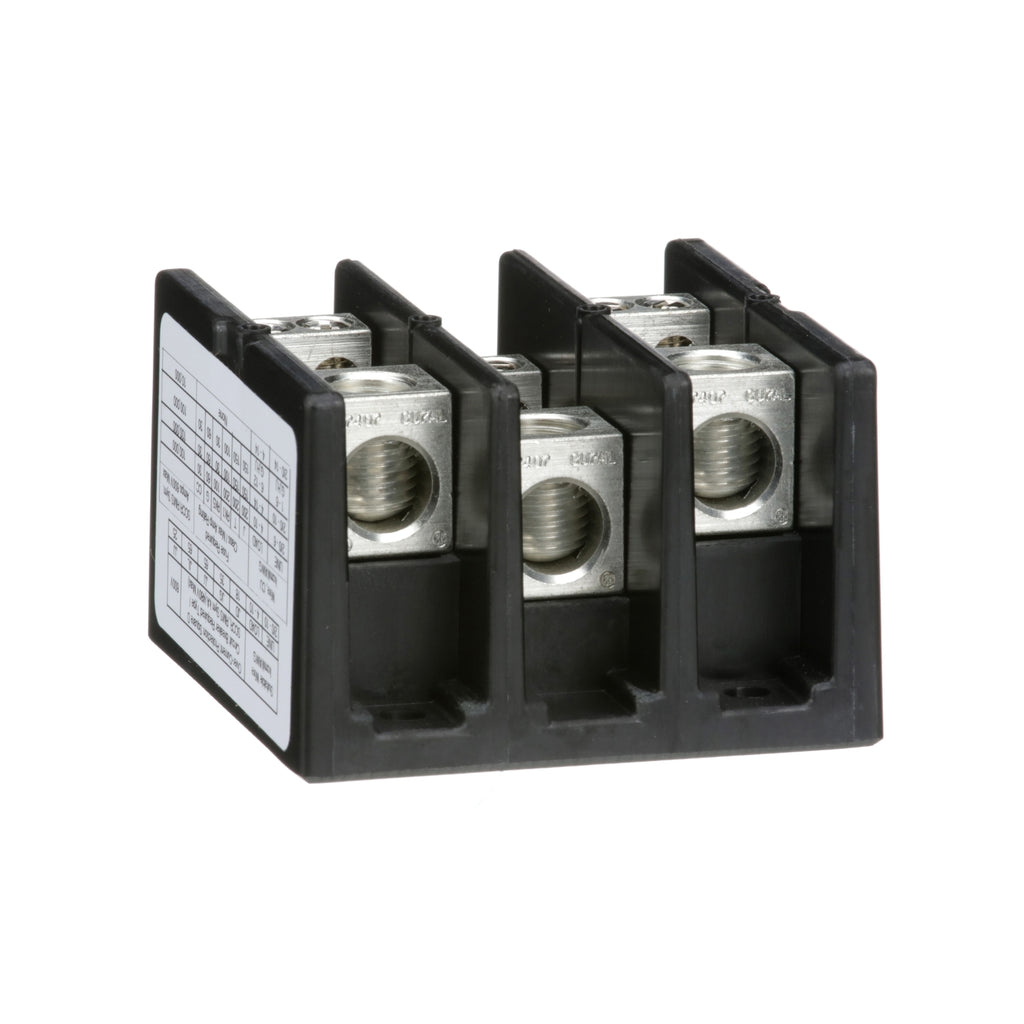

9080LBA362104 - Schneider Electric - 175 Amp 3 Pole 600 Volt Square D Power distribution block
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9080LB |
|---|---|
| Product | Power Distribution Block |
| Current Rating | 175 A copper 135 A aluminium |
| Short Circuit Current Rating | 65 kA |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 3 |
| Terminals per Pole | 1 line 4 load |
| Wire Size | Line 4, AWG 14...AWG 2/0, copper or aluminium Load 2, AWG 14...AWG 4, copper or aluminium |
| Electrical Connection | Tin plated aluminium lugs |
| SCCR | 100 kA UL 508 A |
| Ambient air temperature for operation | -40…302 °F (-40…150 °C) |
| Block Material | Phenolic: block |
| Terminal Tightening Torque | Line lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 14 copper Line lug 120 lbf.in (13.6 N.m) AWG 6...AWG 2/0 copper or aluminium Load lug 120 lbf.in (13.6 N.m) AWG 14...AWG 4 copper |
| Wire stripping length | Line: 0.5 in (12.7 mm) Load: 0.44 in (11.18 mm) for top connection Load: 0.75 in (19.05 mm) for bottom connection |
| Height | 2.88 in (73.15 mm) |
| Width | 1.94 in (49.28 mm) |
| Depth | 1.78 in (45.21 mm) |
| End Barrier | 9080LB23 |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Certifications | CSA file 70361 class 6228 01 UL recognized E60616 CCN XCFR2 CE |
|---|
| Category | US10CP121711 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901097457 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.900 in (4.826 cm) |
| Package 1 Width | 2.800 in (7.112 cm) |
| Package 1 Length | 2.800 in (7.112 cm) |
| Package 1 Weight | 8.000 oz (226.796 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 2.20 in (5.588 cm) |
| Package 2 Width | 5.90 in (14.986 cm) |
| Package 2 Length | 6.00 in (15.240 cm) |
| Package 2 Weight | 33.599 oz (952.543 g) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 7.600 in (19.304 cm) |
| Package 3 Width | 6.450 in (16.383 cm) |
| Package 3 Length | 12.000 in (30.480 cm) |
| Package 3 Weight | 13.0007 lb(US) (5.897 kg) |
