Description

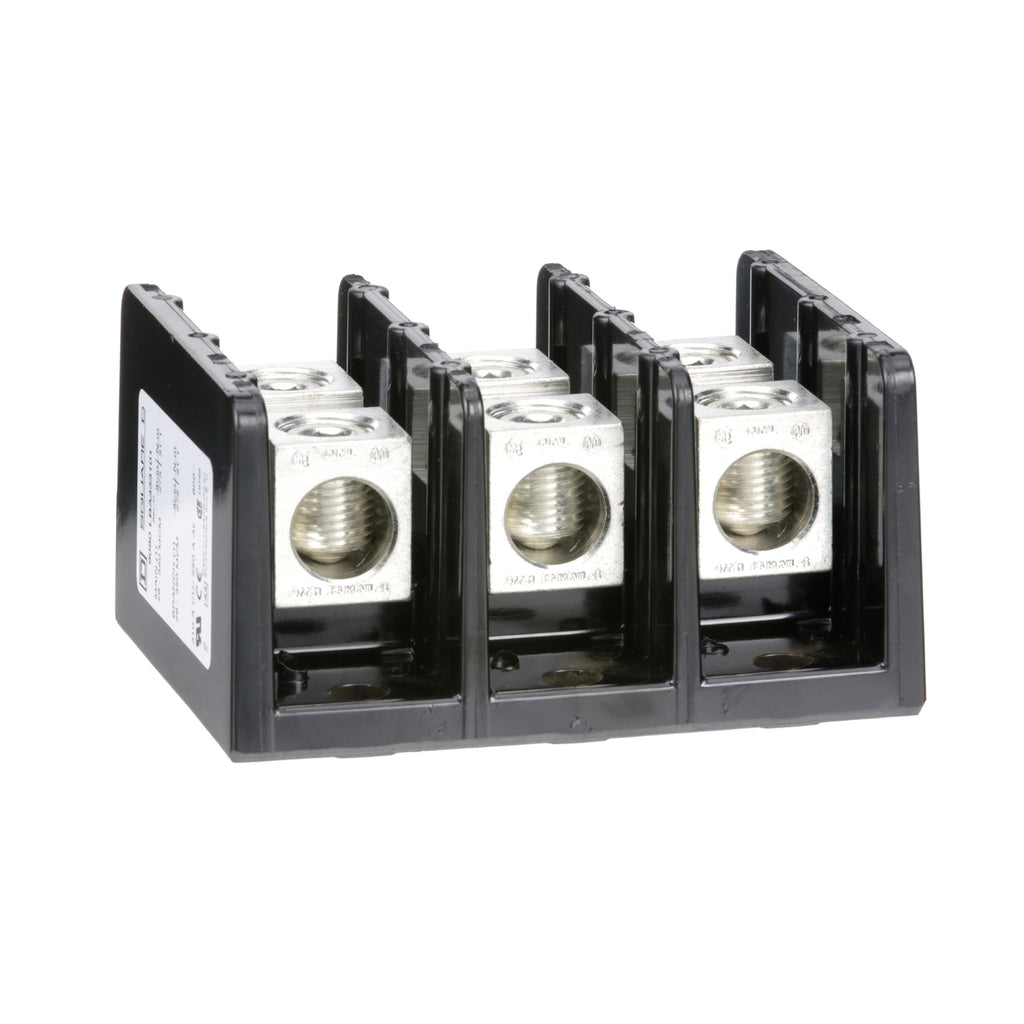

9080LBA363101 - Schneider Electric - Square D Power Distribution Block
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The load side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 310 amperes with copper wire and 250 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Range | 9080LB |
|---|---|
| Product | Power Distribution Block |
| Current Rating | 310 A copper 250 A aluminium |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 3 |
| Terminals per Pole | 1 line 1 load |
| Wire Size | Line 1, AWG 6...350 kcmil, copper or aluminium Load 1, AWG 6...350 kcmil, copper or aluminium |
| Electrical Connection | Tin plated aluminium lugs |
| SCCR | 100 kA UL 508 A |
| Ambient air temperature for operation | -40…302 °F (-40…150 °C) |
| Block Material | Phenolic: block |
| Terminal Tightening Torque | Line lug 275 lbf.in (31.07 N.m) AWG 6...350 kcmil copper or aluminium Load lug 275 lbf.in (31.07 N.m) AWG 6...350 kcmil copper or aluminium |
| Wire stripping length | Line: 1.06 in (26.92 mm) Load: 1.06 in (26.92 mm) |
| Height | 3.38 in (85.85 mm) |
| Width | 1.94 in (49.28 mm) |
| Depth | 2.61 in (66.29 mm) |
| End Barrier | 9080LB33 |
| Net Weight | 1.50 lb(US) (0.68 kg) |
| Certifications | UL recognized E60616 CCN XCFR2 CE CSA file 70361 class 6228 01 |
|---|
| Category | US10CP121711 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901097464 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.00 in (7.62 cm) |
| Package 1 Width | 4.300 in (10.922 cm) |
| Package 1 Length | 5.200 in (13.208 cm) |
| Package 1 Weight | 24.000 oz (680.389 g) |
