9080MH339 - Schneider Electric - Square D Linergy Terminal Block

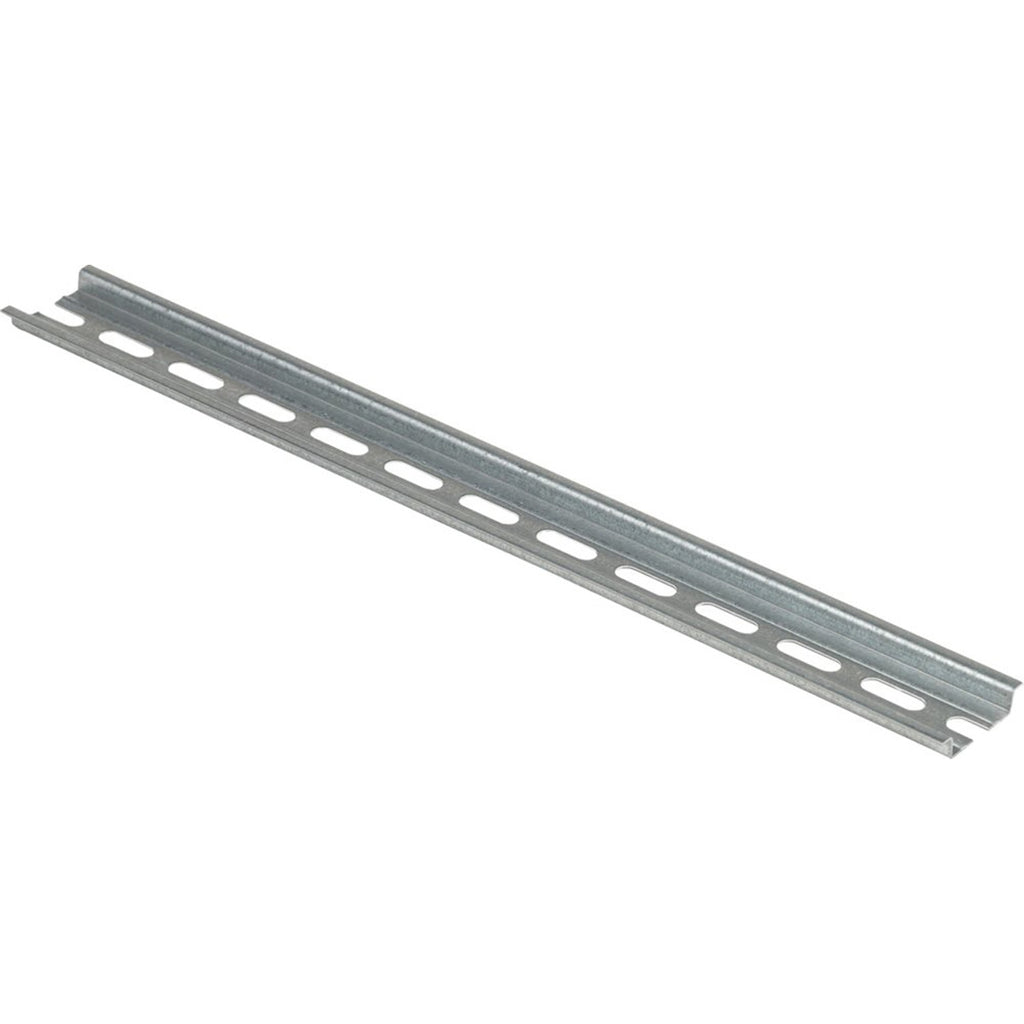

Linergy mounting track is designed to make the mounting of products in a panel easy. This 35 mm DIN3 mounting track is designed to accept most products that mount on 35 mm track. The track is prepunched with oblong slots to make mounting the track to the panel easier. This mounting track is 35 mm wide, 7.5 mm high and 1000 mm long. This track is made of galvanized steel.
GENERAL SPECIFICATIONS
Main
| Range |
9080G |
| Product |
DIN rail |
| Quantity per Set |
Set of 10 |
Complementary
| Material |
Galvanized steel |
| Height |
0.3 in (7.6 mm) |
| Width |
1.38 in (35.05 mm) |
| Length |
39.37 in (1000.00 mm) |
| Net Weight |
0.64 lb(US) (0.29 kg) |
Ordering and shipping details
| Category |
US10CP521716 |
| Discount Schedule |
0CP5 |
| GTIN |
785901035701 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
0.4 in (1.0 cm) |
| Package 1 Width |
1.4 in (3.6 cm) |
| Package 1 Length |
39.4 in (100.1 cm) |
| Package weight(Lbs) |
10.240 oz (290.299 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
2.800 in (7.112 cm) |
| Package 2 Width |
2.800 in (7.112 cm) |
| Package 2 Length |
40.50 in (102.87 cm) |
| Package 2 Weight |
7.710 lb(US) (3.497 kg) |
