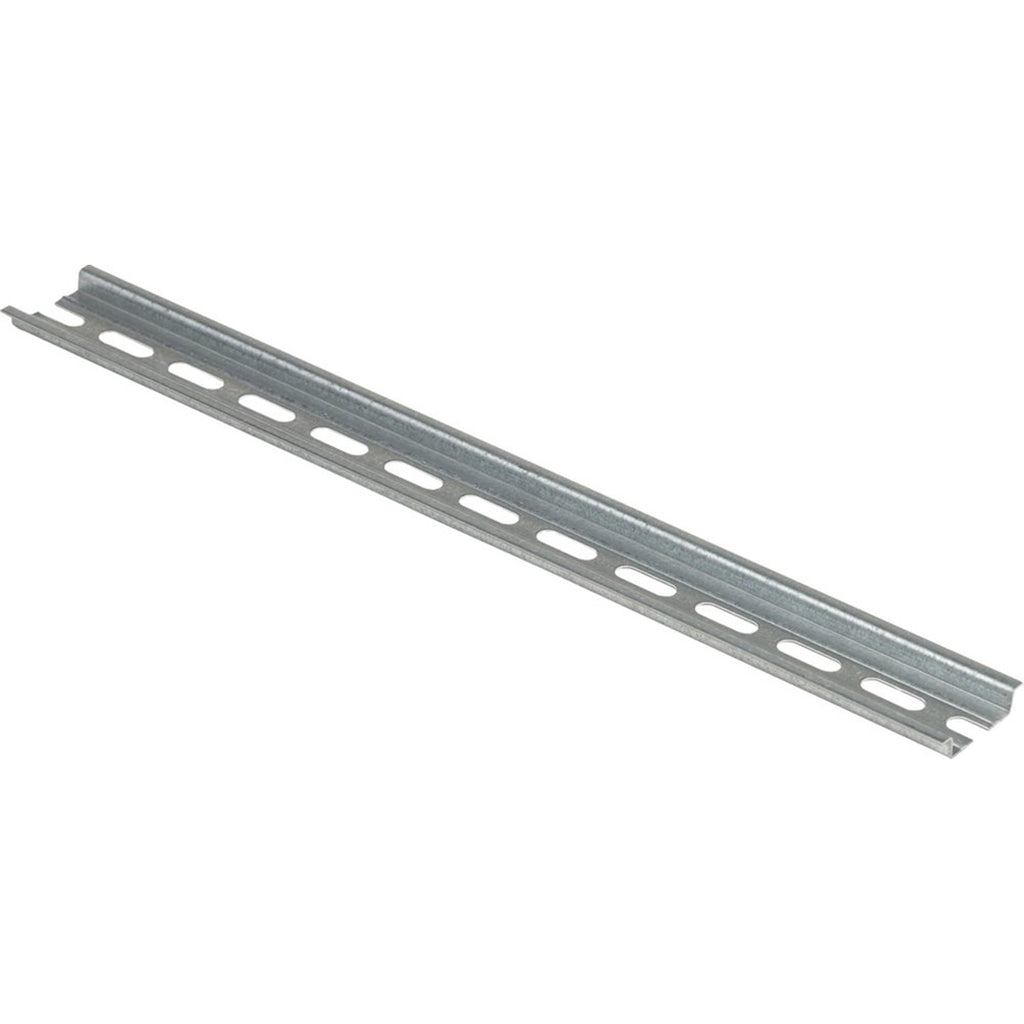

9080MH379 - Schneider Electric - Square D Mounting Track Linergy
Linergy mounting track is designed to make the mounting of products in a panel easy. This 35 mm DIN3 mounting track is designed to accept most products that mount on 35 mm track. The track is prepunched with oblong slots to make mounting the track to the panel easier. This mounting track is 35 mm wide, 7.5 mm high and 2000 mm long. This track is made of galvanized steel.
GENERAL SPECIFICATIONS
Main
| Range |
9080G |
| Product |
DIN rail |
| Quantity per Set |
Set of 10 |
Complementary
| Material |
Galvanized steel |
| Height |
0.3 in (7.6 mm) |
| Width |
1.38 in (35.05 mm) |
| Length |
78.74 in (2000.00 mm) |
Ordering and shipping details
| Category |
US10CP521716 |
| Discount Schedule |
0CP5 |
| GTIN |
785901025290 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.80 in (7.112 cm) |
| Package 1 Width |
2.80 in (7.112 cm) |
| Package 1 Length |
79.30 in (201.422 cm) |
| Package 1 Weight |
21.120 oz (598.741 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
340 |
| Package 2 Height |
6.00 in (15.240 cm) |
| Package 2 Width |
42.00 in (106.680 cm) |
| Package 2 Length |
96.00 in (243.840 cm) |
| Package 2 Weight |
550.799 lb(US) (249.838 kg) |
PRODUCT DATASHEET
9080MH379_Product Datasheet
