9080MHA10 - Schneider Electric - Square D NEMA Sectional Terminal Block

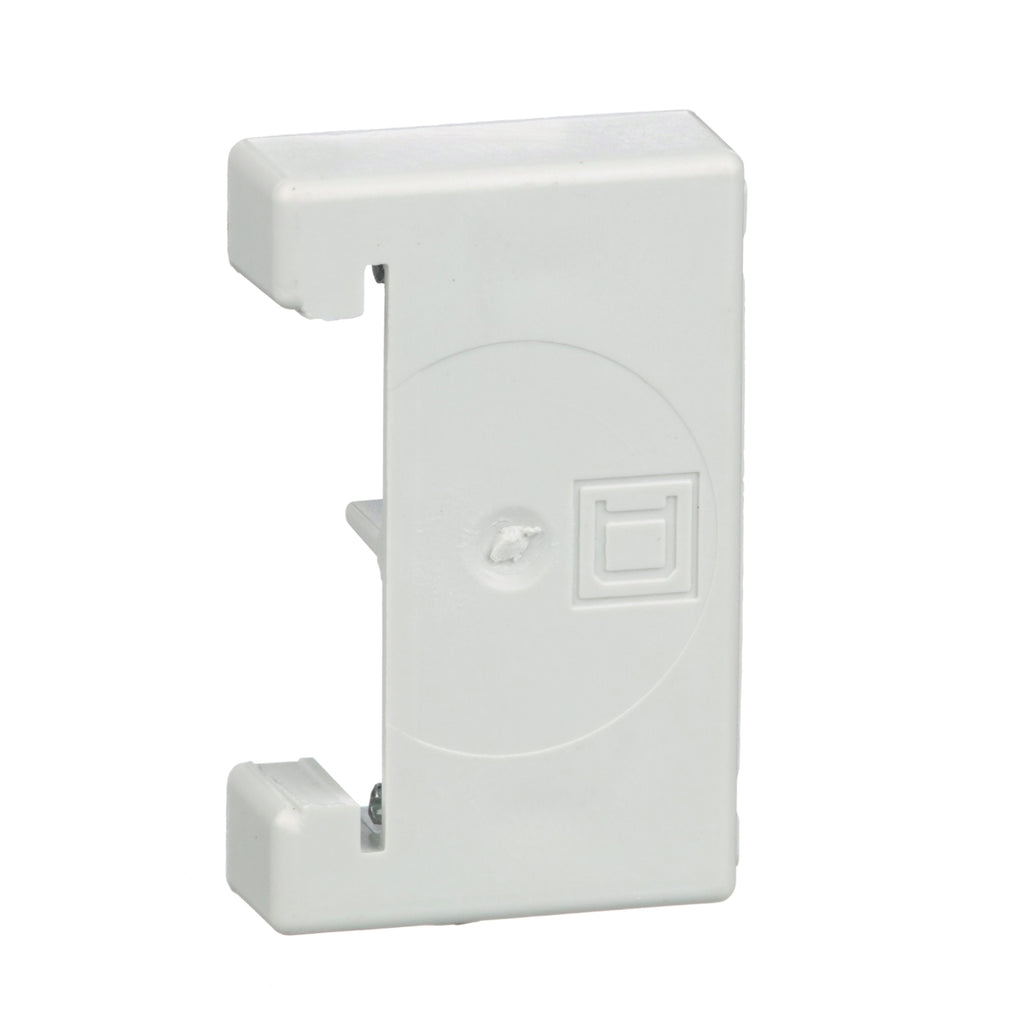

Linergy accessories round out the Linergy terminal block line. This end clamp is used to hold terminal blocks tightly together on 9080MH mounting track. One end clamp is to be used on each end of a terminal block assembly. This end clamp is held in place by tightening the two mounting screws.
GENERAL SPECIFICATIONS
Main
| Range |
9080G |
| Product |
End Clamp |
| Fixing Mode |
Screw-on |
| Quantity per Set |
Set of 50 |
Complementary
| Material |
Polycarbonate |
| Height |
1.13 in (28.70 mm) |
| Width |
1.8 in (45.7 mm) |
| Depth |
0.4 in (10.2 mm) |
Ordering and shipping details
| Category |
US10CP521716 |
| Discount Schedule |
0CP5 |
| GTIN |
785901744030 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.1 in (2.8 cm) |
| Package 1 Width |
0.4 in (1.0 cm) |
| Package 1 Length |
1.8 in (4.6 cm) |
| Package 1 Weight |
0.3 oz (9.1 g) |
