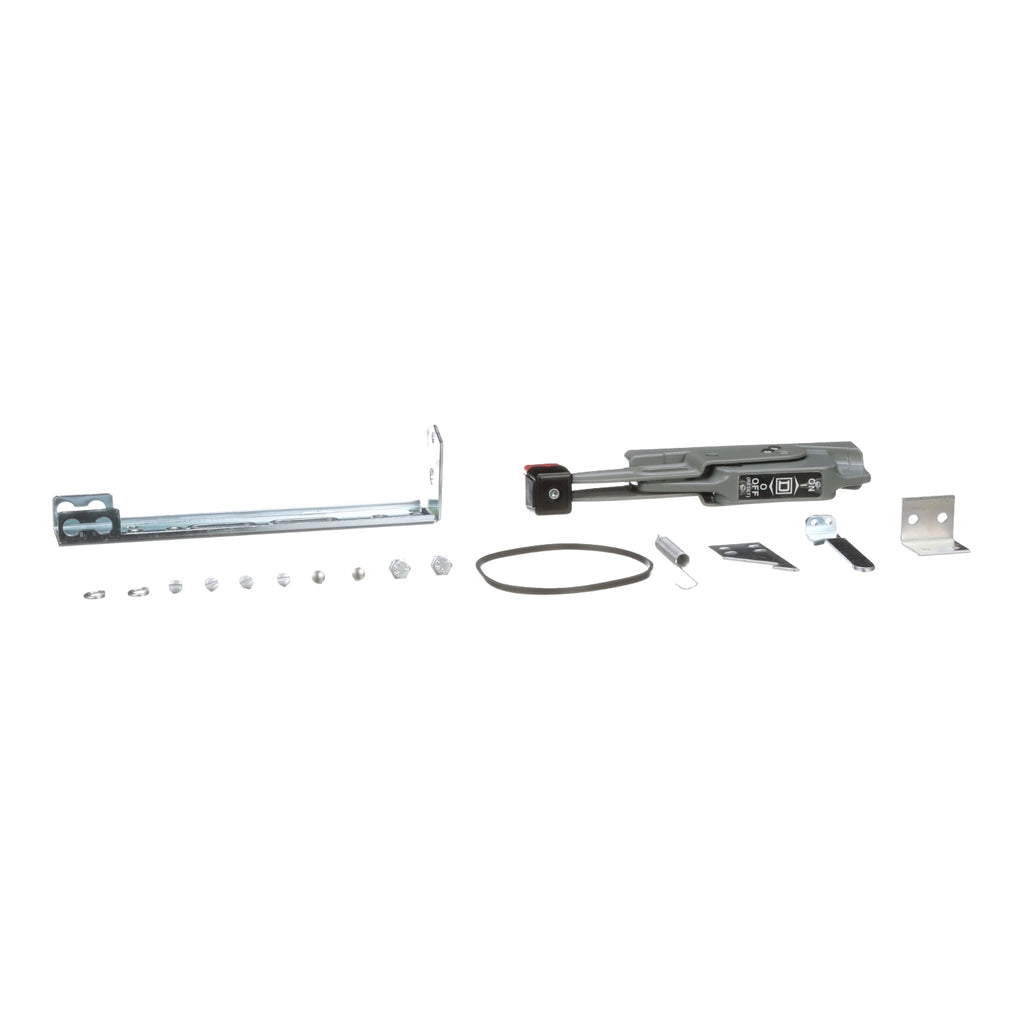

9422A1 - Schneider Electric - Square D Operating Mechanism Flange Mounted Variable Depth Handle Mechanism 6in Handle NEMA 1 3R 4 12 Enclosure
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.
GENERAL SPECIFICATIONS
Main
| Product |
Handle Mechanism |
| For Use With |
Disconnect switches (30...200 A)
All circuit breaker mechanisms |
Complementary
| Product Type |
Variable depth |
| Product destination |
all circuit breaker mechanisms
disconnect switches (30...200 A) |
| Enclosure Types |
NEMA 1/3/3R/4/12 enclosures |
| Handle Length |
6 in (152.4 mm) |
| Net Weight |
2.78 lb(US) (1.26 kg) |
Ordering and shipping details
| Category |
US10CP121732 |
| Discount Schedule |
0CP1 |
| GTIN |
785901739739 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.80 in (4.572 cm) |
| Package 1 Width |
3.80 in (9.652 cm) |
| Package 1 Length |
9.40 in (23.876 cm) |
| Package 1 Weight |
2.749 lb(US) (1.247 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
300 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
839.999 lb(US) (381.017 kg) |
