9991SCG8 - Schneider Electric - Square D Motor Control Parts

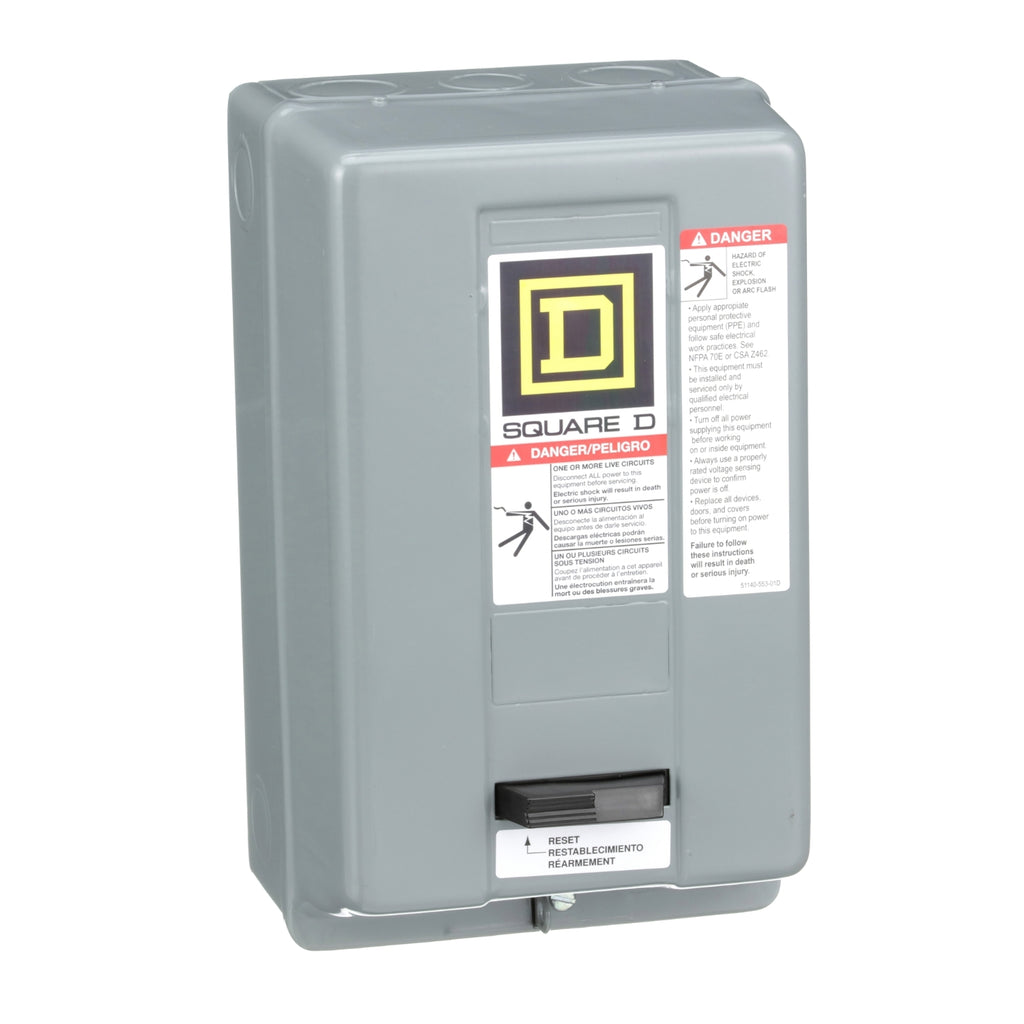

Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 00, 0 or 1. This NEMA 1 sheet steel enclosure is painted grey. Knockouts in the cover of this enclosure provide for field addition of Class 9999 rectangular cover mounted control units. Three number 10 screws are used to mount this enclosure. Enclosure is 10.00 inches tall, 5.98 inches wide and 5.56 inches deep. This enclosure is CSA certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Enclosure |
|---|
| NEMA size | 00 0 1 |
|---|---|
| Height | 10 in (254 mm) |
| Width | 6.0 in (152 mm) |
| Depth | 5.6 in (141 mm) |
| Category | US10CP121742 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901759072 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.9 in (15.0 cm) |
| Package 1 Width | 6.4 in (16.3 cm) |
| Package 1 Length | 11.6 in (29.5 cm) |
| Package 1 Weight | 3.59 lb(US) (1.63 kg) |
PRODUCT DATASHEET
Schneider Electric_NEMA-Type-S-Motor-Starters-8536-8736-8606_9991SCG8
