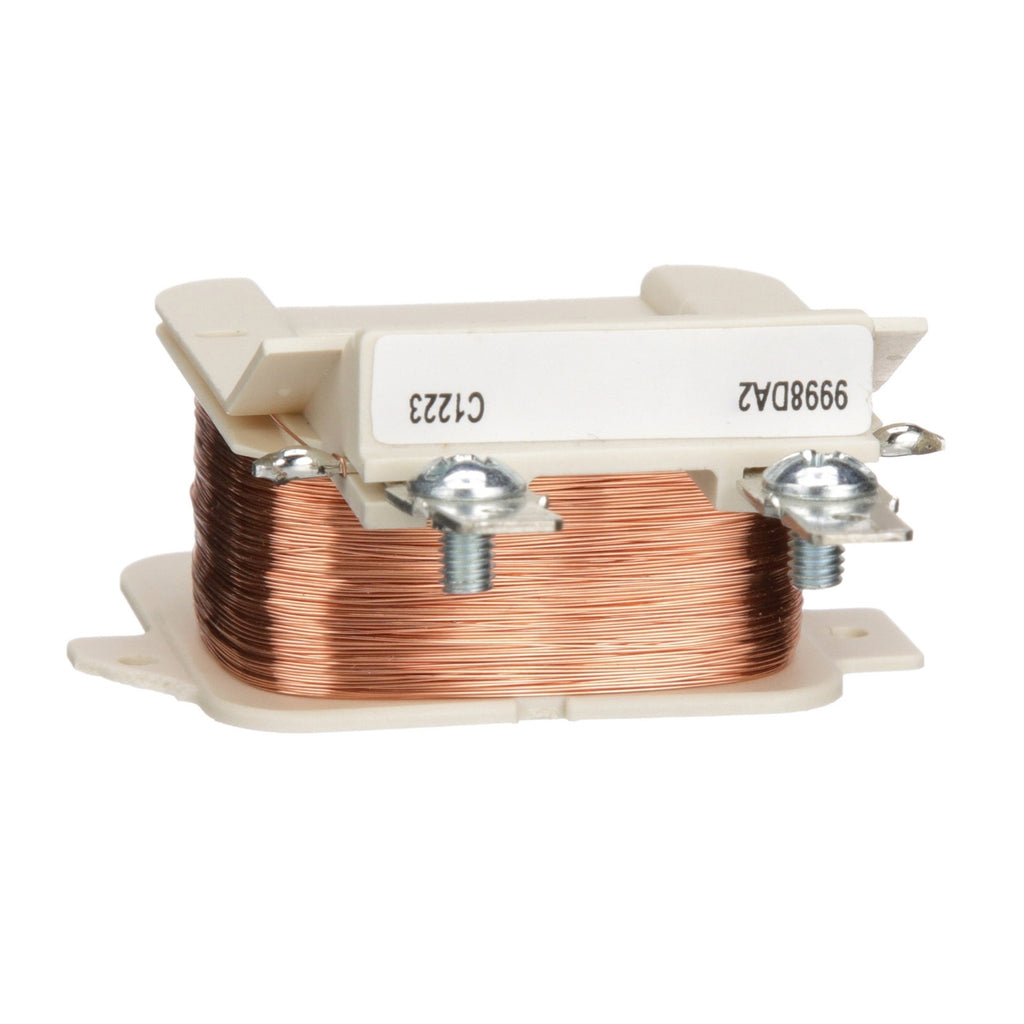

9998DA2V09 - Schneider Electric - 240 V Square D Magnetic Coil
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 208/240 VAC 60 Hz and 220 VAC 50 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
8910DPA contactor |
Complementary
| [Ue] rated operational voltage |
208/240 V AC 60 Hz
220 V AC 50 Hz |
| Inrush power in VA |
109 VA |
| Average consumption |
10 VA |
| Height |
3.27 in (83.06 mm) |
| Width |
2.56 in (65.02 mm) |
| Depth |
3.67 in (93.22 mm) |
Ordering and shipping details
| Category |
US1CP1B21752 |
| Discount Schedule |
CP1B |
| GTIN |
785901081456 |
| Returnability |
Yes |
| Country of origin |
CN |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.70 in (4.318 cm) |
| Package 1 Width |
2.60 in (6.604 cm) |
| Package 1 Length |
3.50 in (8.890 cm) |
| Package 1 Weight |
2.720 oz (77.111 g) |
PRODUCT DATASHEET
9998DA2V09_Product Datasheet
