Description

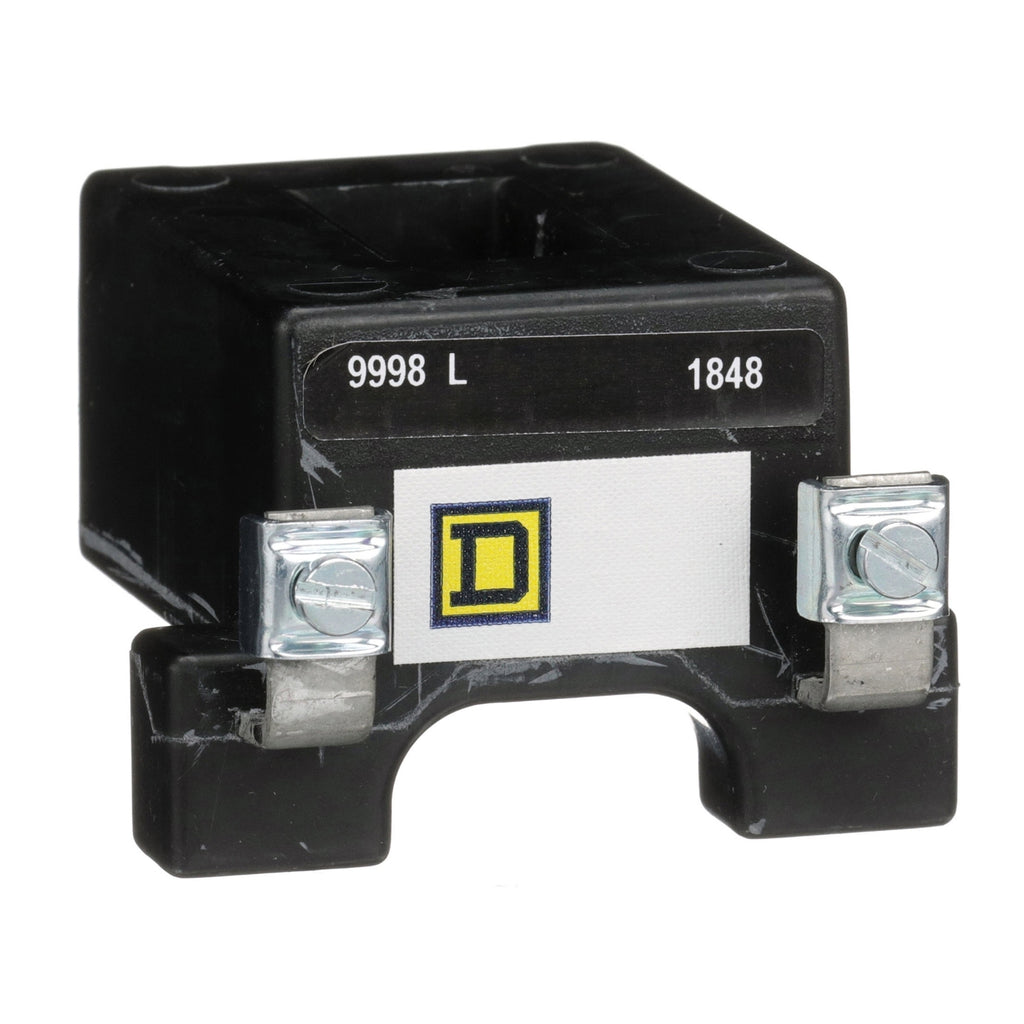

9998L44 - Schneider Electric - 120 V Square D Magnetic Coil
8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 150 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Product or Component Type | Coil |
|---|---|
| Accessory / separate part destination | Class 8903 contactor |
| [Ue] rated operational voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
|---|---|
| Inrush power in VA | 150 VA 140 VA |
| Average consumption | 30 VA |
| Height | 2.4 in (60.5 mm) |
| Width | 2.1 in (53.6 mm) |
| Depth | 1.5 in (37.1 mm) |
| Category | US1CP1021756 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901081210 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.10 in (5.334 cm) |
| Package 1 Width | 2.80 in (7.112 cm) |
| Package 1 Length | 3.30 in (8.382 cm) |
| Package 1 Weight | 5.600 oz (158.757 g) |
