9998L55 - Schneider Electric - 277 V Square D Magnetic Coil

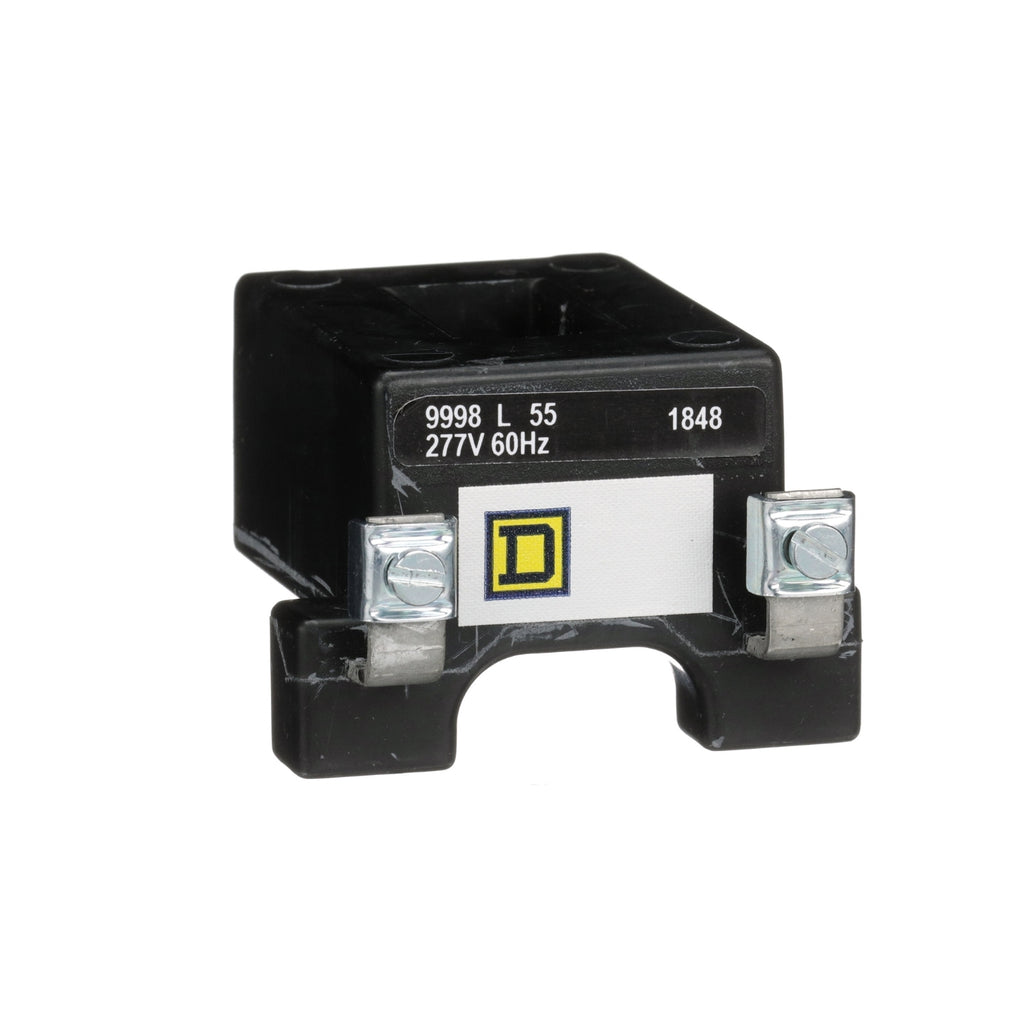

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors. The coil is rated for 277 VAC 60 Hz. The inrush power of this coil is 150 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
Class 8903 contactor |
Complementary
| [Ue] rated operational voltage |
277 V AC 60 Hz |
| Inrush power in VA |
150 VA |
| Average consumption |
30 VA |
| Height |
2.4 in (60.5 mm) |
| Width |
2.1 in (53.6 mm) |
| Depth |
1.5 in (37.1 mm) |
Ordering and shipping details
| Category |
US1CP1021756 |
| Discount Schedule |
CP10 |
| GTIN |
785901081241 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.10 in (5.334 cm) |
| Package 1 Width |
2.80 in (7.112 cm) |
| Package 1 Length |
3.40 in (8.636 cm) |
| Package 1 Weight |
5.440 oz (154.221 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
25 |
| Package 2 Height |
5.70 in (14.478 cm) |
| Package 2 Width |
11.70 in (29.718 cm) |
| Package 2 Length |
15.70 in (39.878 cm) |
| Package 2 Weight |
9.200 lb(US) (4.173 kg) |
