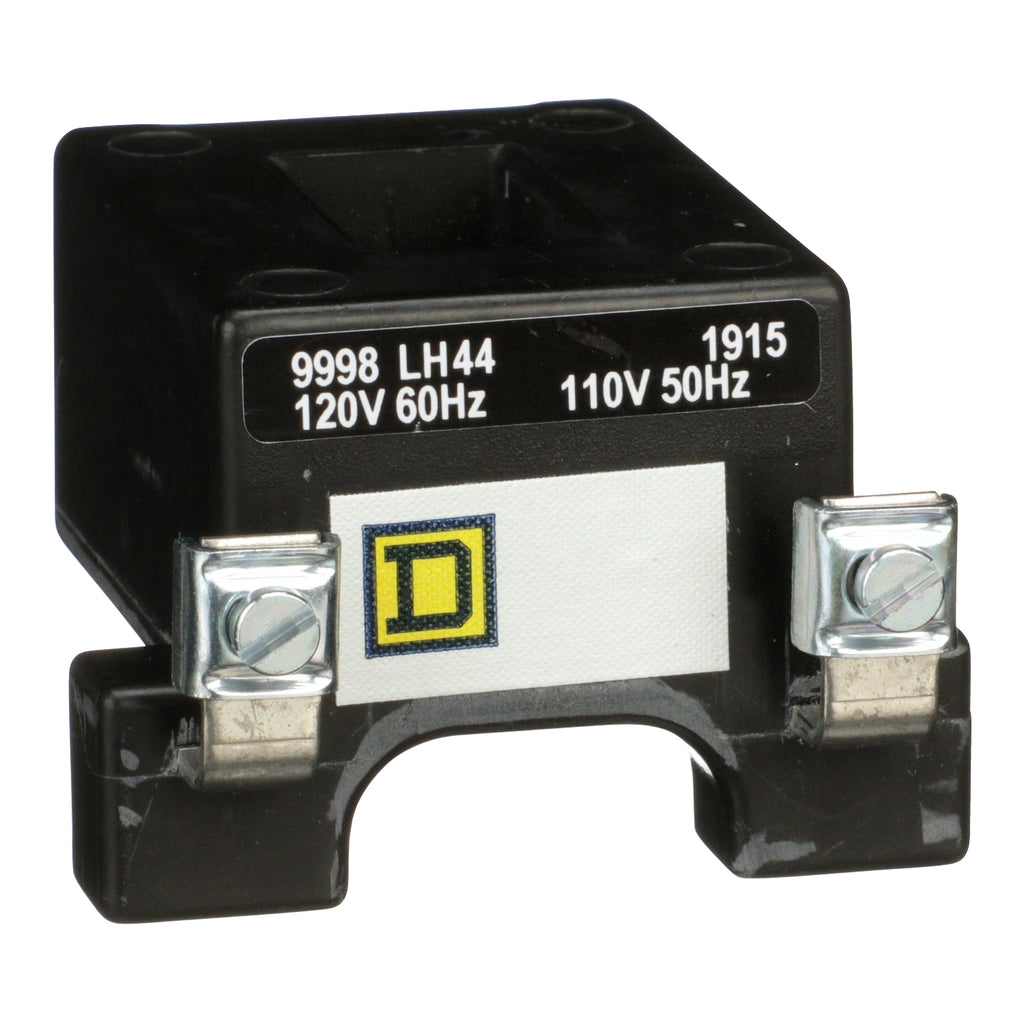

9998LH44 - Schneider Electric - Square D Magnetic Coil
8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
Class 8903 contactor |
Complementary
| [Ue] rated operational voltage |
120 V AC 60 Hz
110 V AC 50 Hz |
| Inrush power in VA |
170 VA
180 VA |
| Average consumption |
35 VA |
| Height |
2.4 in (60.5 mm) |
| Width |
2.1 in (53.6 mm) |
| Depth |
1.5 in (37.1 mm) |
Ordering and shipping details
| Category |
US1CP1021756 |
| Discount Schedule |
CP10 |
| GTIN |
785901081289 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.20 in (5.588 cm) |
| Package 1 Width |
2.70 in (6.858 cm) |
| Package 1 Length |
3.40 in (8.636 cm) |
| Package 1 Weight |
5.760 oz (163.293 g) |
PRODUCT DATASHEET
9998LH44_Product Datasheet
