9998LX44 - Schneider Electric - Square D Type L Contactor

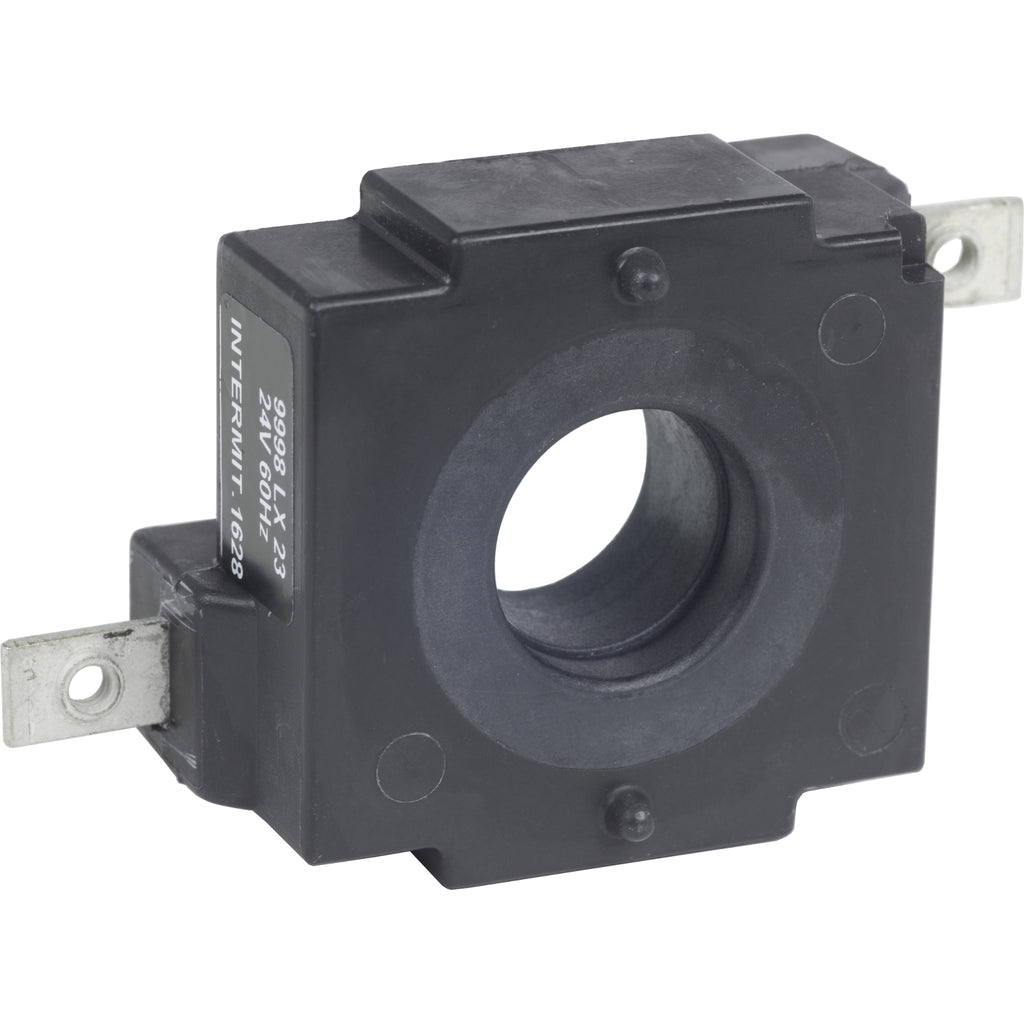

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 LX mechanically held lighting contactor. By changing out the coil, the unlatch of the lighting contactor can be a different voltage. This will also save the cost of a whole new contactor if the coil were to fail. This unlatch coil is used in any 8903LX mechanically held lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 25 VA. This coil has a height of 1.75 inches, a width of 2.46 inches and a depth of 1.13 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
Class 8903 contactor |
Complementary
| [Ue] rated operational voltage |
120 V AC 60 Hz
110 V AC 50 Hz |
| Inrush power in VA |
180 VA |
| Height |
1.8 in (44.5 mm) |
| Width |
2.5 in (62.5 mm) |
| Depth |
1.1 in (28.7 mm) |
Ordering and shipping details
| Category |
US1CP1021756 |
| Discount Schedule |
CP10 |
| GTIN |
785901057727 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.40 in (3.556 cm) |
| Package 1 Width |
2.20 in (5.588 cm) |
| Package 1 Length |
3.10 in (7.874 cm) |
| Package 1 Weight |
3.840 oz (108.862 g) |
