9998SAC45 - Schneider Electric - Square D Type S NEMA Contactor and NEMA Motor Starter

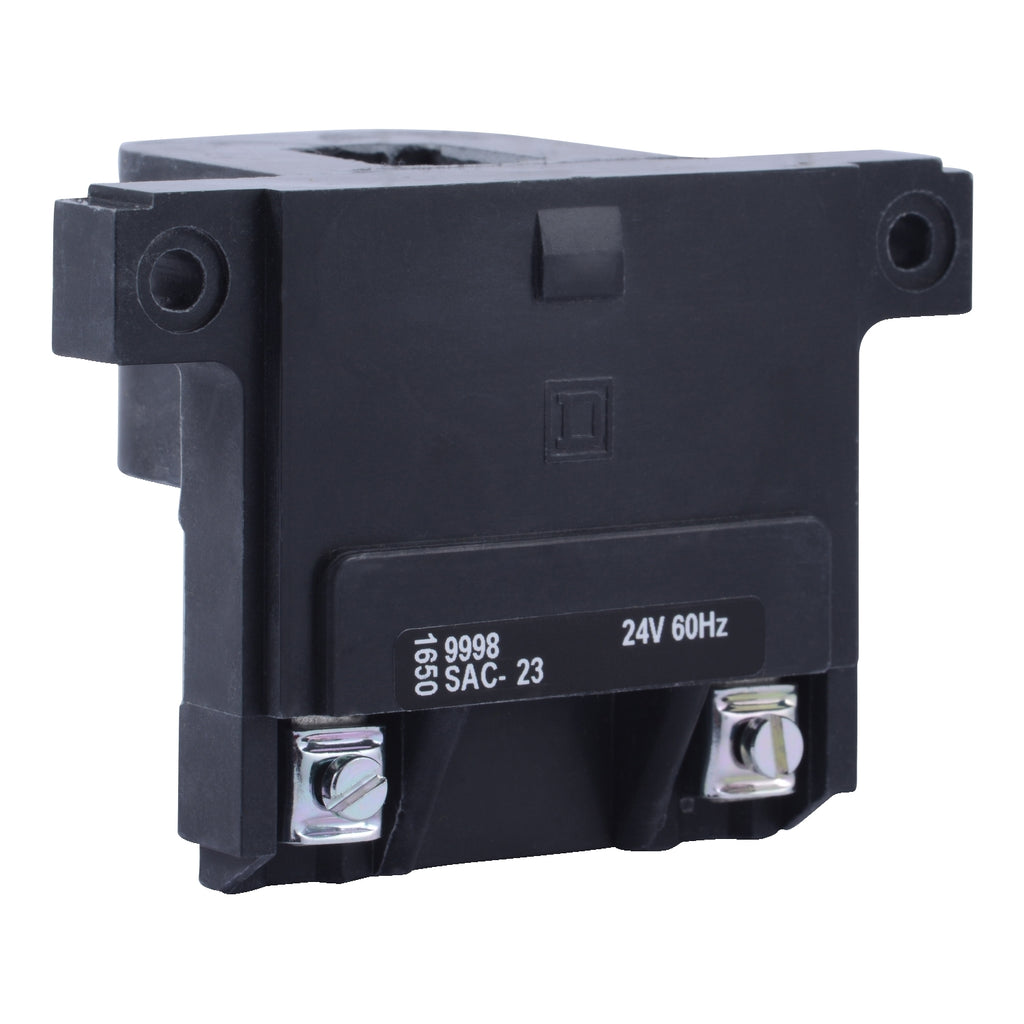

Type S nonreversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S non-reversing magnetic NEMA motor starters are for motor control applications. The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8502SA NEMA contactor or 8635SA NEMA motor starter. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 165 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.15 inches, a width of 3.21 inches and a depth of 2.21 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Coil |
| Accessory / separate part destination |
Class 8536 type S starter |
Complementary
| NEMA size |
00 |
| Series name |
B |
| [Ue] rated operational voltage |
120 V AC 60 Hz
110 V AC 50 Hz |
| Inrush power in VA |
165 VA |
| Average consumption |
33 VA |
| Height |
2.2 in (54.7 mm) |
| Width |
3.2 in (81.5 mm) |
| Depth |
2.2 in (56.2 mm) |
Ordering and shipping details
| Category |
US1CP1021756 |
| Discount Schedule |
CP10 |
| GTIN |
785901770992 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.10 in (5.334 cm) |
| Package 1 Width |
2.80 in (7.112 cm) |
| Package 1 Length |
3.30 in (8.382 cm) |
| Package 1 Weight |
7.040 oz (199.581 g) |
