9998SL3 - Schneider Electric - 27 Amp Pole 600 Volt Square D Contact Kit

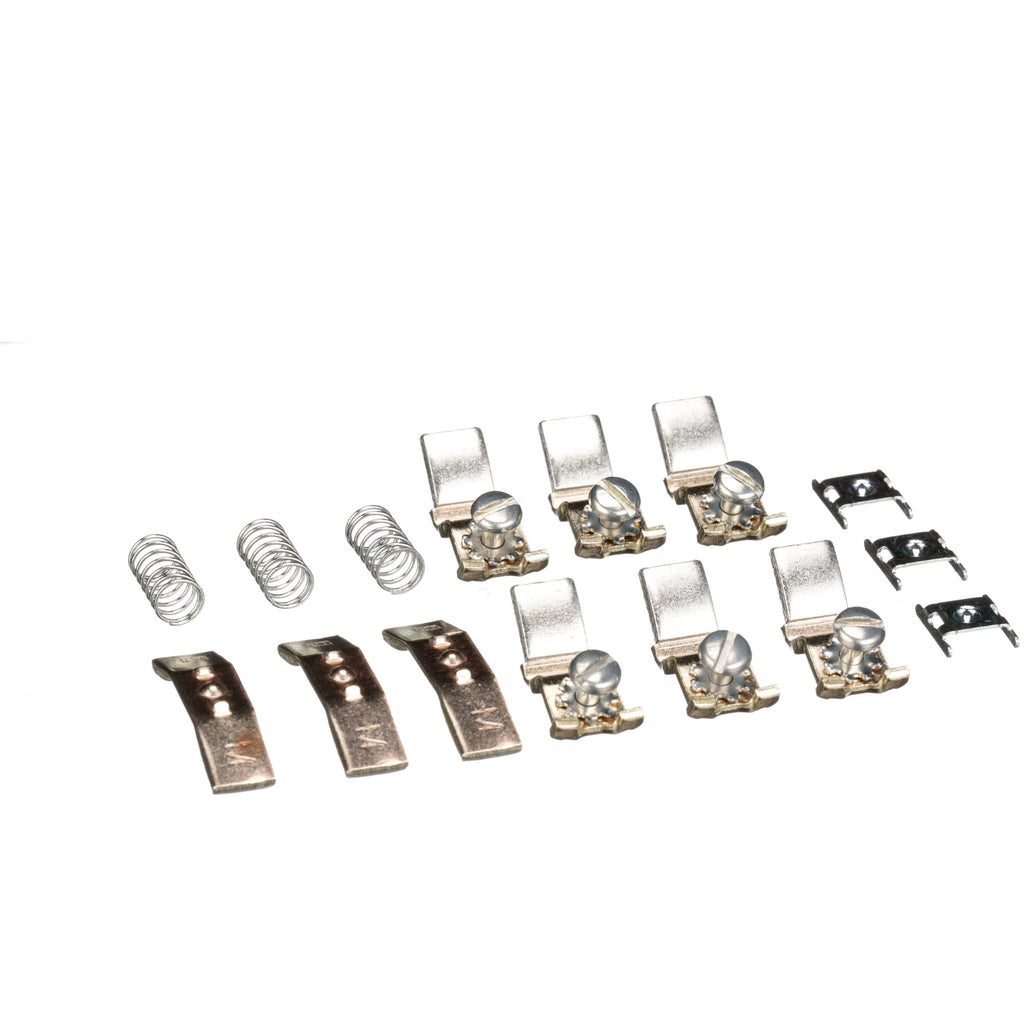

Type S magnetic contactors and starters are for motor control applications. 8903S lighting contactors are for lighting control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 1 contactor or starters or 30A lighting contactor. This replacement contact kit is for 3 pole 8502SC contactors, 8536SC starters and 8903SM lighting contactors. Kit includes the movable and stationary contacts and needed hardware for 3 poles.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Contact kit |
| Accessory / separate part destination |
Class 8536 type S starter
Class 8903 contactor |
Complementary
| NEMA size |
1P
1 |
| Number of poles |
3 |
| Height |
1.5 in (38.1 mm) |
| Width |
3 in (76.2 mm) |
| Depth |
4.5 in (114.3 mm) |
| Net Weight |
0.18 lb(US) (0.08 kg) |
Ordering and shipping details
| Category |
US1CP1021756 |
| Discount Schedule |
CP10 |
| GTIN |
785901867227 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.60 in (4.064 cm) |
| Package 1 Width |
3.10 in (7.874 cm) |
| Package 1 Length |
4.70 in (11.938 cm) |
| Package 1 Weight |
2.880 oz (81.647 g) |
PRODUCT DATASHEET
9998SL3_Product Datasheet
