Description
9998X44 - Schneider Electric - Square D NEMA Control Relay

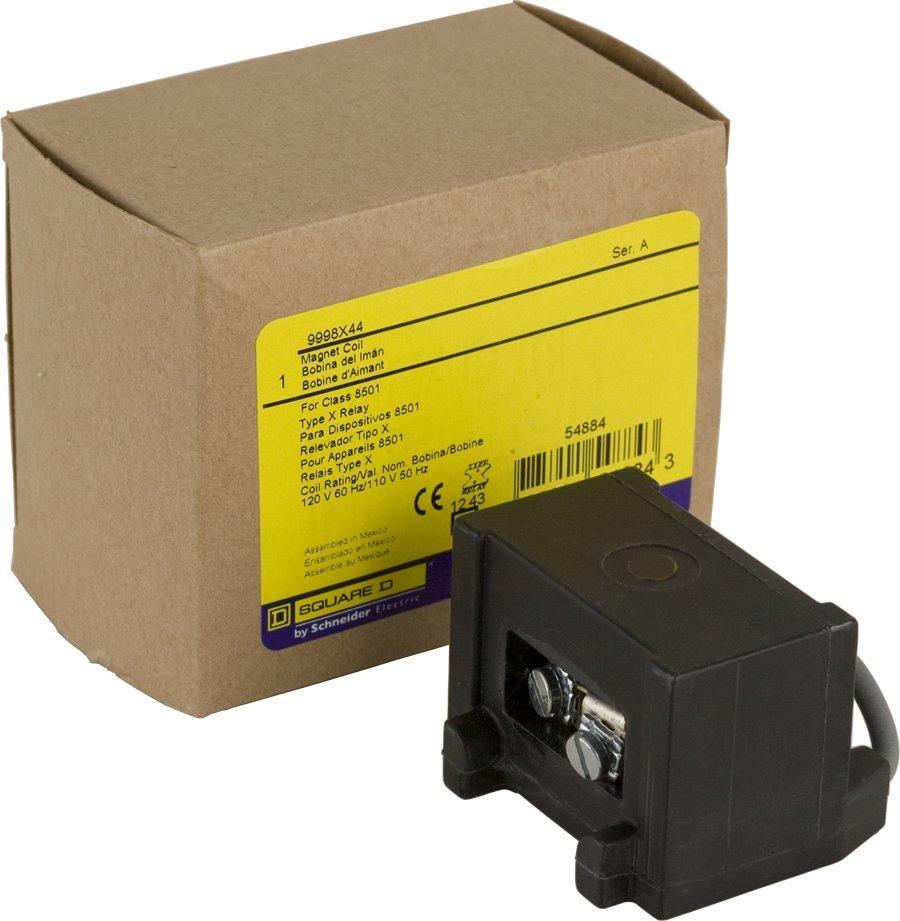

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This 8501X relay replaceable coil is used in 110/120 VAC 50/60 Hz control circuits. The inrush power of this coil is 148 VA. It has an average sealed consumption of 23 VA. This coil has a height of 1.44 inches, a width of 1.98 inches and a depth of 4.25 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
GENERAL SPECIFICATIONS
| Range of Product | 8501X |
|---|---|
| Relay Type | Control relay |
| Product or Component Type | Coil |
| [Uc] control circuit voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
|---|---|
| Coil Voltage Limits | Operational 0.85...1.1 Uc AC 50/60 Hz |
| Coil Inrush Power | 148 VA 60 Hz 143 VA 50 Hz |
| Coil Sealed Power | 23 VA 60 Hz 25 VA 50 Hz |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 18...AWG 12 copper |
| Terminal Tightening Torque | Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals |
| Height | 1.44 in (36.58 mm) |
| Width | 1.98 in (50.29 mm) |
| Depth | 4.25 in (107.95 mm) |
| Category | US1CP1021756 |
|---|---|
| Discount Schedule | CP10 |
| GTIN | 785901548843 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.89 in (22.581 cm) |
| Package 1 Width | 3.50 in (8.89 cm) |
| Package 1 Length | 22.58 in (57.355 cm) |
| Package 1 Weight | 5.600 oz (158.757 g) |
