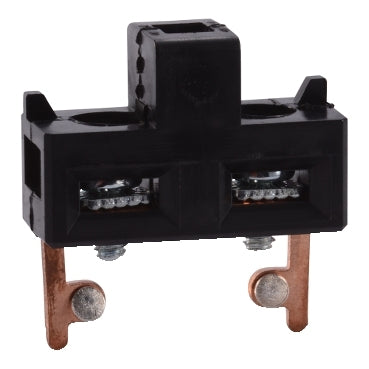

Motor Logic solid state overload relays are designed to protect 50/60 Hz, 3 phase AC motors from overload, phase unbalance, and phase loss conditions. Motor Logic overload relays use this isolation alarm contact. This alarm contact can be 1 normally open or 1 normally closed contact that will close when the motor logic overload relay is tripped. This can be used to send an alarm signal. The contact is field convertible. The contact is 600 volt rated. Kit is UL Listed.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Accessory |
| Product destination |
Overload relay |
| Thermal overload type |
Solid state |
Complementary
| Product or Component Type |
Auxiliary contact |
| Contacts type and composition |
1 NO |
| [Ue] rated operational voltage |
600 V AC |
Ordering and shipping details
| Category |
US10CP121761 |
| Discount Schedule |
0CP1 |
| GTIN |
785901070719 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.300 in (3.302 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
3.100 in (7.874 cm) |
| Package weight(Lbs) |
0.800 oz (22.680 g) |
PRODUCT DATASHEET
9999AC04
