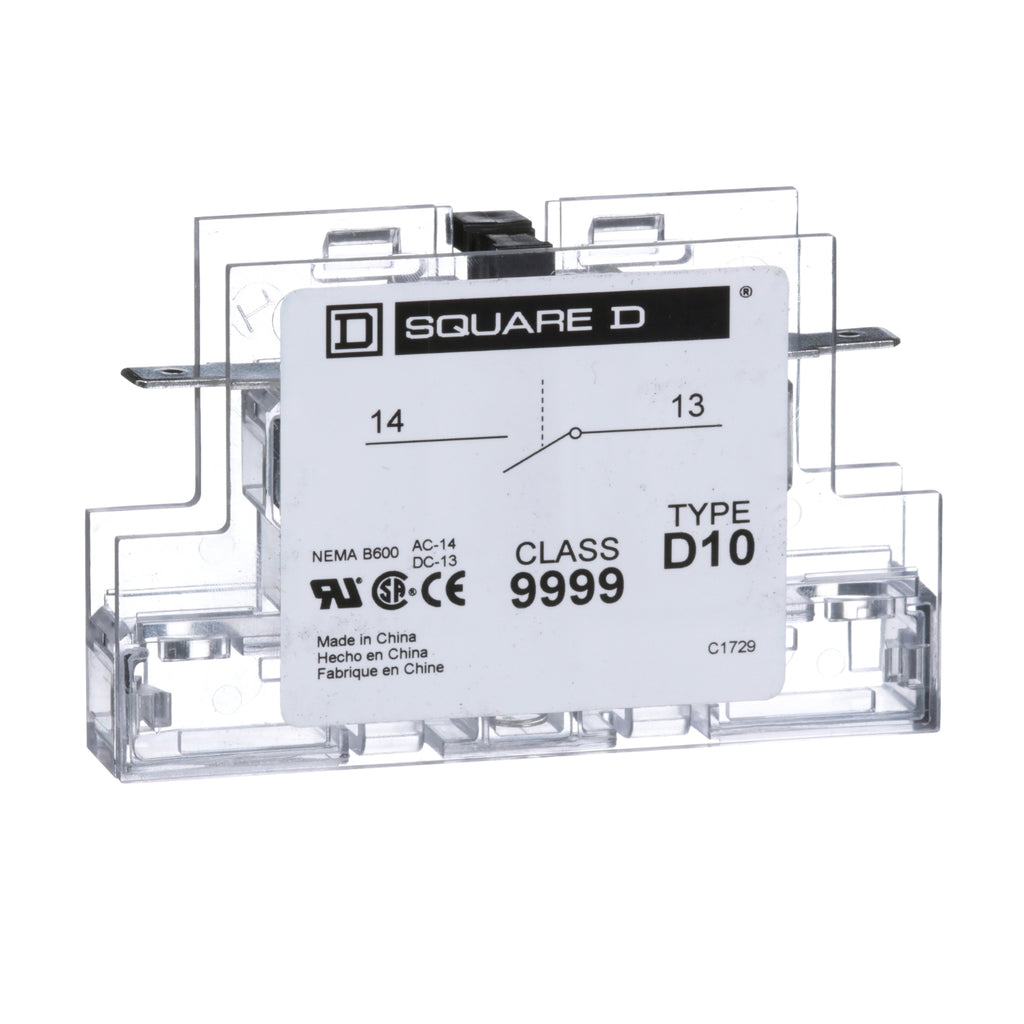

9999D10 - Schneider Electric - Square D Contactor And Motor Starter Auxiliary
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally open contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | DPA |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor |
| Auxiliary contact composition | 1 NO |
|---|---|
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.75 A 480 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A <= 600 V AC resistive control circuit UL 508 |
| Product Certifications | CSA UL Recognized |
|---|
| Category | US1CP1B21762 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080862 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.70 in (1.778 cm) |
| Package 1 Width | 1.70 in (4.318 cm) |
| Package 1 Length | 2.80 in (7.112 cm) |
| Package 1 Weight | 1.120 oz (31.751 g) |
