Description

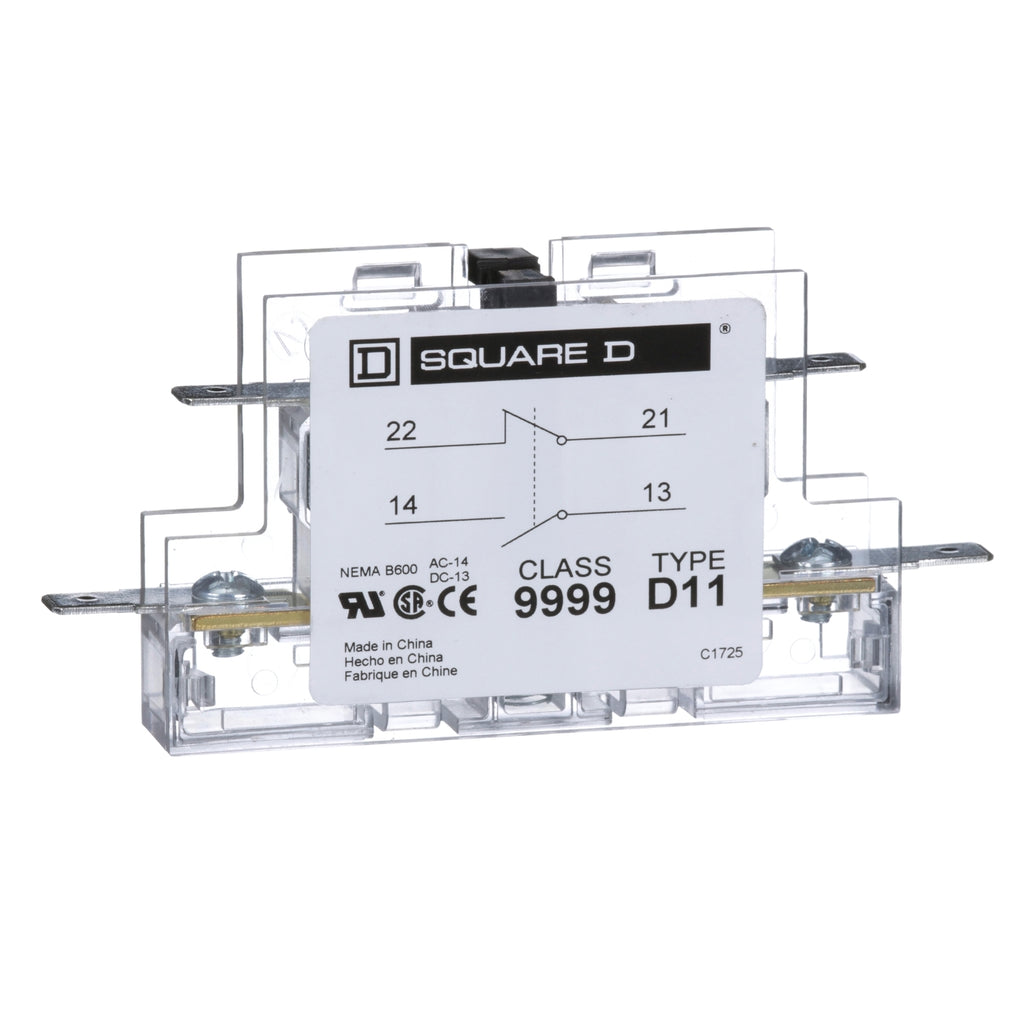

9999D11 - Schneider Electric - Square D Contactor And Motor Starter Auxiliary
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 20A to 90A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | DPA |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor |
| Auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.75 A 480 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A <= 600 V AC resistive control circuit UL 508 |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21762 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080886 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.70 in (1.778 cm) |
| Package 1 Width | 1.80 in (4.572 cm) |
| Package 1 Length | 3.70 in (9.398 cm) |
| Package 1 Weight | 1.440 oz (40.823 g) |
