Description
9999SA2 - Schneider Electric - Square D Motor Control Parts

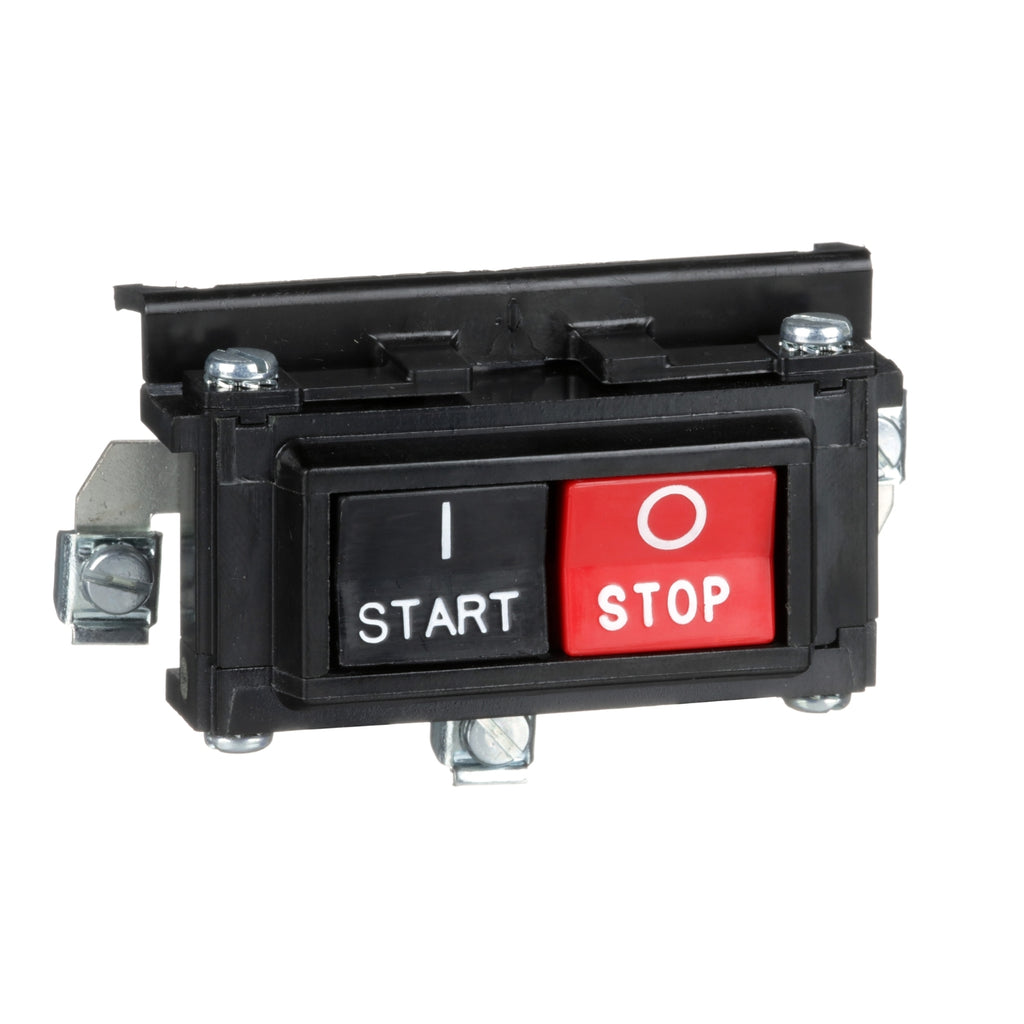

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Push-button |
| Used with | contactor starter |
| NEMA size | 1 00 2 0 3 |
|---|---|
| Marking | START-STOP |
| Mounting Mode | Panel-mounted |
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A 600 V AC resistive control circuit UL 508 |
| Height | 1.02 in (25.8 mm) |
| Width | 2.6 in (65.5 mm) |
| Depth | 24.0000000000 in (609.6 mm) |
| Net Weight | 0.37 lb(US) (0.17 kg) |
| NEMA Degree of Protection | NEMA 1 |
|---|---|
| Product Certifications | CSA UL Listed UL Recognized |
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901867234 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.90 in (4.826 cm) |
| Package 1 Width | 3.90 in (9.906 cm) |
| Package 1 Length | 5.70 in (14.478 cm) |
| Package 1 Weight | 6.080 oz (172.365 g) |
PRODUCT DATASHEET
